Samsung
SKU: AC052BN6PKG/EU

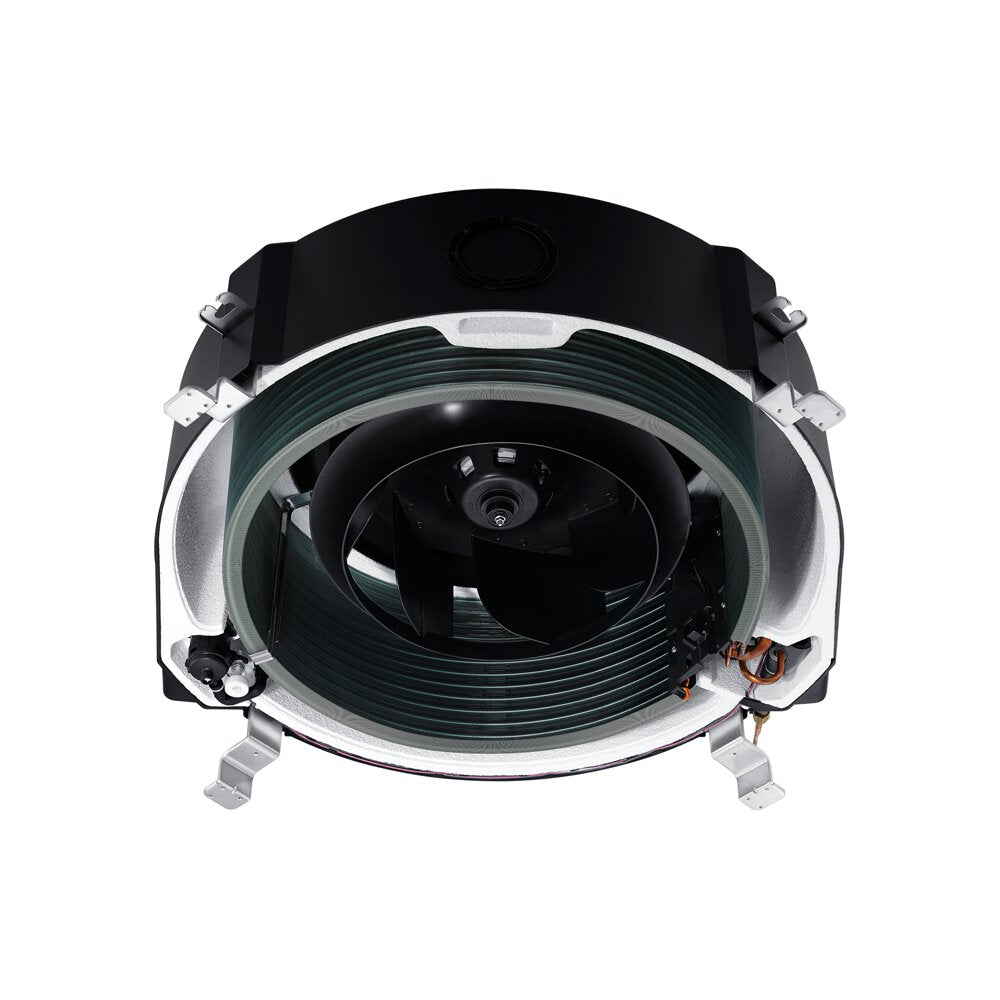

Samsung CAC 5.2kW 360 Cassette R32 High Efficiency Range
Couldn't load pickup availability
360 Degree air supply Bladless discharge from 3 small booster fans Built-in condensation drain pump (750 mmH2O) High ceiling mode for heights up to 4.6m (12.8/14.0kW), 3.9m(11.2kW), 3.5m (4.5~9.0kW) Circular or Square cassette panel Bladeless discharge from three small booster fans Built-in condensation drain pump (750 mmH20) High ceiling mode for heights up to 4.6m (12.8/14.0kW), 3.9m (11.2kW), 3.5m (4.5~9.0kW) Compatible with Samsung Air purification panel & Auto elevation panel WiFi kit (optional) Inverter PBA sel-diagnosis
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
360 Cassette
Type
Indoor
Accessories
Drain Pump
Included
Efficiency
SEER
6.7
SCOP
4.2
Noise rating
Sound (power) (dB(A))
49dB(A)
Sound (pressure) (dB(A))
33dB(A)
Output power
Cooling kW
7.5kW
Heating kW
9.3kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Power supply
Power source
Single phase
Running Current (Amps)
10.8/5.7Amps
Product features
Refrigerant
R32
BMS Ready
Yes
Weights & dimensions
Width (mm)
947mm
Depth (mm)
947mm
Height (mm)
281mm
Pipe size (Liquid (mm))
6.4mm
Pipe size (Gas(mm))
12.7mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Net Weight (kg)
20.2kg
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg
