Samsung
SKU: AE160AXEDGH/EU

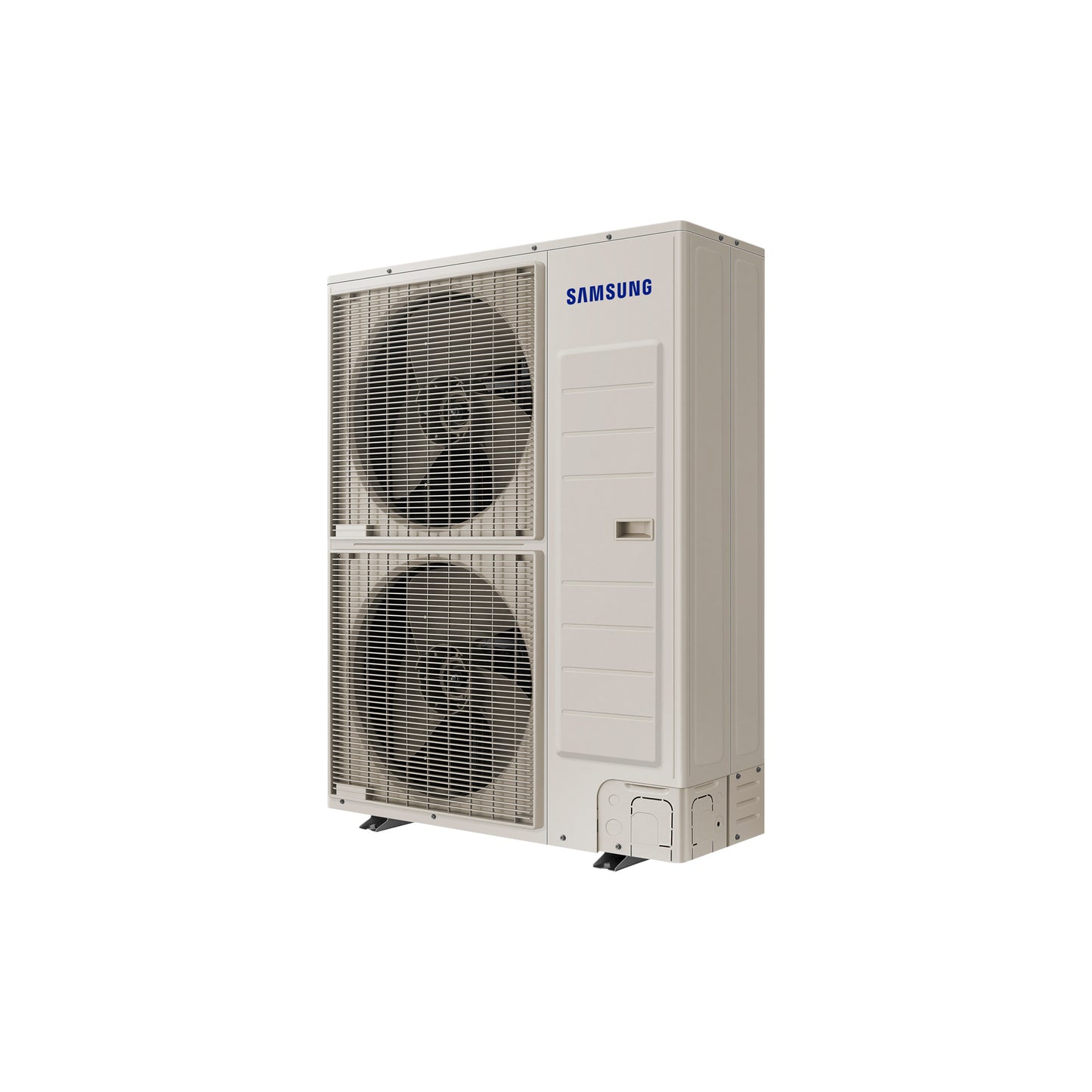

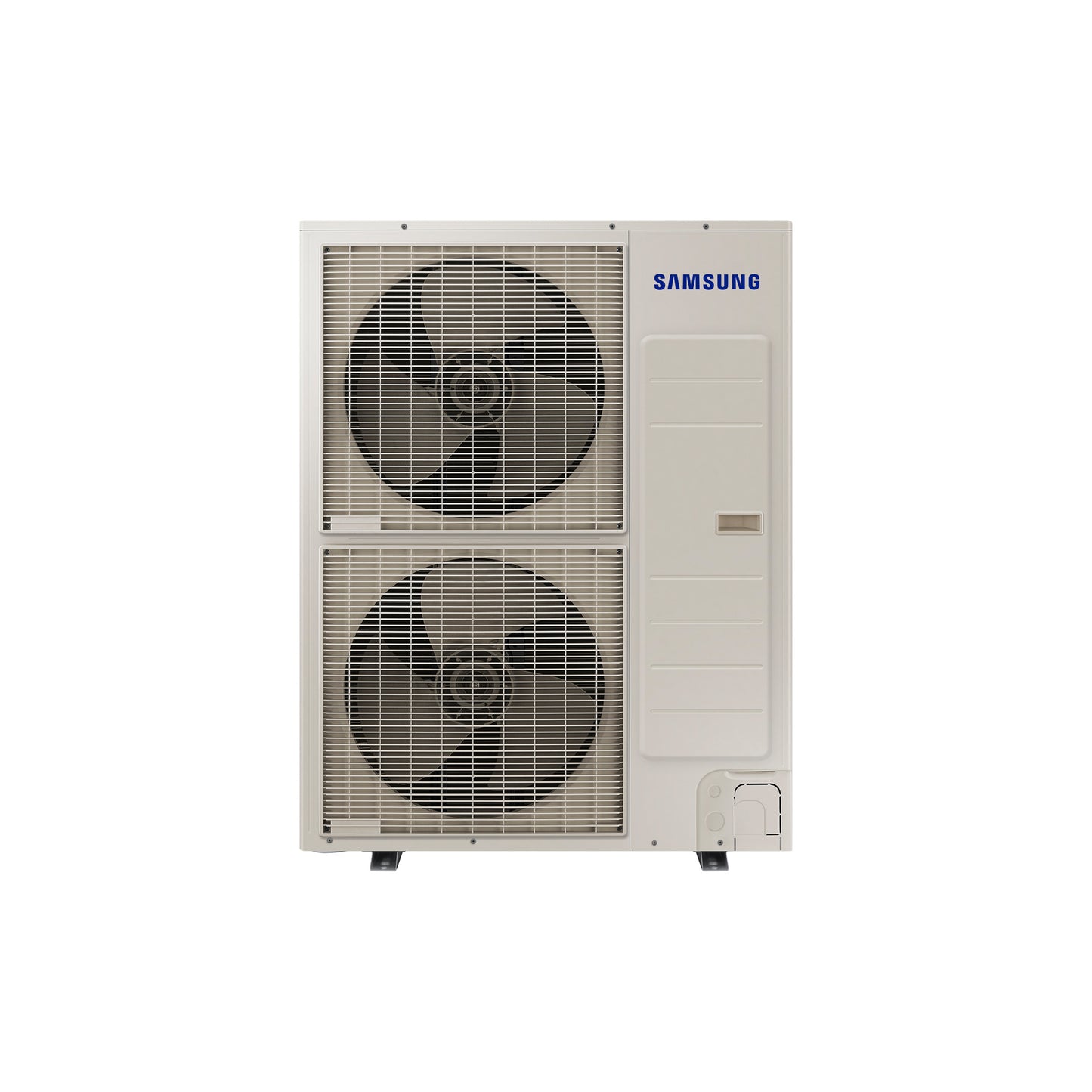

Samsung 16kW Three phase Air to water heat pump SPLIT
Your price
£2,367.88
£2,841.45 inc VAT
Retail price
£2,841.45
Trade price
Log in or open a trade account for exclusive trade discounts and loyalty offers
Couldn't load pickup availability
EHS,16000,WATT,OUTDOOR,SPLIT,HP,3PH,R410A
Technical details
Classification
Brand
Samsung
Clasification
EHS
Category
Split
Type
Outdoor
Accessories
Space Heating Pump Included
No
Central Heating controller
No
Efficiency
SEER
0.0
SCOP
4.5
Noise rating
Sound (power) (dB(A))
69dB(A)
Sound (pressure) (dB(A))
54dB(A)
Output power
Cooling kW
18.6kW
Heating kW
16.0kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Maximum Flow Temperature (°c)
65°c
Maximum Hot Water Temperature (°c)
55°c
Power supply
Power source
Three phase
Fuse Rating (Amps)
16.1Amps
Running Current (Amps)
5.7Amps
Product features
Refrigerant
R410A
BMS Ready
Yes
Weights & dimensions
Width (mm)
940mm
Depth (mm)
330mm
Height (mm)
1420mm
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Net Weight (kg)
99.5kg
Refrigerant Precharge length (m)
15m
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg
