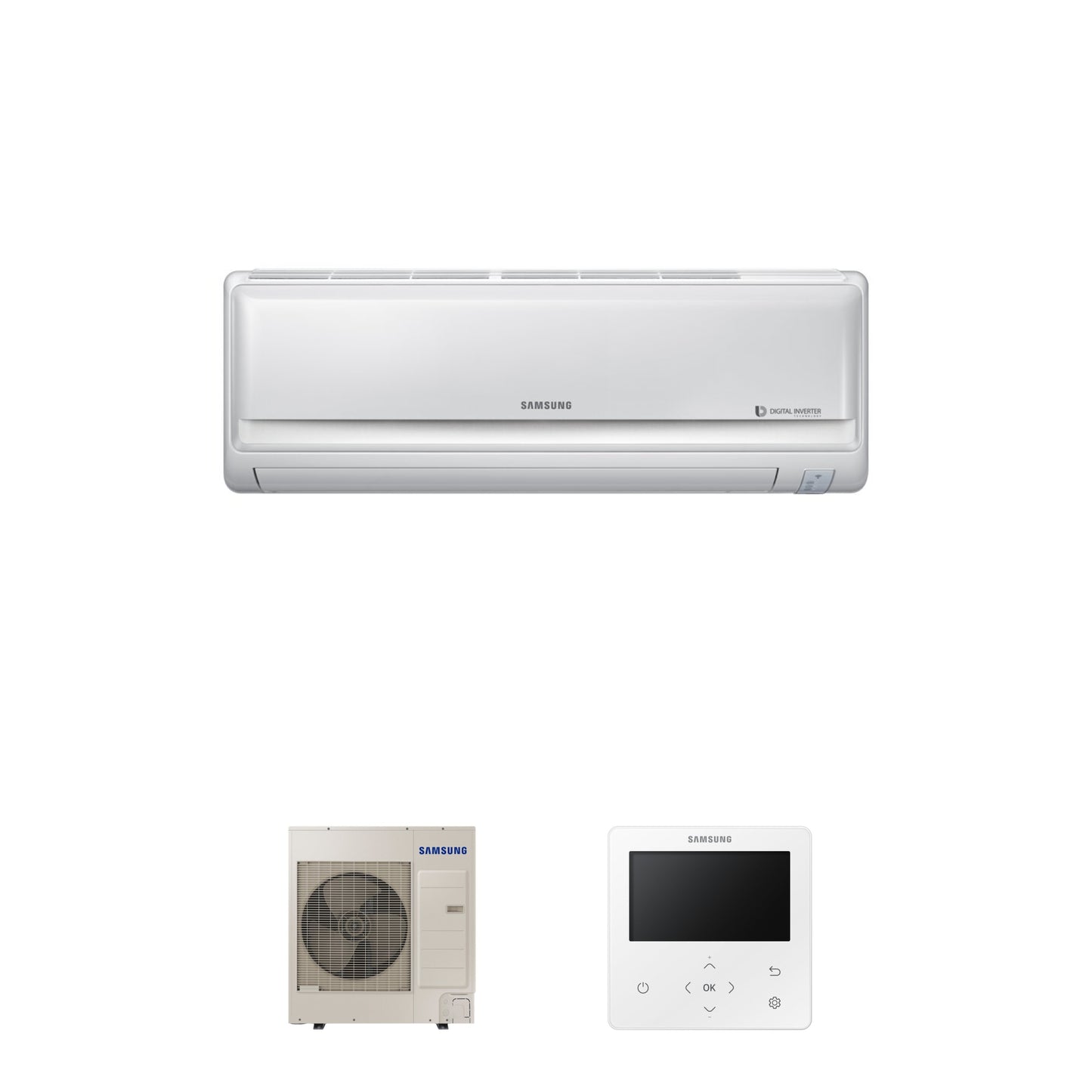

system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
Wall mounted
Accessories
Controller Type

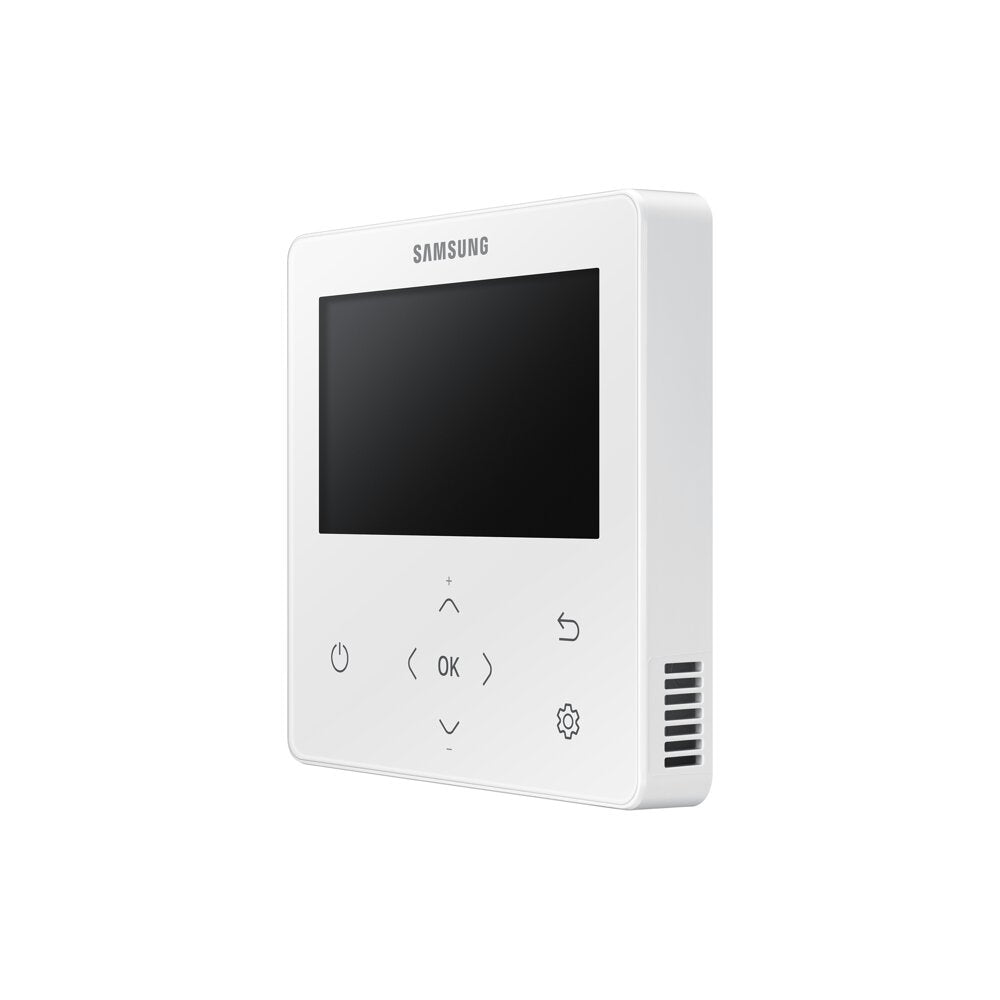

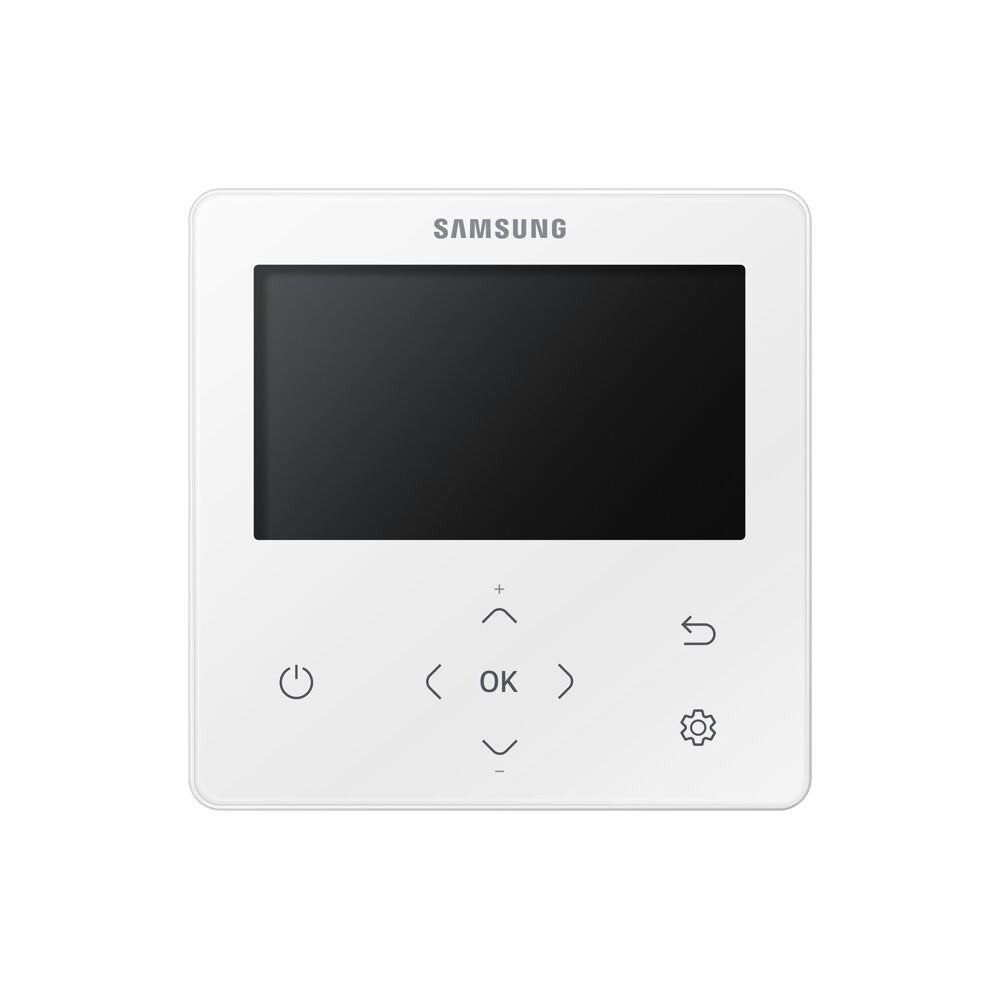

Premium wired
Efficiency
SEER
6.9
SCOP
4.1
Noise rating
Indoor Unit Sound (Power) (dB(A))
65dB(A)
Indoor Unit Sound (Pressure) (dB(A))
49dB(A)
Outdoor Unit Sound (Power) (dB(A))
66dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
54dB(A)
Output power
Cooling kW
9.5kW
Heating kW
10.8kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
17.6
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
17.6
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
85m
Max Pipe height (m)
30m
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
45g/m
Indoor Unit Width (mm)
1280mm
Indoor Unit Depth (mm)
345mm
Indoor Unit Height (mm)
253mm
Indoor Unit Weight (kg)
18.5kg
Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
1420mm
Outdoor Unit Weight (kg)
100.0kg
