system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
Ducted
Accessories
Controller Type

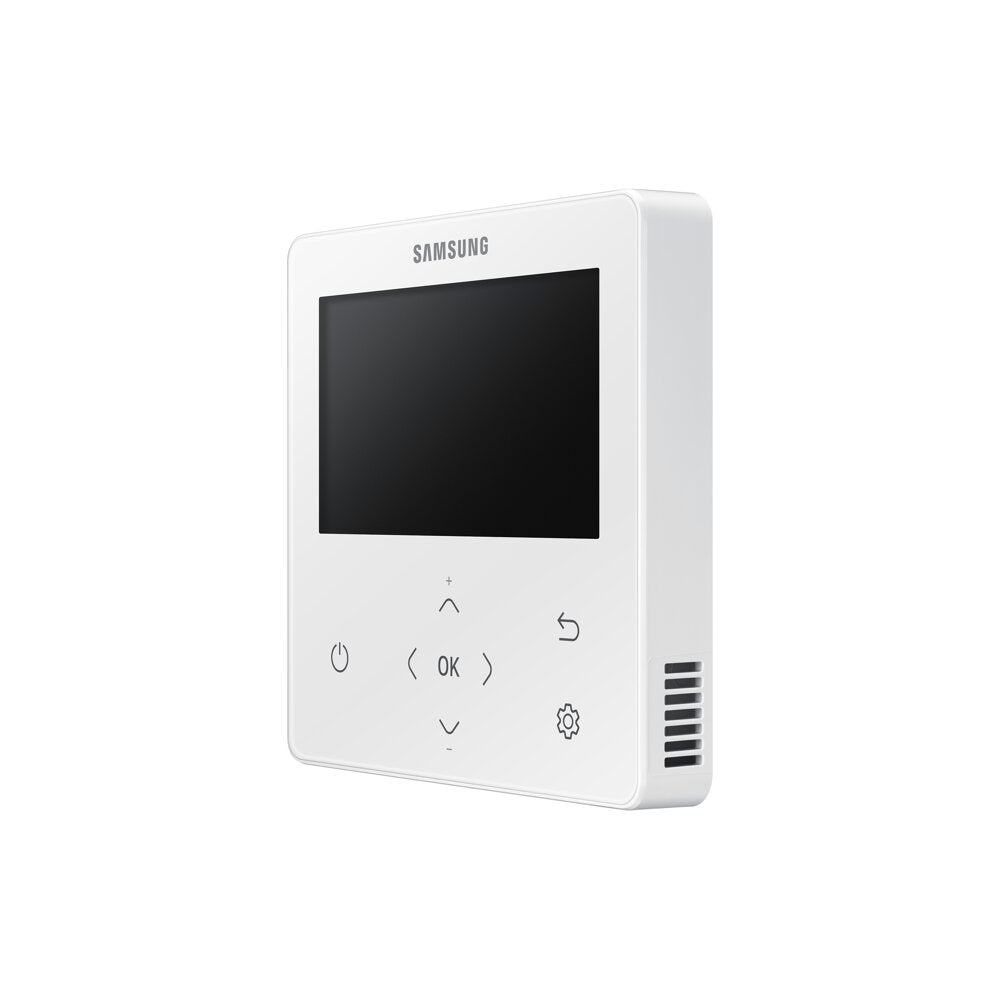

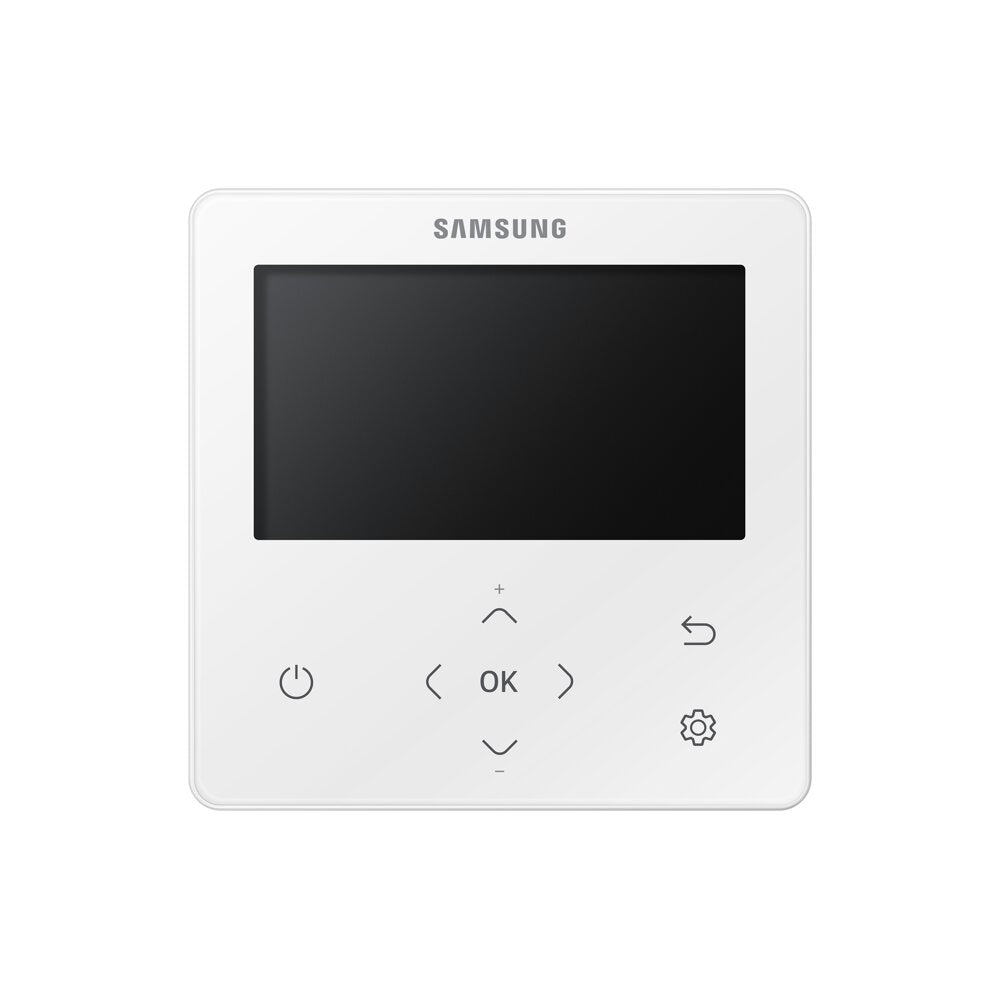

Premium wired
Efficiency
SEER
7.0
SCOP
4.3
Noise rating
Indoor Unit Sound (Power) (dB(A))
52dB(A)
Indoor Unit Sound (Pressure) (dB(A))
28dB(A)
Outdoor Unit Sound (Power) (dB(A))
61dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
46dB(A)
Output power
Cooling kW
3.5kW
Heating kW
4.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
15
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
12.5
Product features
Refrigerant
R32
Static Pressure (Pa)
147Pa
Colour
Steel
BMS Ready
Yes
Weights & dimensions
Pipe size (Liquid (mm))
6.4mm
Pipe size (Gas(mm))
9.5mm
Max Pipe length (m)
30m
Max Pipe height (m)
20m
Refrigerant Precharge length (m)
20m
Additional Charge (g/m)
30g/m
Indoor Unit Width (mm)
850mm
Indoor Unit Depth (mm)
700mm
Indoor Unit Height (mm)
250mm
Indoor Unit Weight (kg)
26.5kg
Outdoor Unit Width (mm)
880mm
Outdoor Unit Depth (mm)
310mm
Outdoor Unit Height (mm)
638mm
Outdoor Unit Weight (kg)
43.0kg
