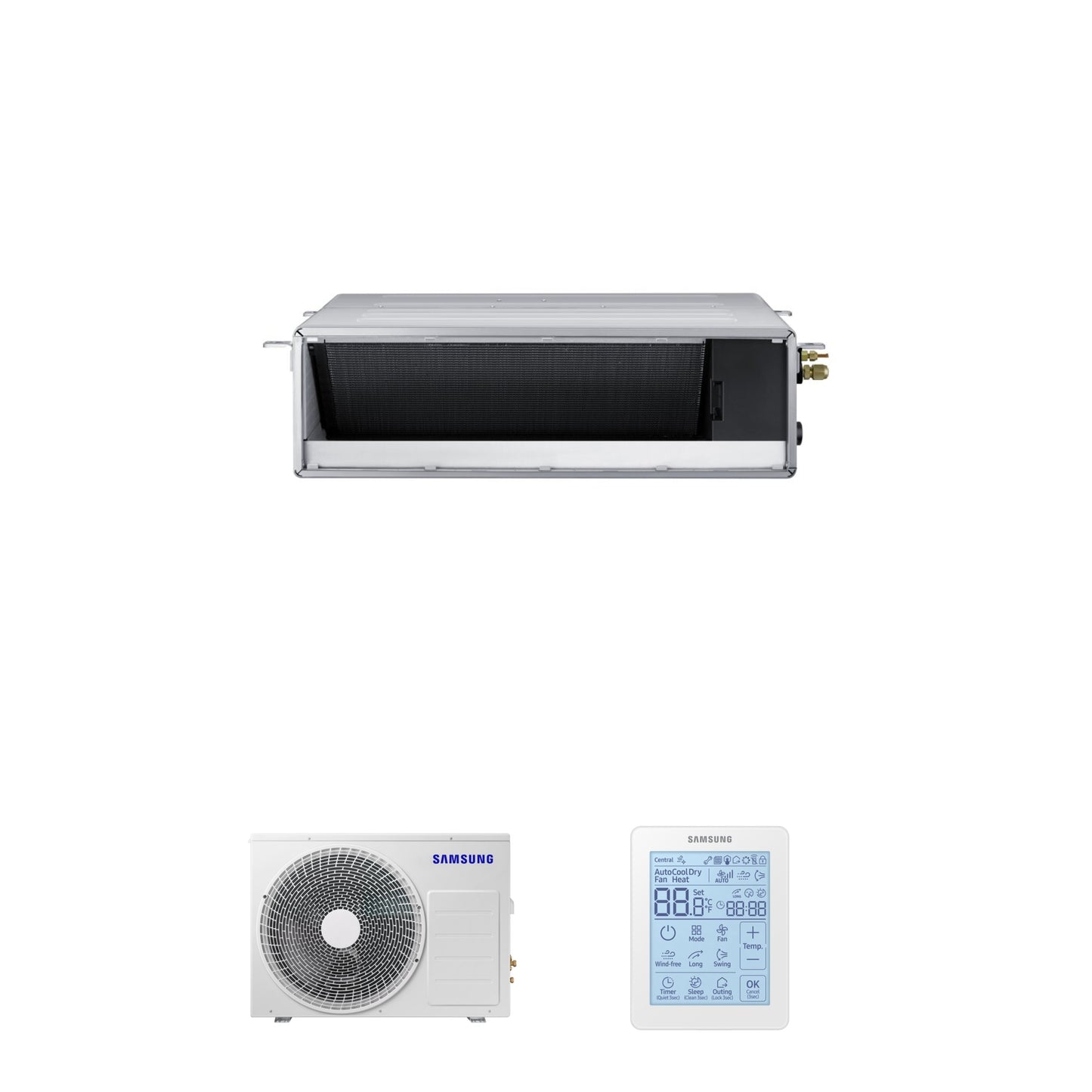

system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
Ducted
Accessories

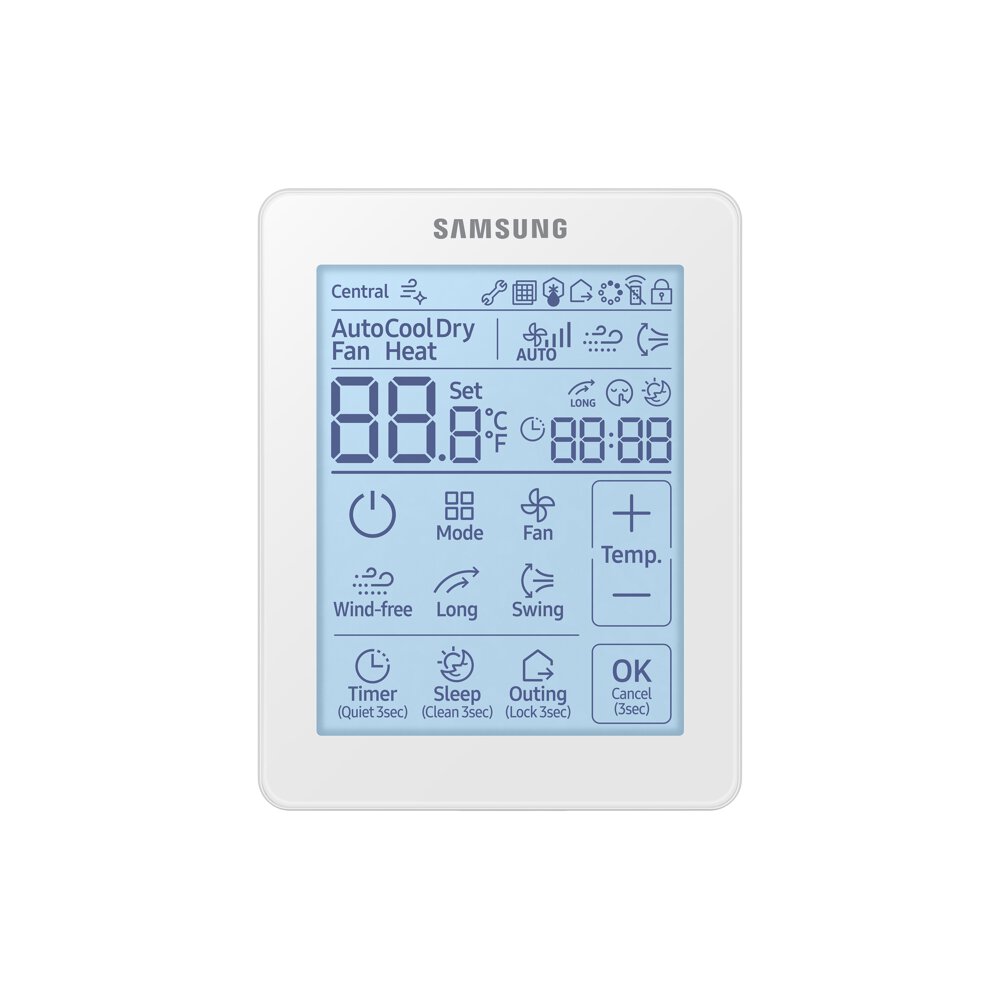

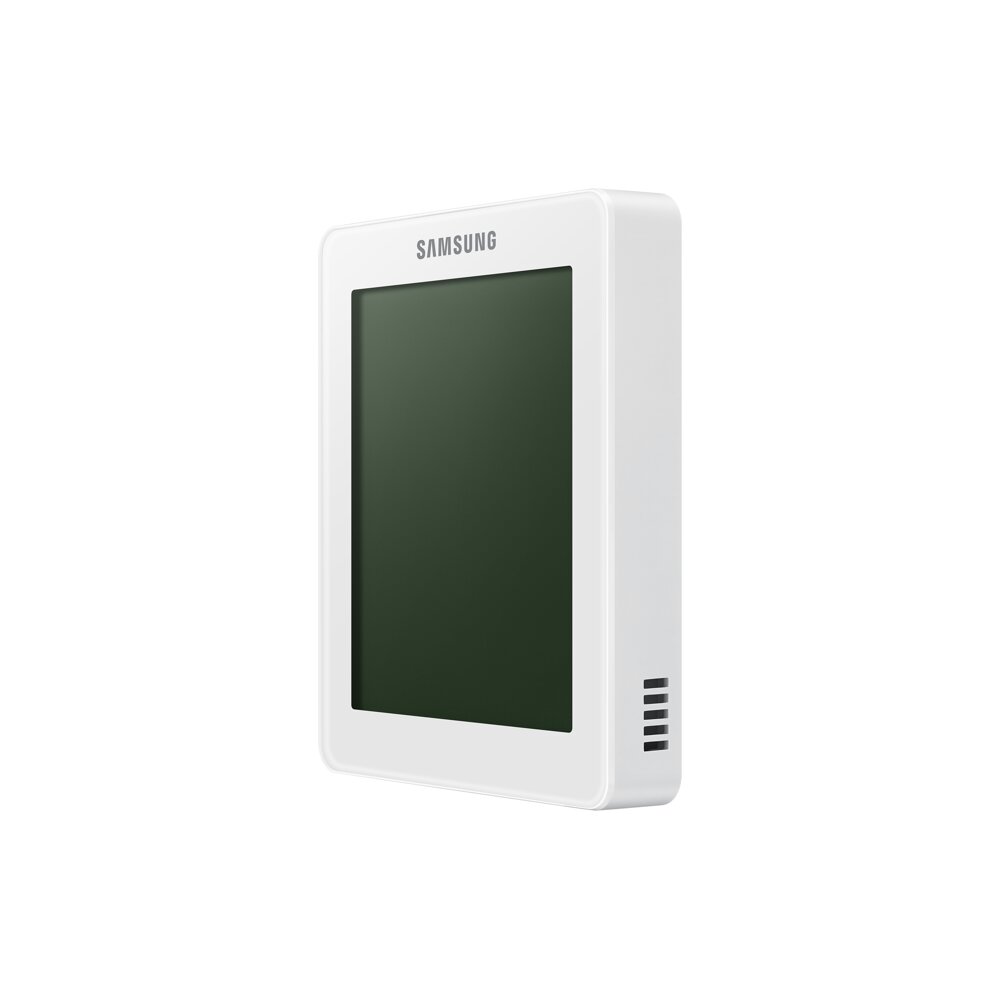

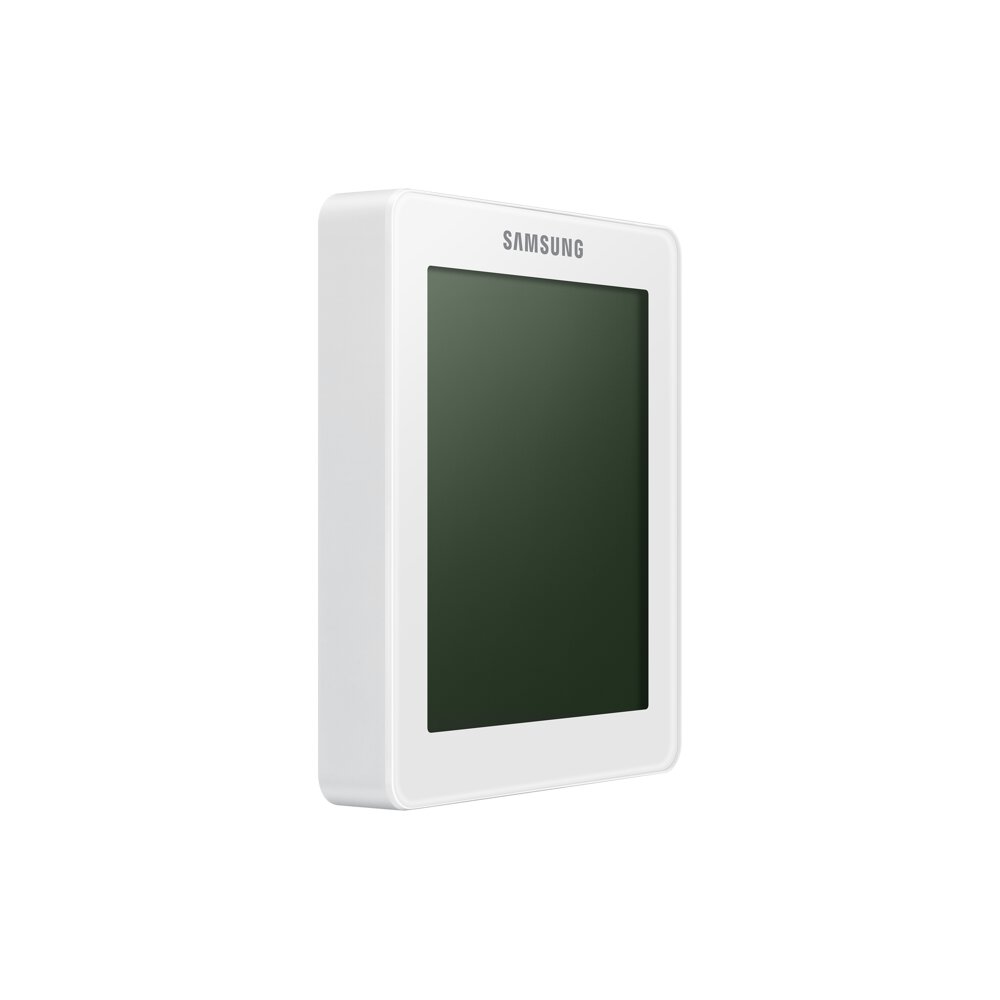

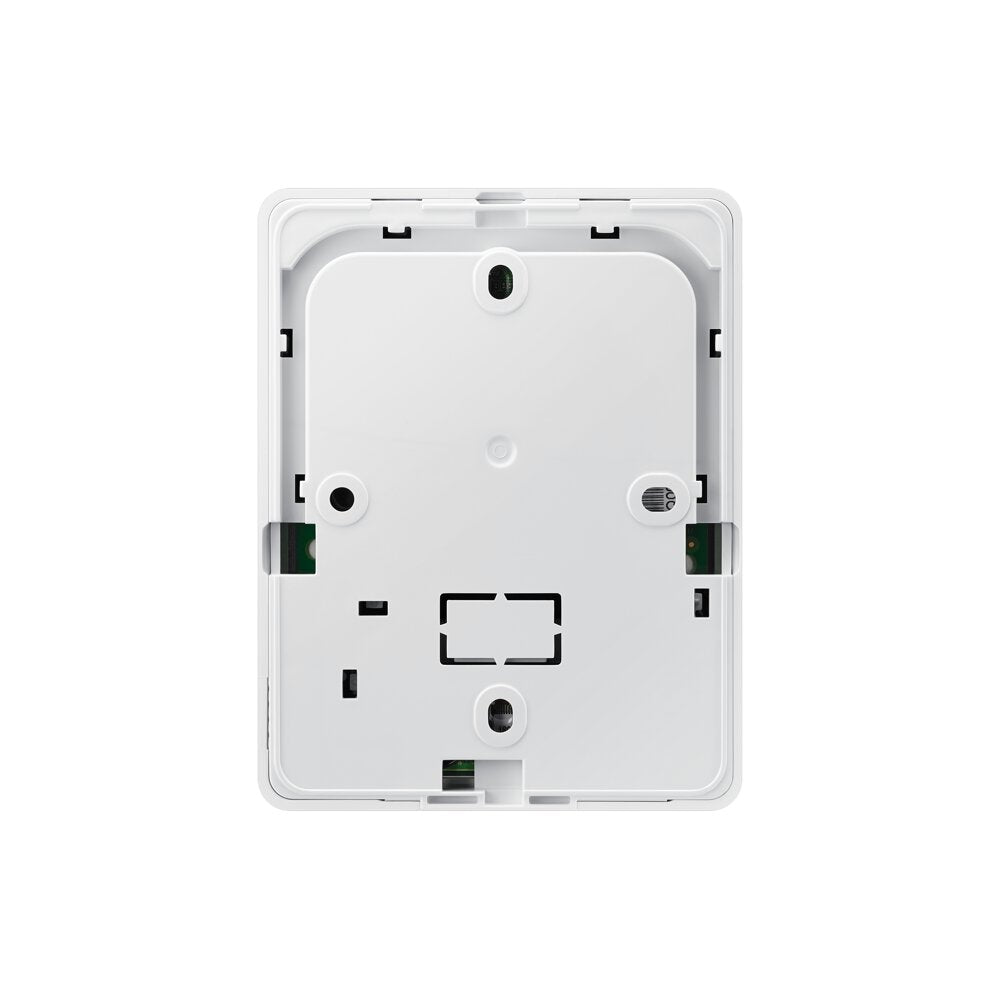

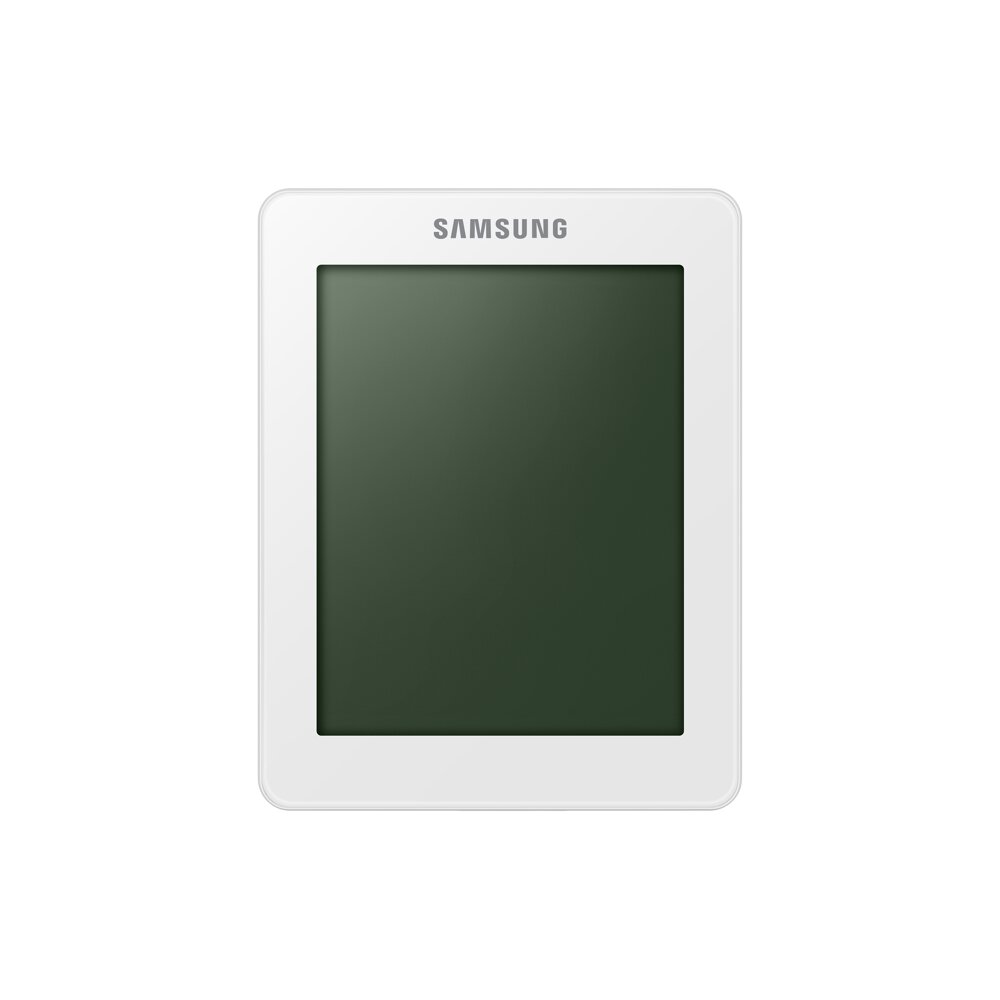

Controller Type
Simplified wired
Efficiency
SEER
5.8
SCOP
4.0
Noise rating
Indoor Unit Sound (Power) (dB(A))
62dB(A)
Indoor Unit Sound (Pressure) (dB(A))
37dB(A)
Outdoor Unit Sound (Power) (dB(A))
70dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
56dB(A)
Output power
Cooling kW
12.0kW
Heating kW
13.2kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Three Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
30
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
26.5
Product features
Refrigerant
R32
Static Pressure (Pa)
147Pa
Colour
Steel
BMS Ready
Yes
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Net Weight (kg)
0.0kg
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
50g/m
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg

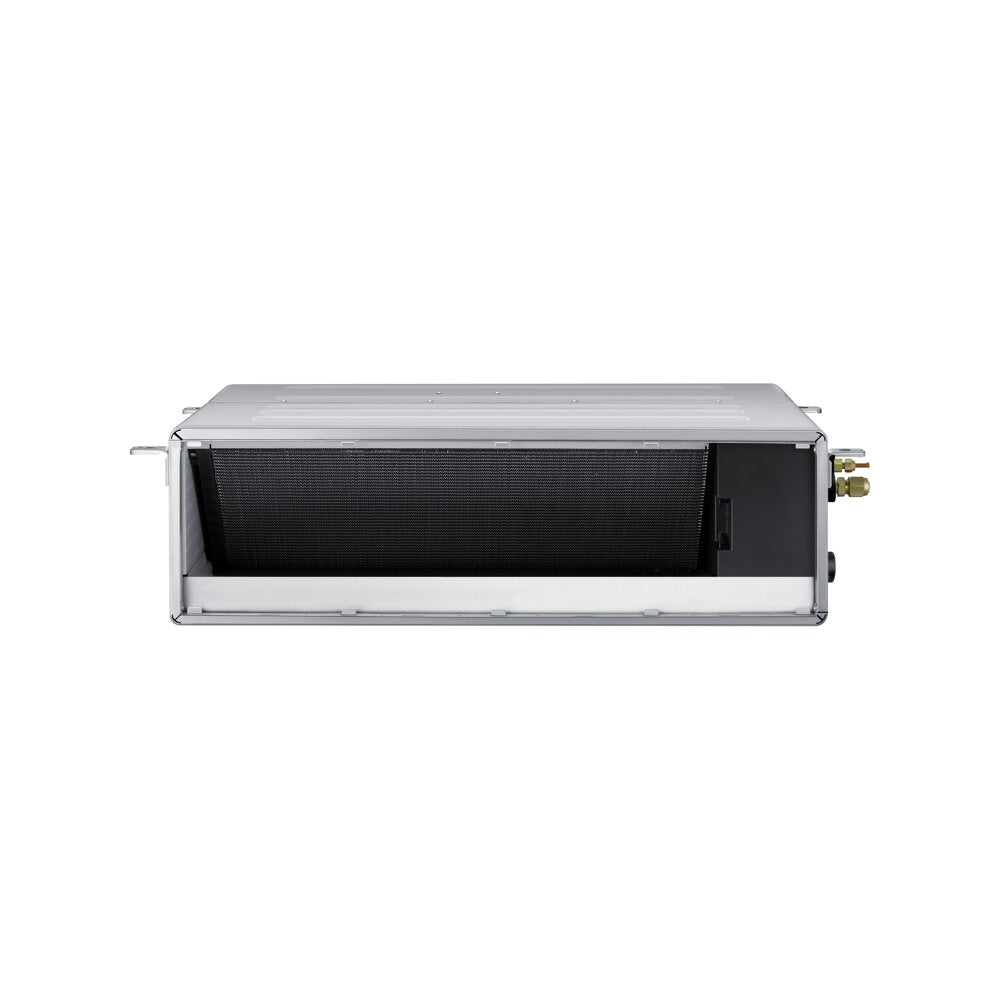

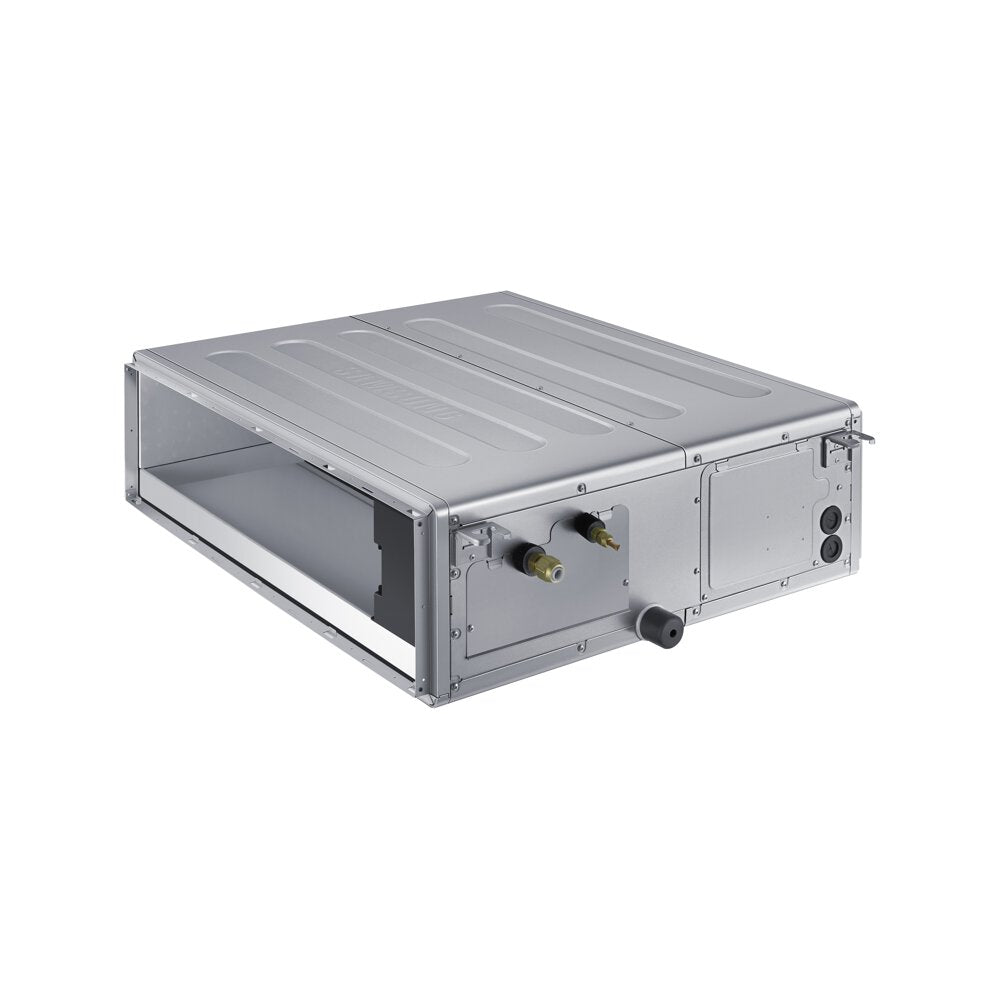

Indoor Unit Width (mm)
1300mm
Indoor Unit Depth (mm)
700mm
Indoor Unit Height (mm)
300mm
Indoor Unit Weight (kg)
38.5kg

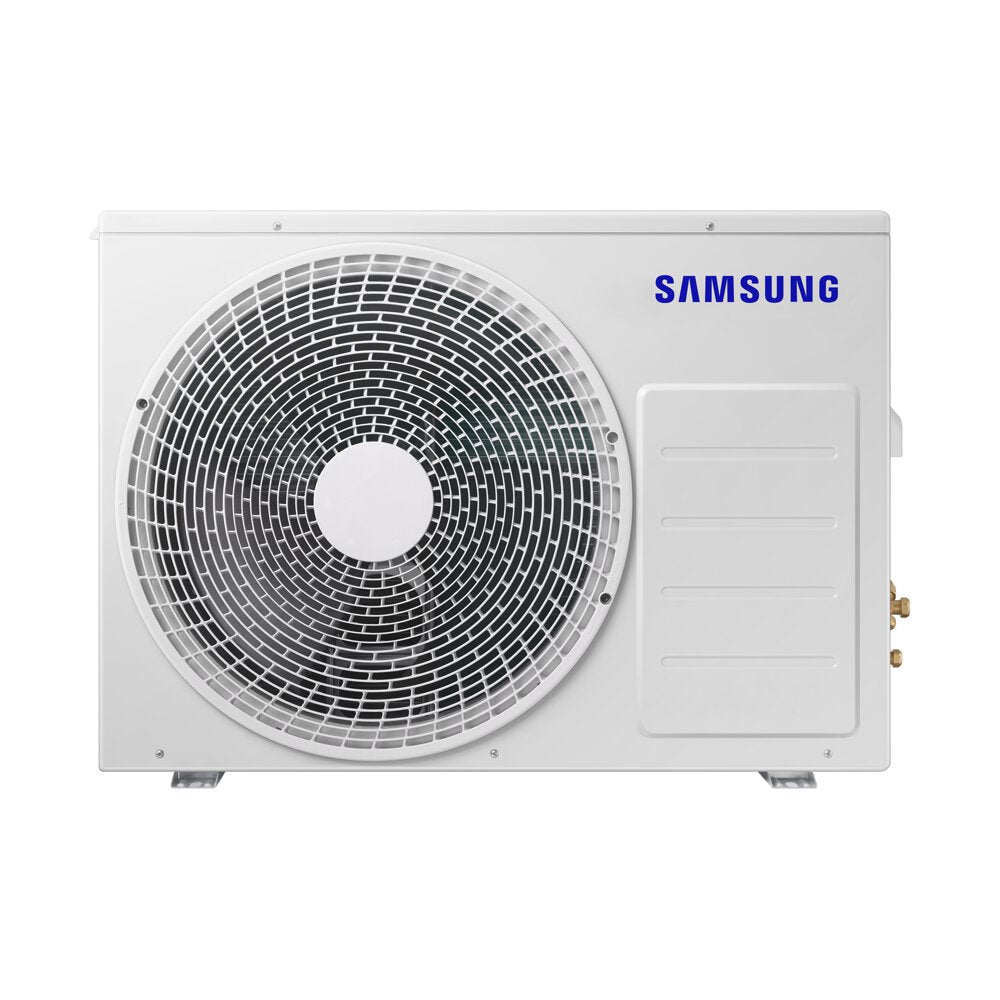

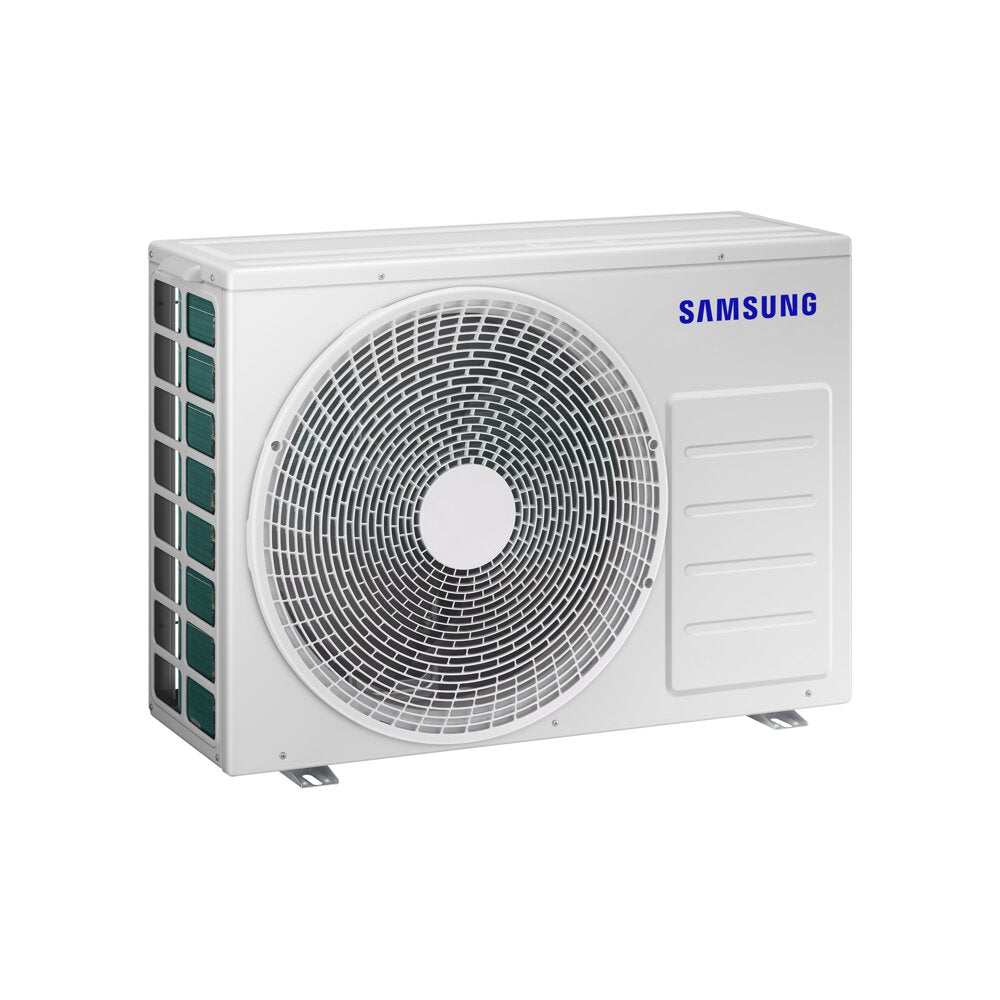

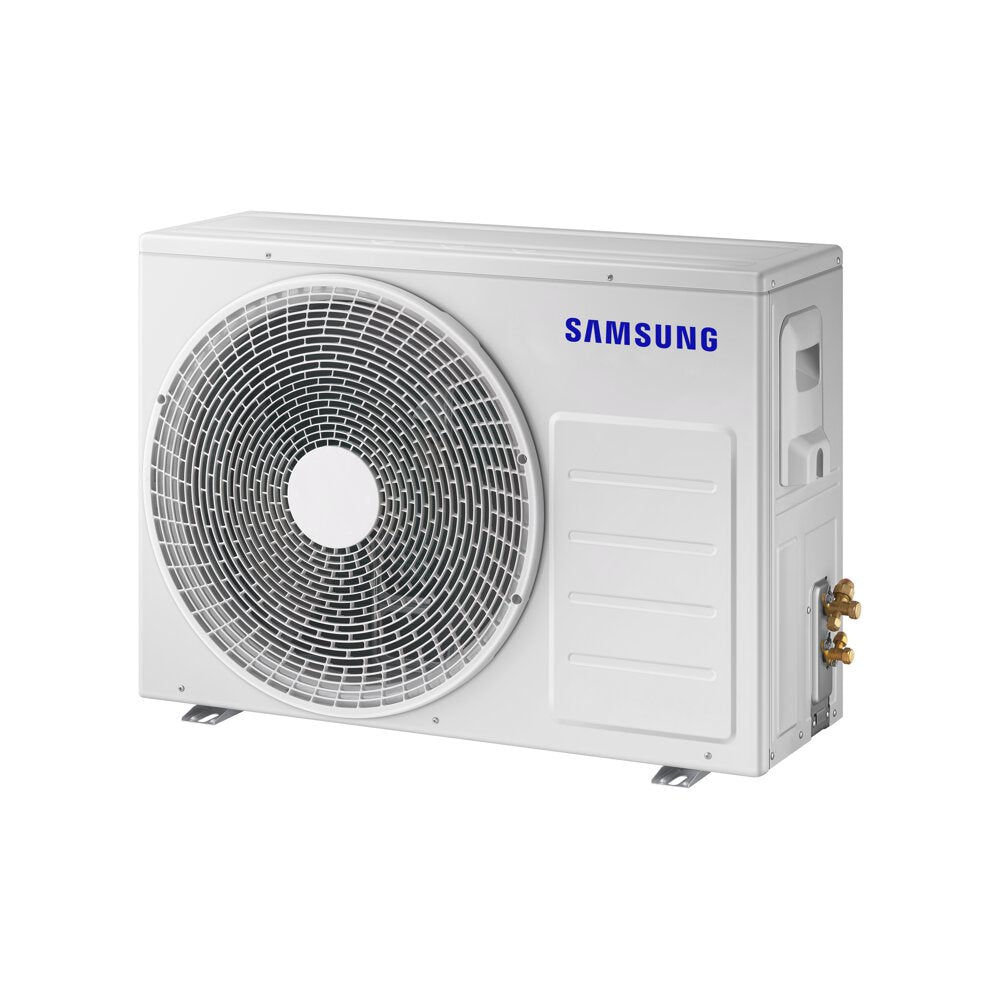

Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
980mm
Outdoor Unit Weight (kg)
80.0kg
