system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
4-Way Cassette
Accessories
Drain Pump
Included

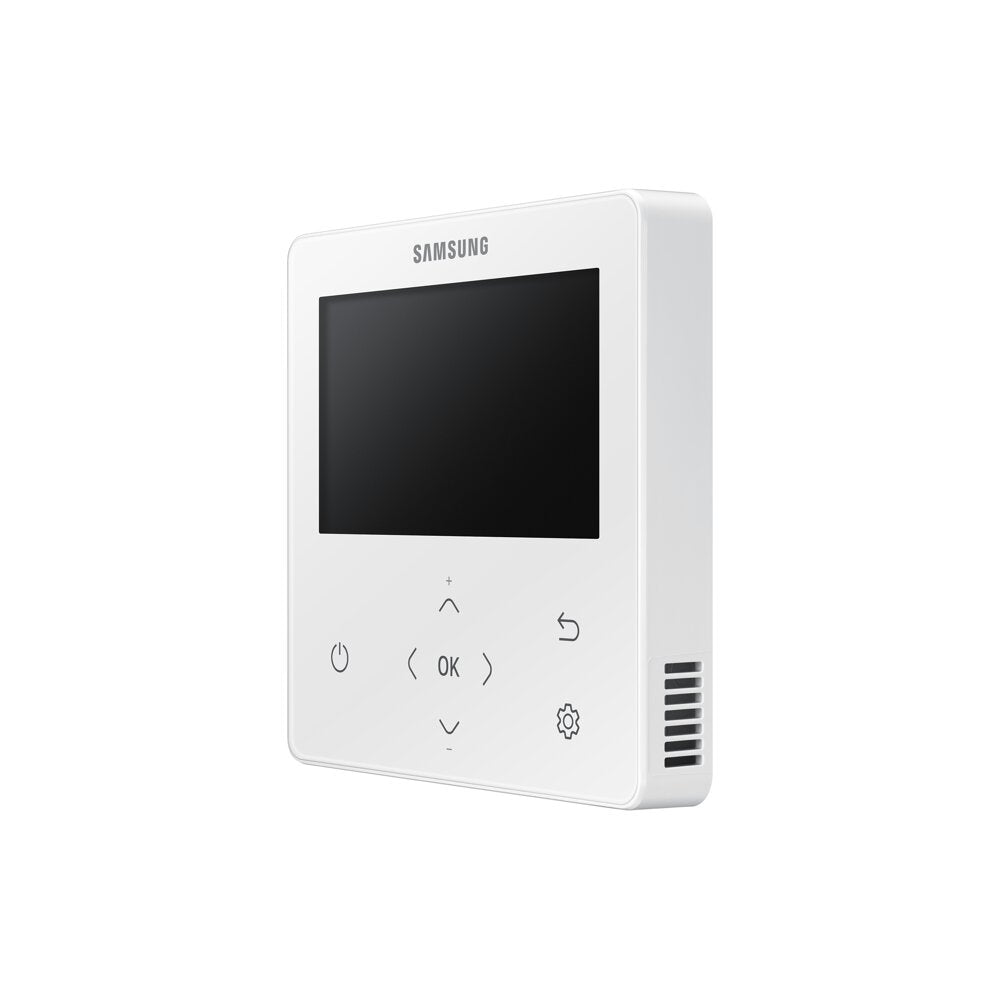

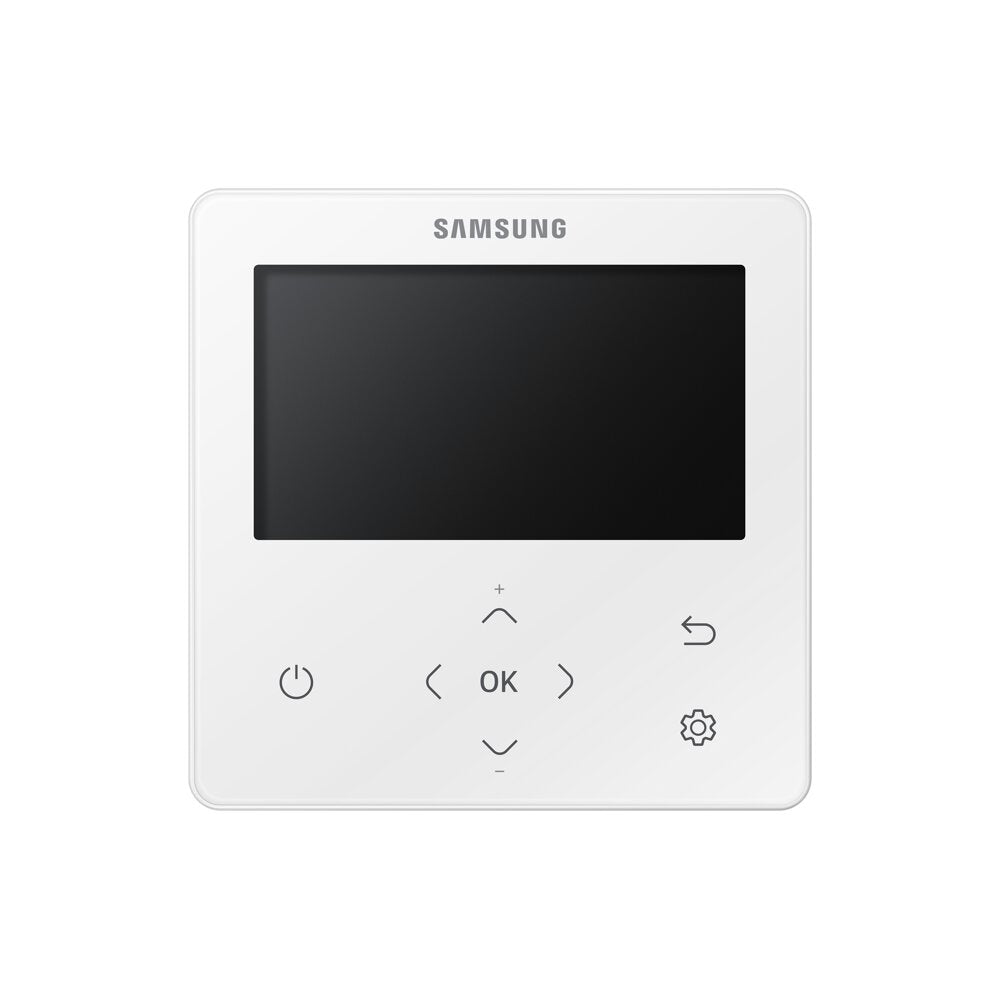

Controller Type
Premium wired
Efficiency
SEER
8.0
SCOP
4.7
Noise rating
Indoor Unit Sound (Power) (dB(A))
61dB(A)
Indoor Unit Sound (Pressure) (dB(A))
45dB(A)
Outdoor Unit Sound (Power) (dB(A))
70dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
52dB(A)
Output power
Cooling kW
13.4kW
Heating kW
15.5kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Three Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
17.6
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
17.6
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Wind Free
Yes
Drain Pump Lift
750
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
85m
Max Pipe height (m)
30m
Net Weight (kg)
0.0kg
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
45g/m
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg
Indoor Unit Width (mm)
840mm
Indoor Unit Depth (mm)
840mm
Indoor Unit Height (mm)
288mm
Indoor Unit Weight (kg)
18.0kg
Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
1420mm
Outdoor Unit Weight (kg)
100.0kg
Fascia Panel Width (mm)
950mm
Fascia Panel Depth (mm)
950mm
Fascia Panel Height (mm)
48mm
