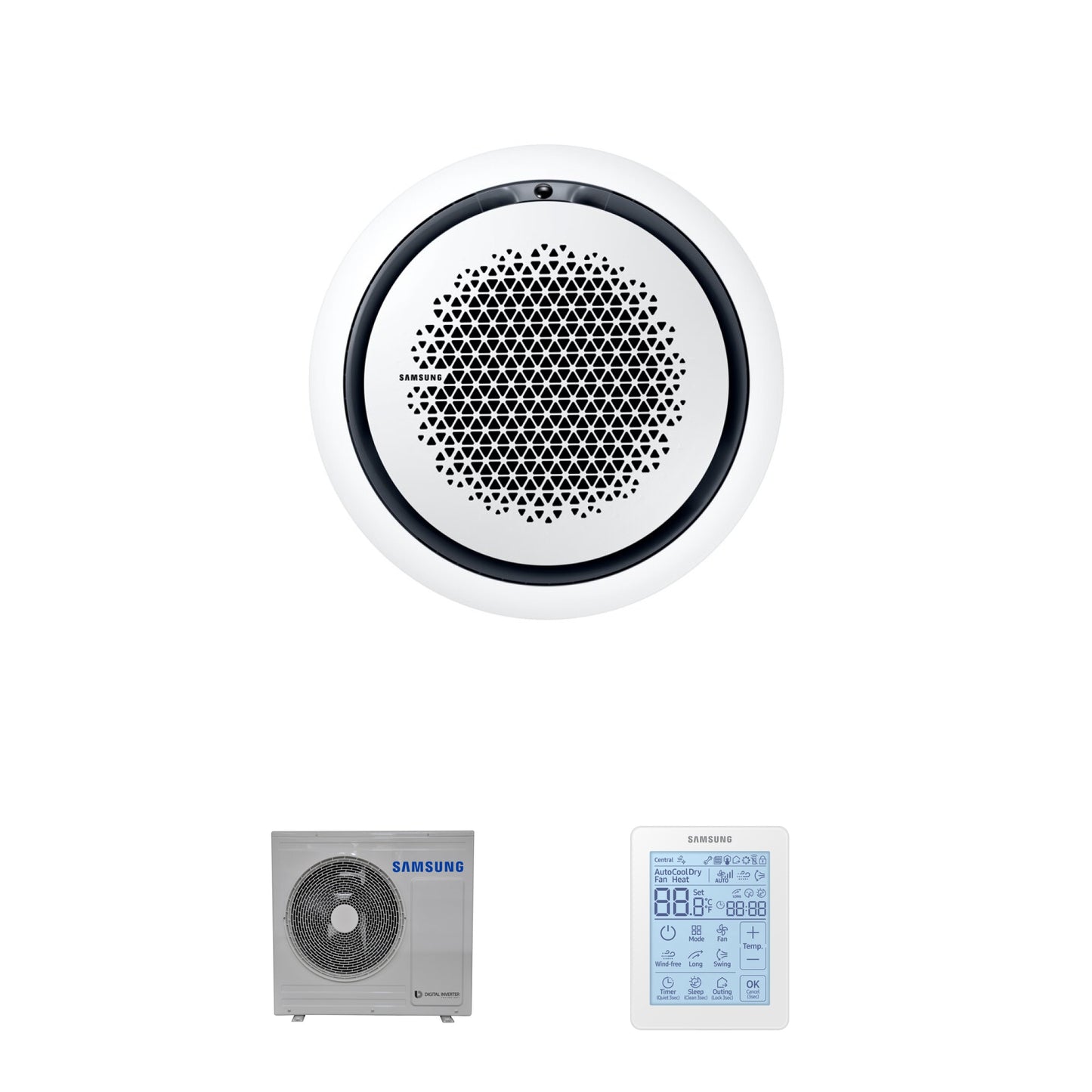

![Samsung CAC 7.1kW 360 Cassette high efficiency with white circular fascia panel and simplified wired controller](http://shop.thefuturelife.co.uk/cdn/shop/files/FLSYSCAC32349981.jpg?v=1712919557&width=1445)
system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category

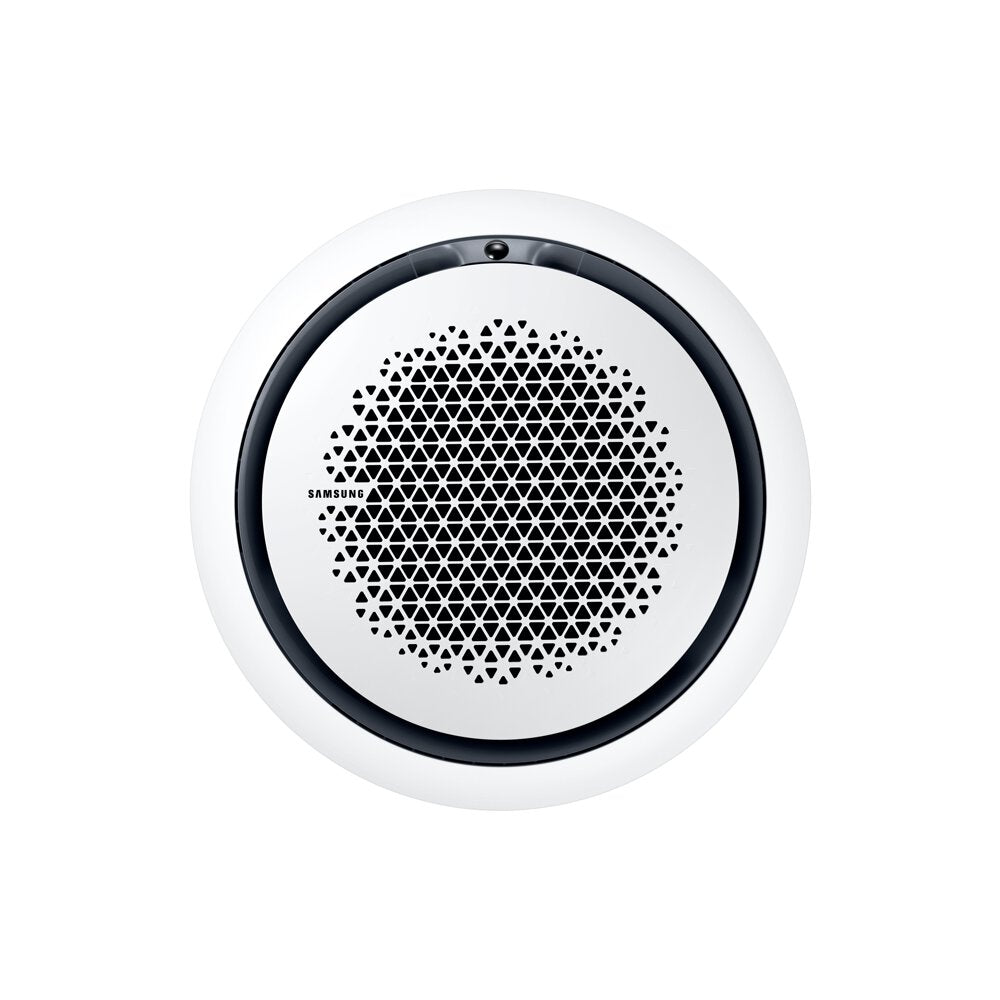

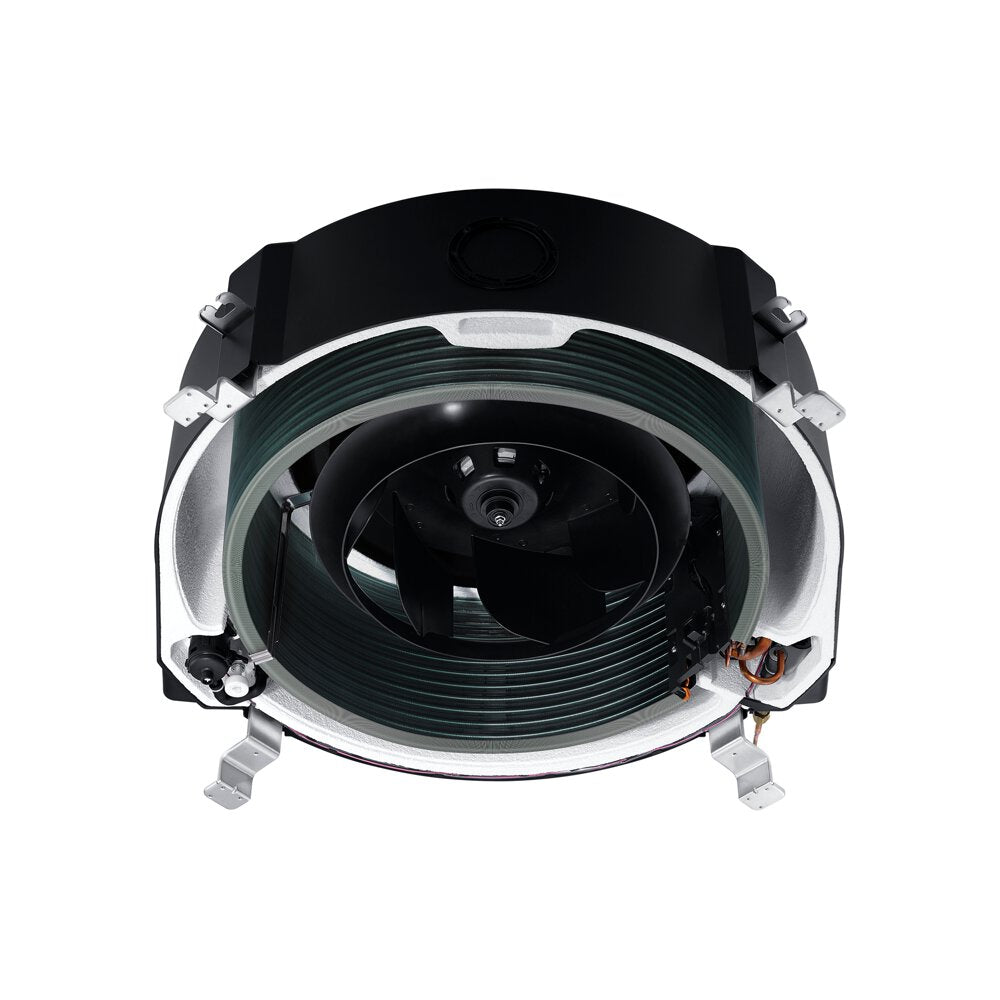

360 Cassette
Accessories
Drain Pump
Included
Controller Type

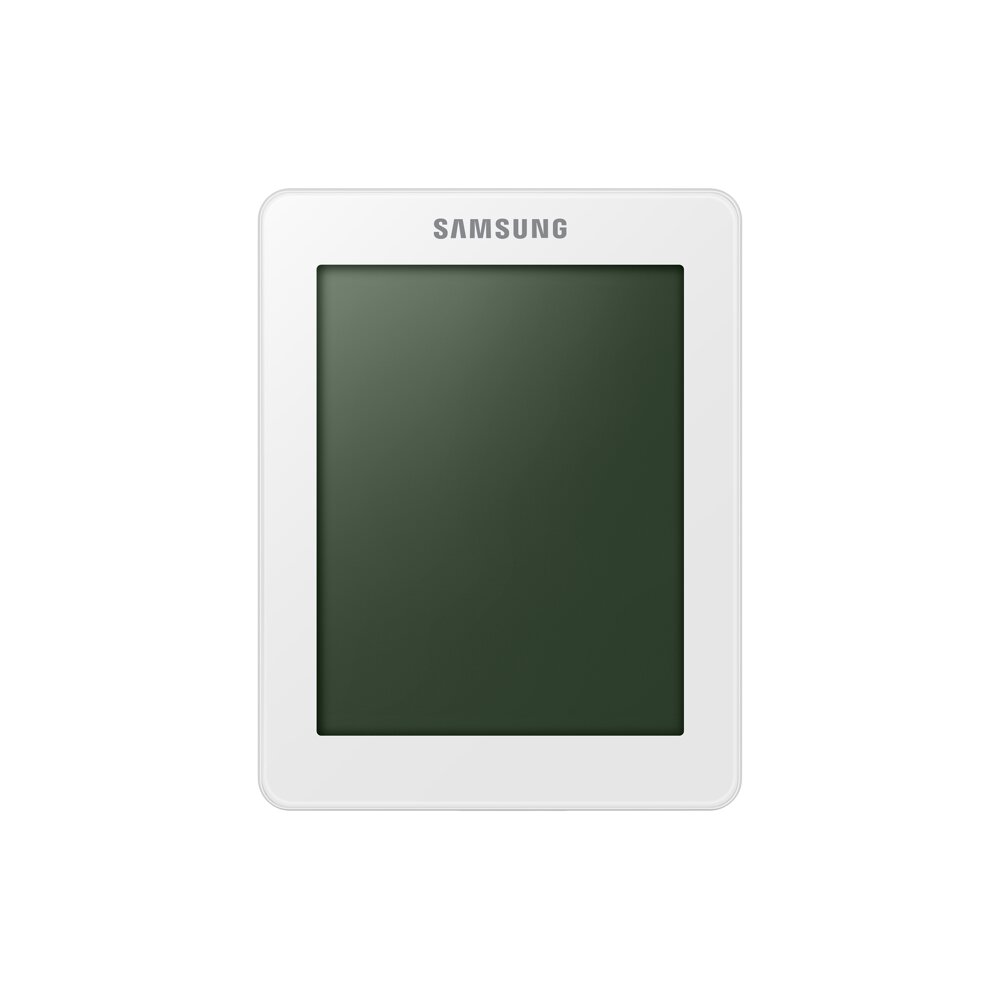

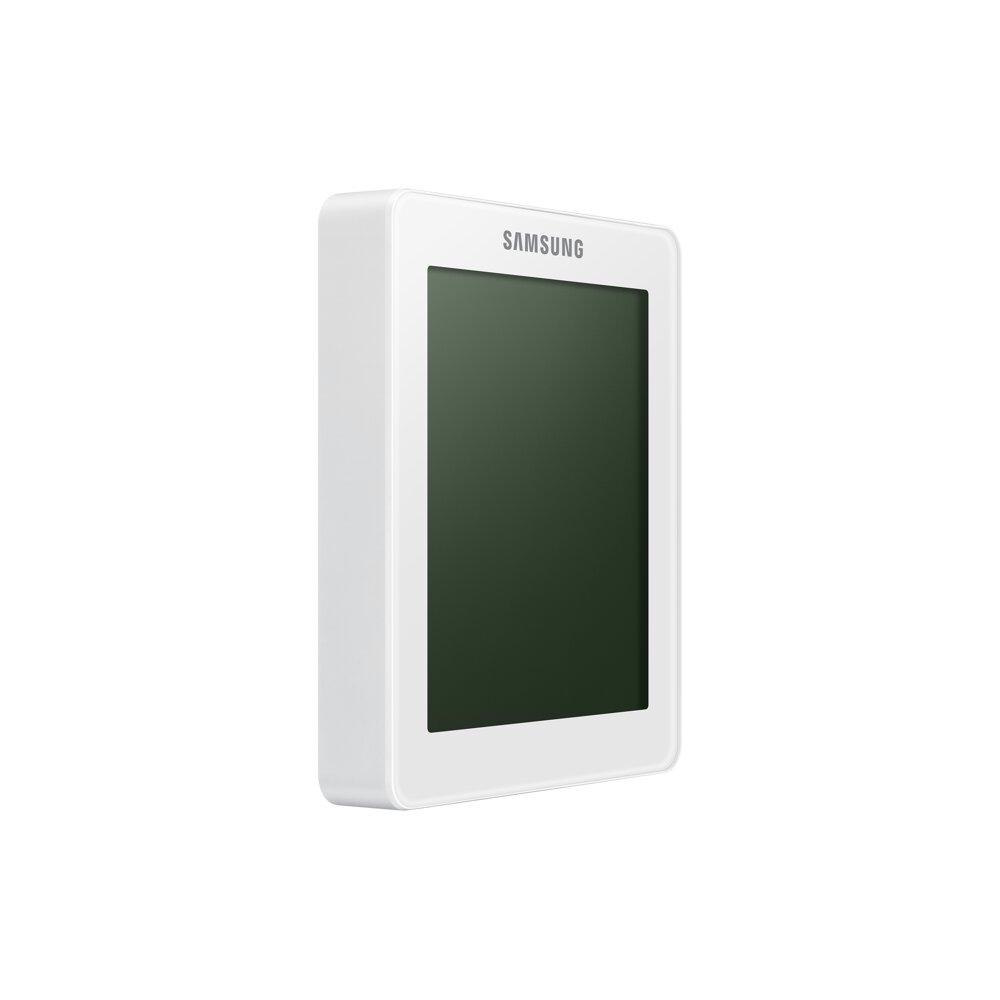

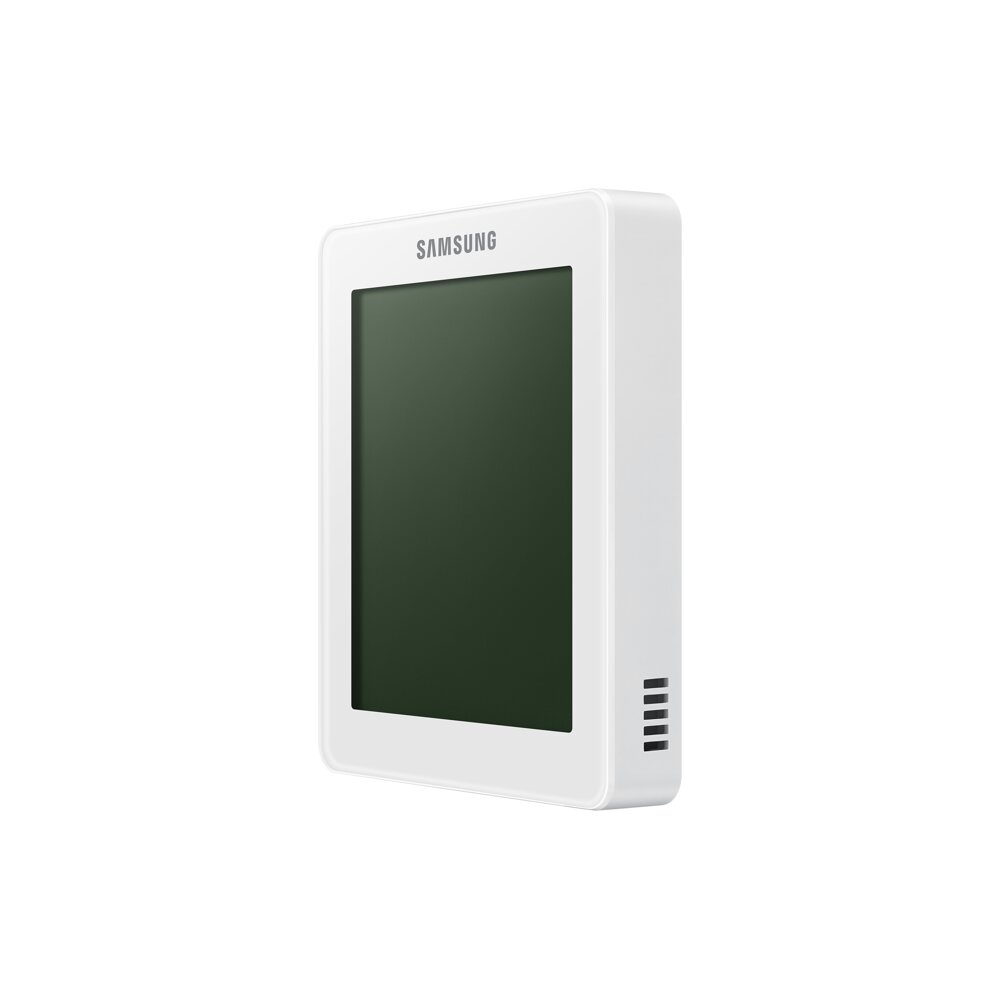

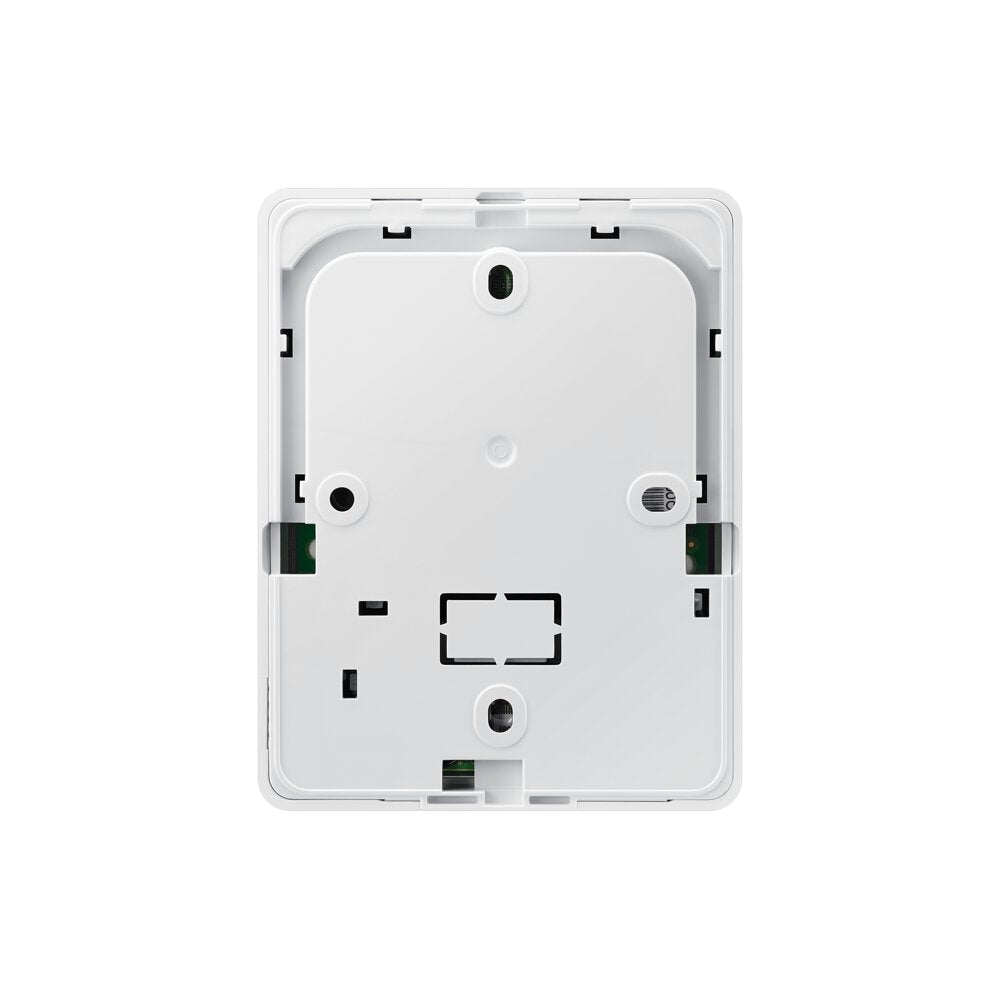

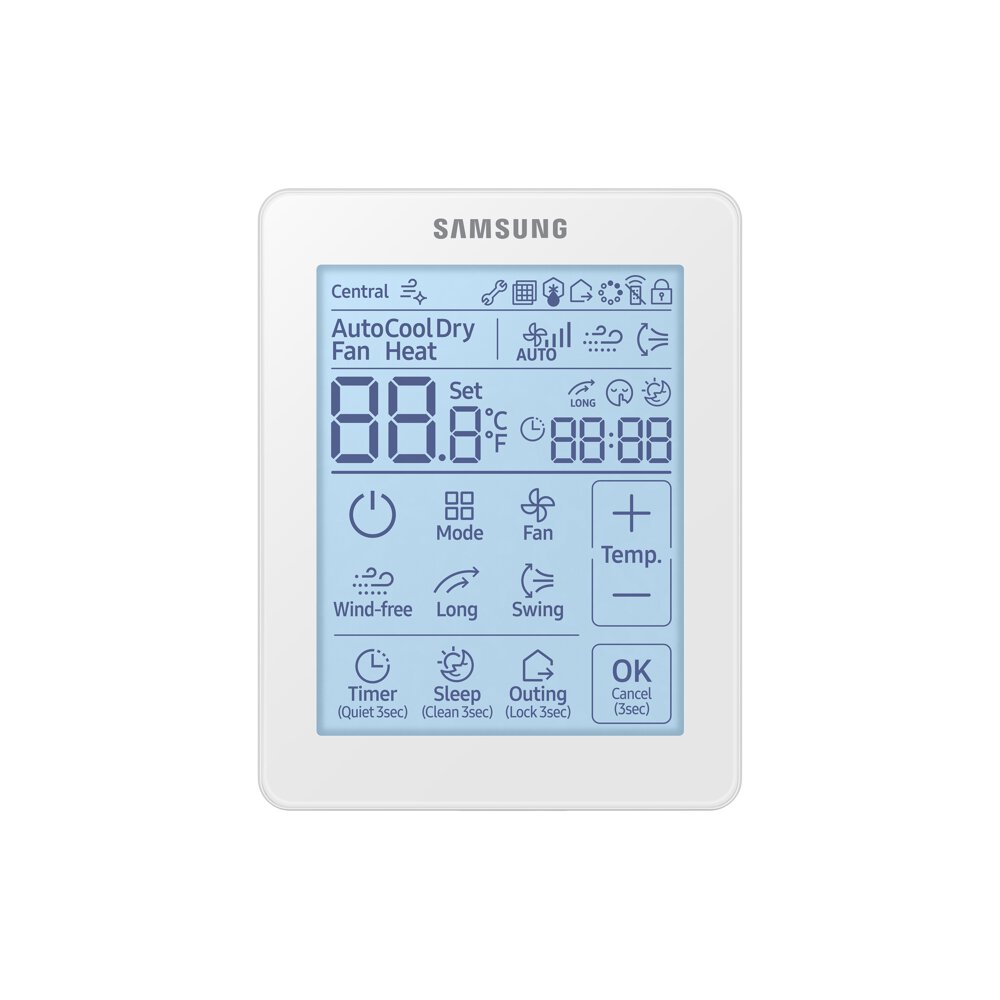

Simplified wired
Efficiency
SEER
7.8
SCOP
4.6
Noise rating
Indoor Unit Sound (Power) (dB(A))
52dB(A)
Indoor Unit Sound (Pressure) (dB(A))
35dB(A)
Outdoor Unit Sound (Power) (dB(A))
64dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
49dB(A)
Output power
Cooling kW
7.1kW
Heating kW
8.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
17.6
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
17.6
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Drain Pump Lift
750
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
55m
Max Pipe height (m)
30m
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
45g/m
Indoor Unit Width (mm)
947mm
Indoor Unit Depth (mm)
947mm
Indoor Unit Height (mm)
281mm
Indoor Unit Weight (kg)
20.2kg

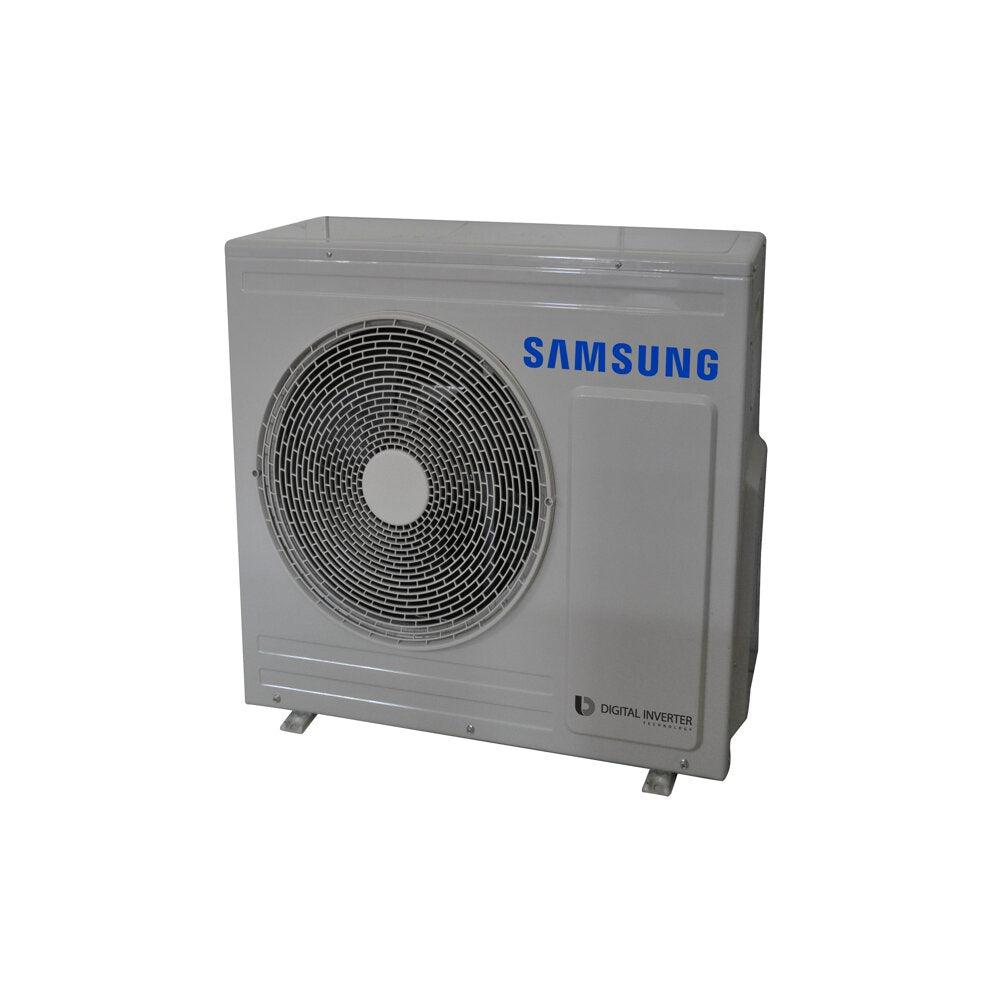

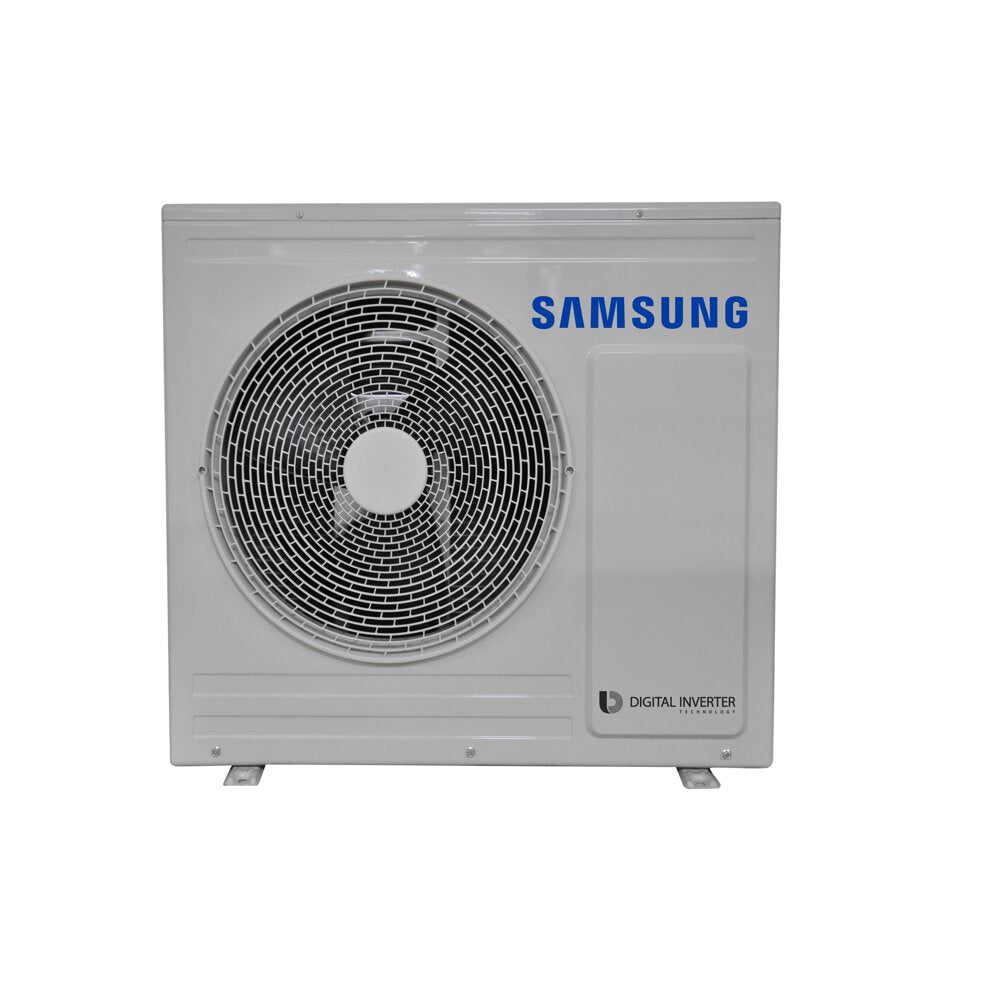

Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
998mm
Outdoor Unit Weight (kg)
74.0kg
Fascia Panel Width (mm)
1050mm
Fascia Panel Depth (mm)
1050mm
Fascia Panel Height (mm)
66mm
