system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
Ducted
Accessories

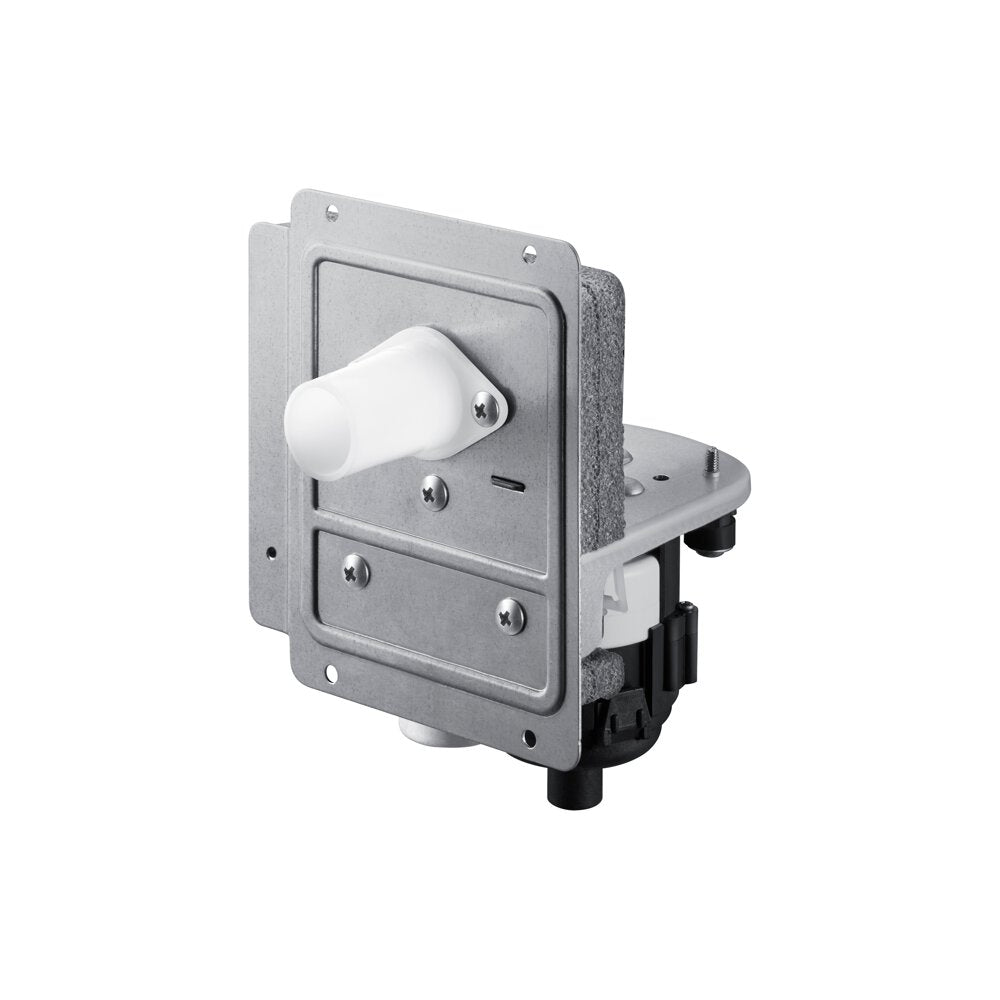

Drain Pump
Included

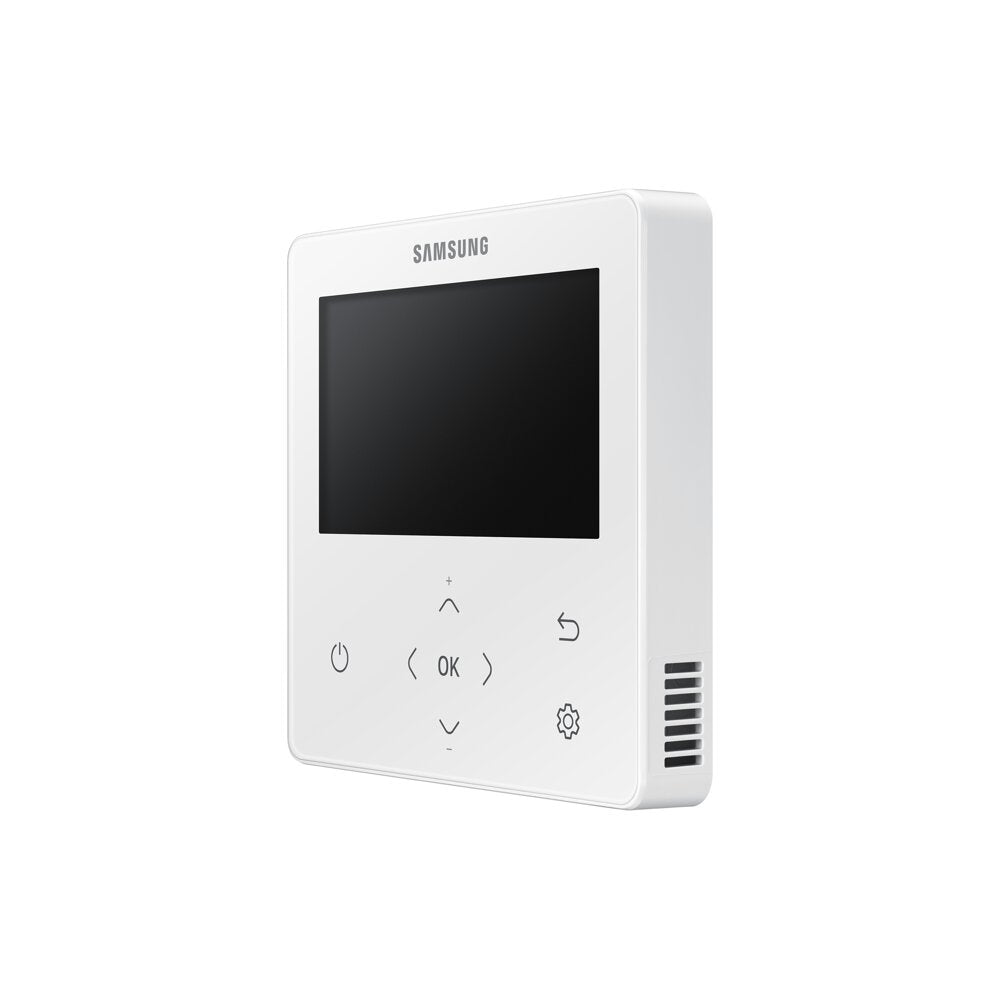

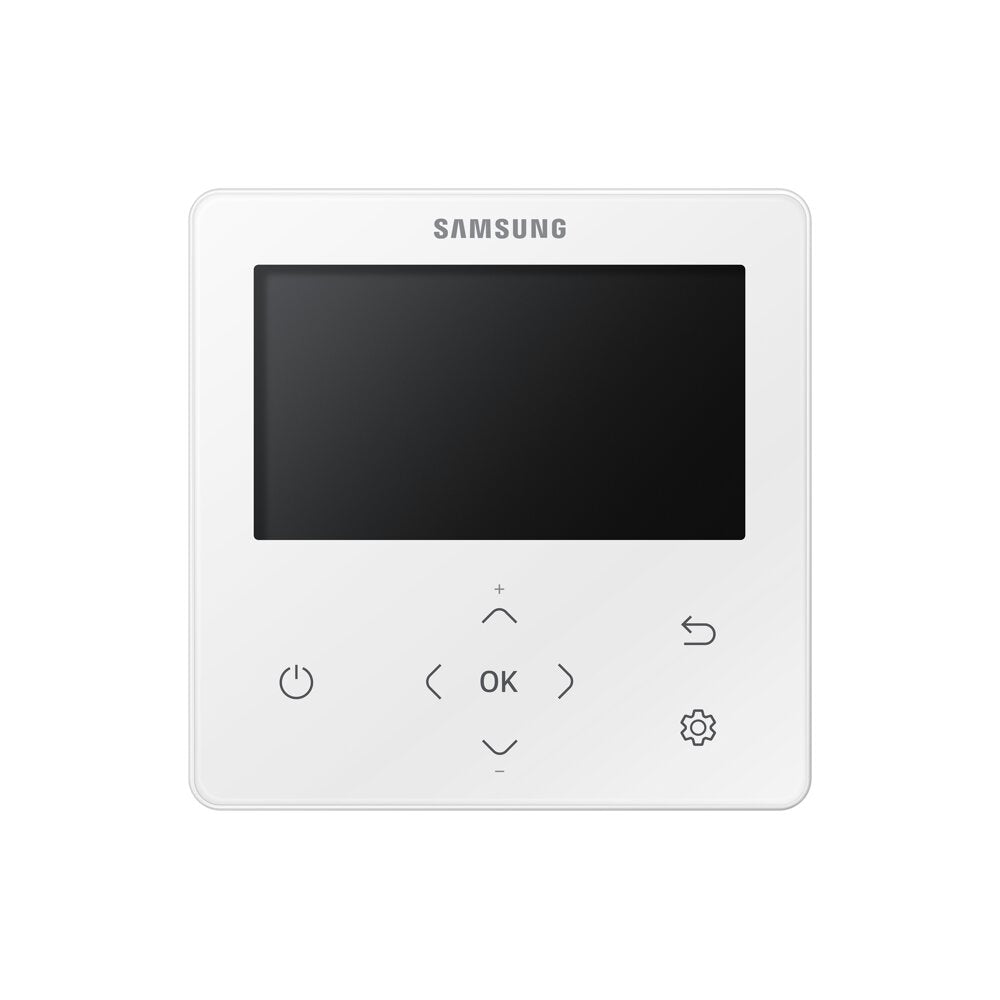

Controller Type
Premium wired
Efficiency
SEER
6.0
SCOP
4.0
Noise rating
Indoor Unit Sound (Power) (dB(A))
62dB(A)
Indoor Unit Sound (Pressure) (dB(A))
37dB(A)
Outdoor Unit Sound (Power) (dB(A))
69dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
54dB(A)
Output power
Cooling kW
13.4kW
Heating kW
15.5kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
40
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
33
Product features
Refrigerant
R32
Static Pressure (Pa)
147Pa
Colour
Steel
BMS Ready
Yes
Drain Pump Lift
750
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
75m
Max Pipe height (m)
30m
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
50g/m
Indoor Unit Width (mm)
1300mm
Indoor Unit Depth (mm)
700mm
Indoor Unit Height (mm)
300mm
Indoor Unit Weight (kg)
38.5kg
Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
1210mm
Outdoor Unit Weight (kg)
91.5kg
