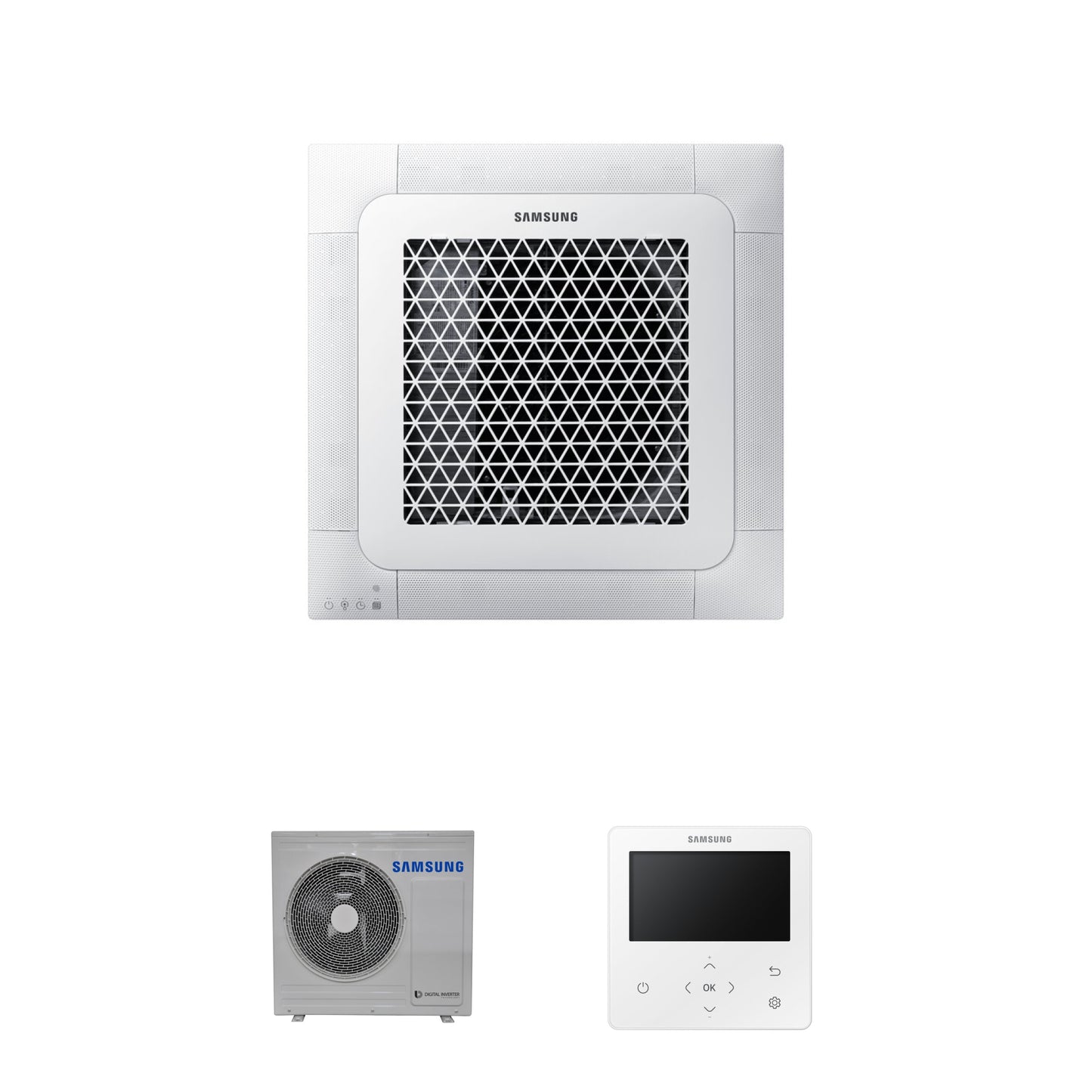

system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category

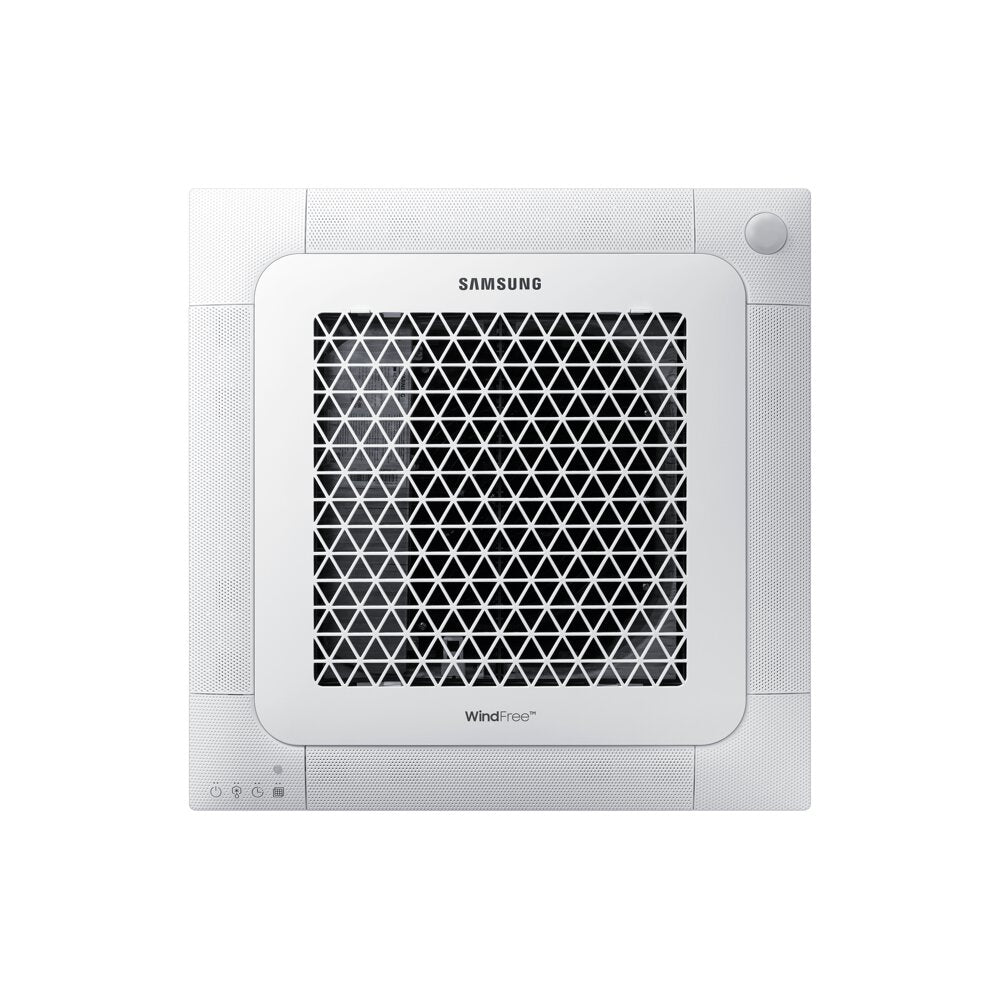

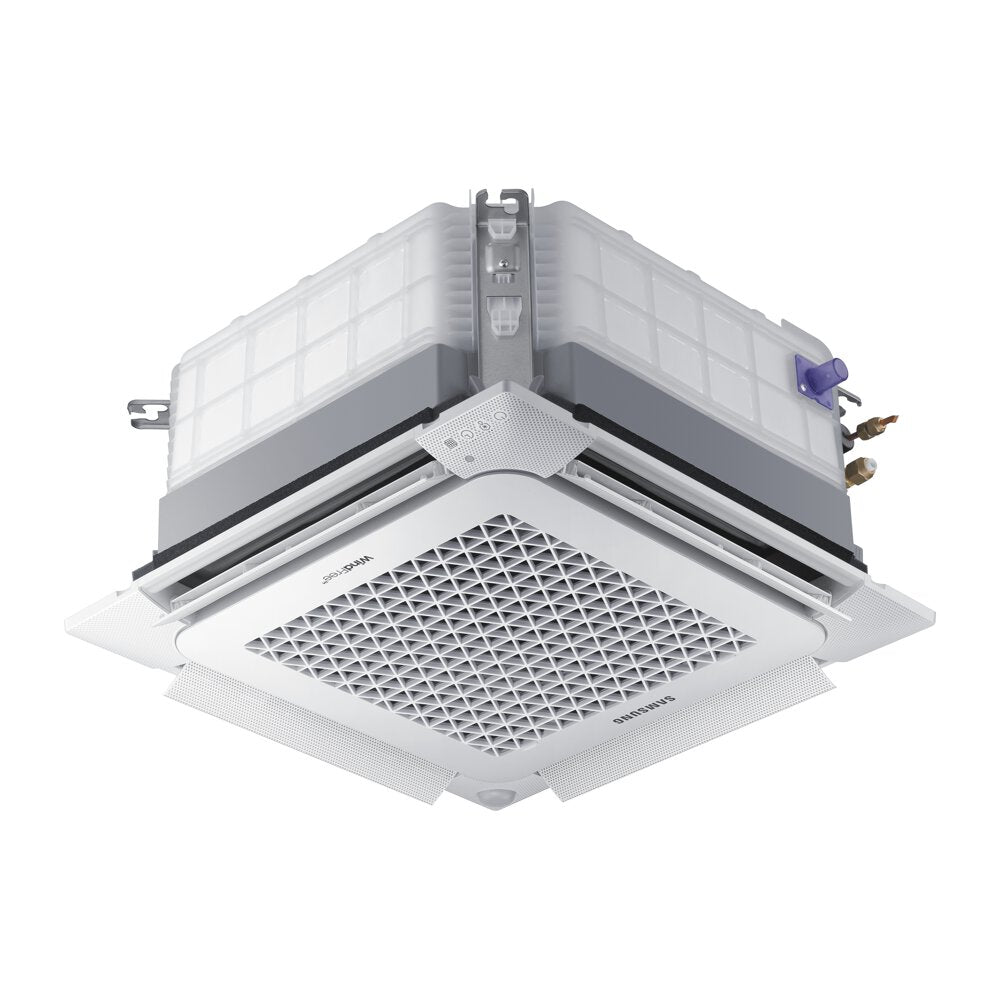

Mini 4-Way Cassette
Accessories
Controller Type

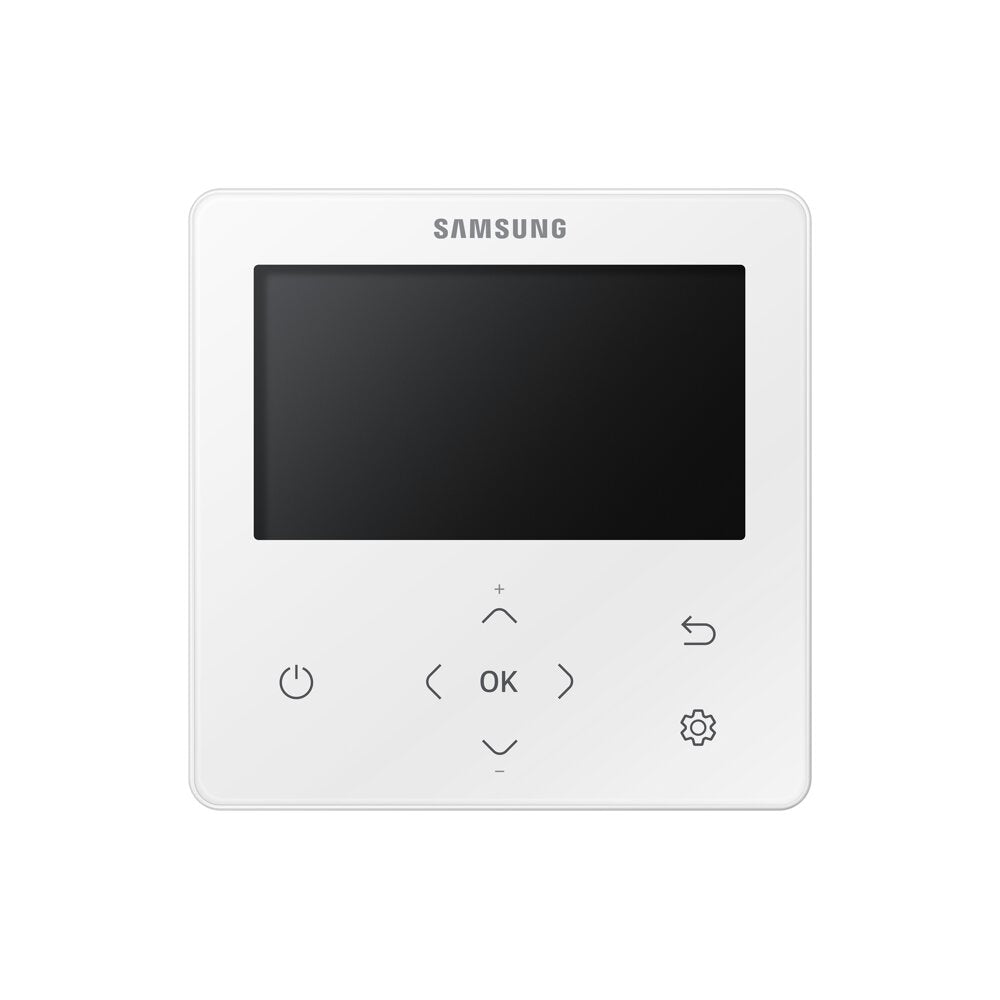

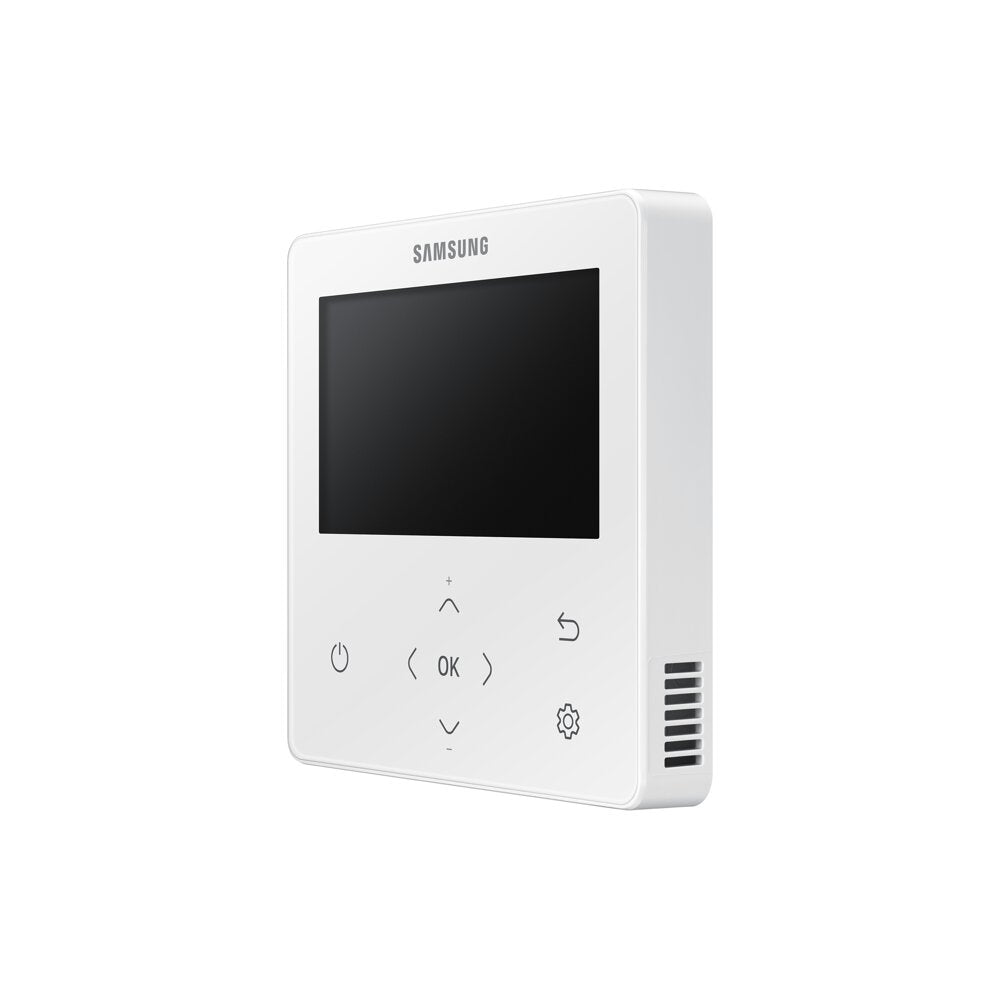

Premium wired
Efficiency
SEER
6.1
SCOP
3.8
Noise rating
Indoor Unit Sound (Power) (dB(A))
58dB(A)
Indoor Unit Sound (Pressure) (dB(A))
42dB(A)
Outdoor Unit Sound (Power) (dB(A))
65dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
51dB(A)
Output power
Cooling kW
6.8kW
Heating kW
7.5kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
15
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
12.5
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Wind Free
Yes
Weights & dimensions
Pipe size (Liquid (mm))
6.4mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Net Weight (kg)
0.0kg
Refrigerant Precharge length (m)
15m
Additional Charge (g/m)
25g/m
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg

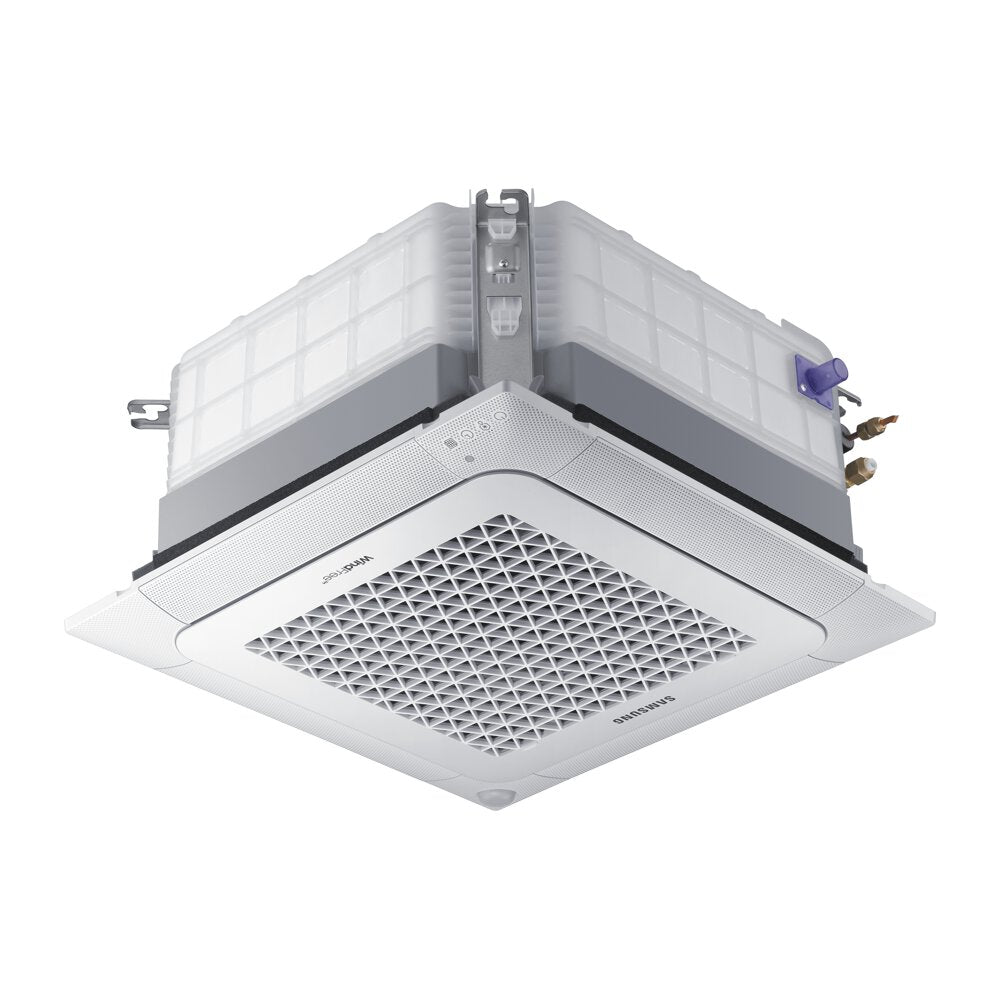

Indoor Unit Width (mm)
575mm
Indoor Unit Depth (mm)
575mm
Indoor Unit Height (mm)
250mm
Indoor Unit Weight (kg)
11.5kg

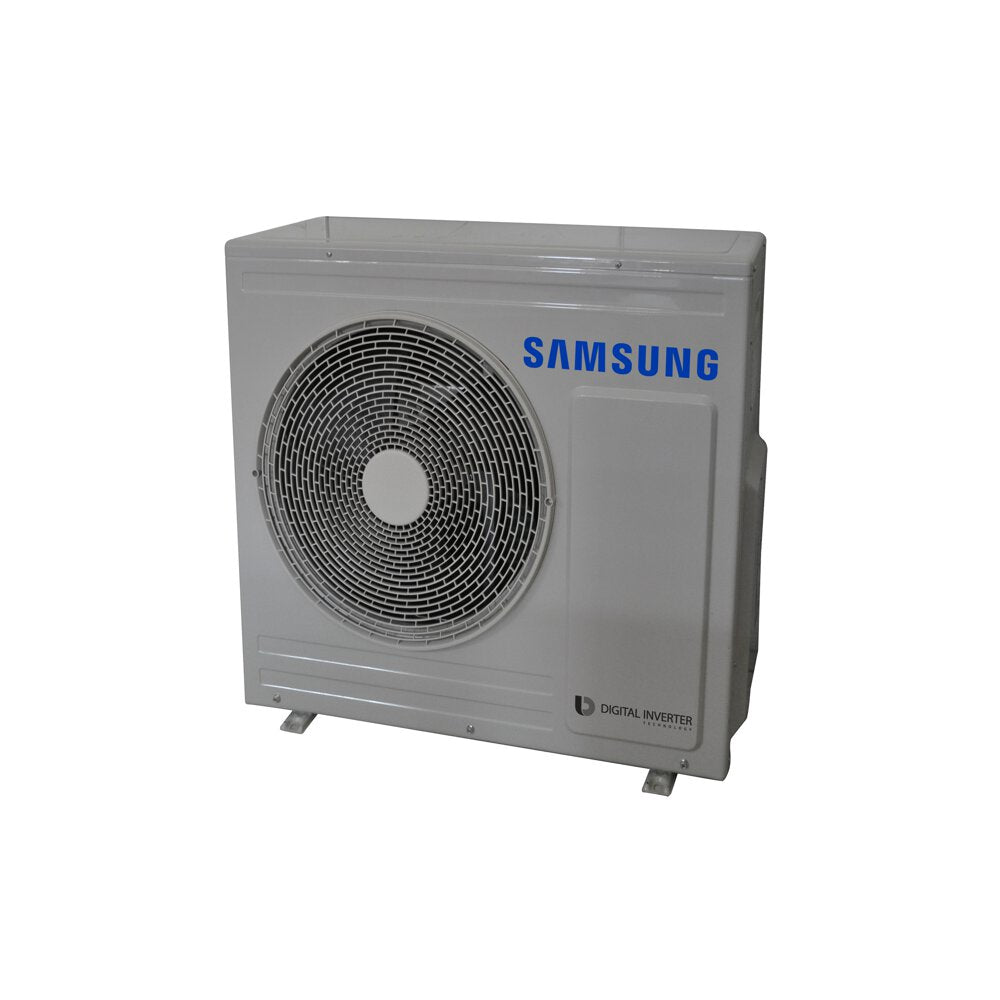

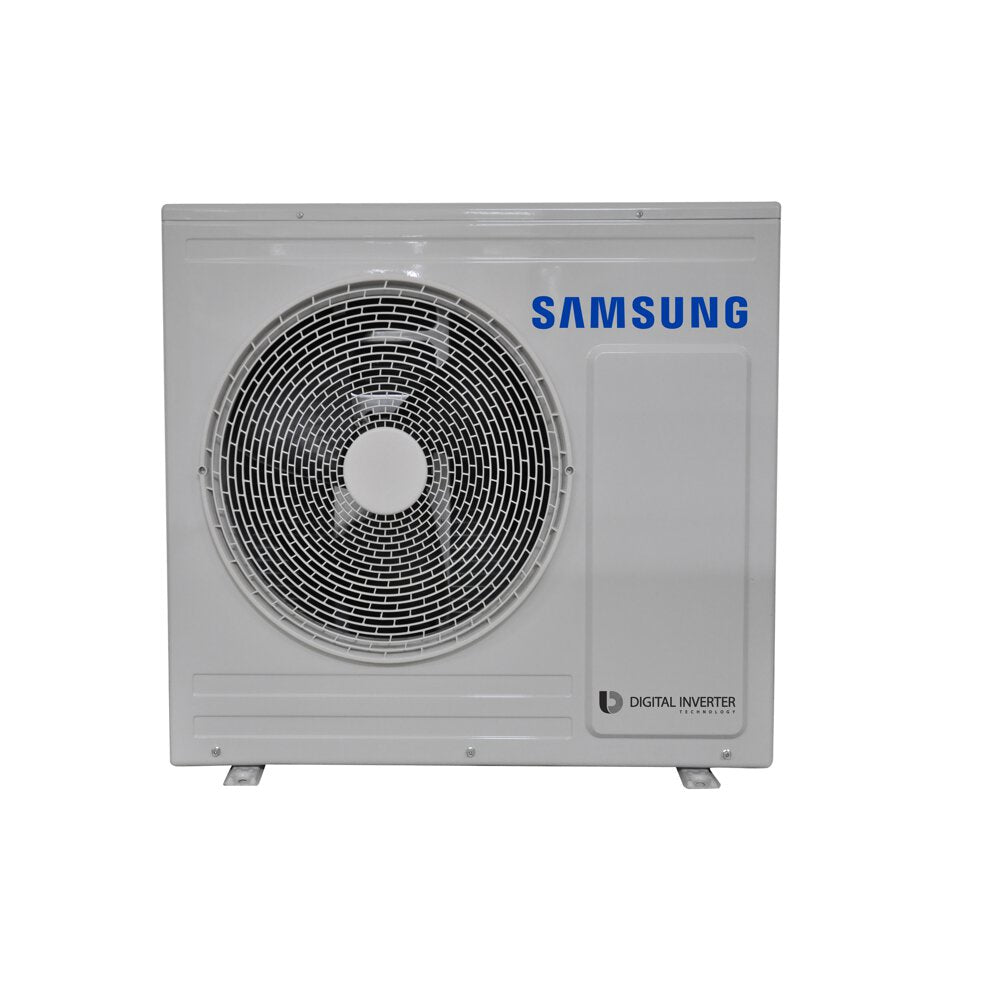

Outdoor Unit Width (mm)
880mm
Outdoor Unit Depth (mm)
310mm
Outdoor Unit Height (mm)
798mm
Outdoor Unit Weight (kg)
51.0kg

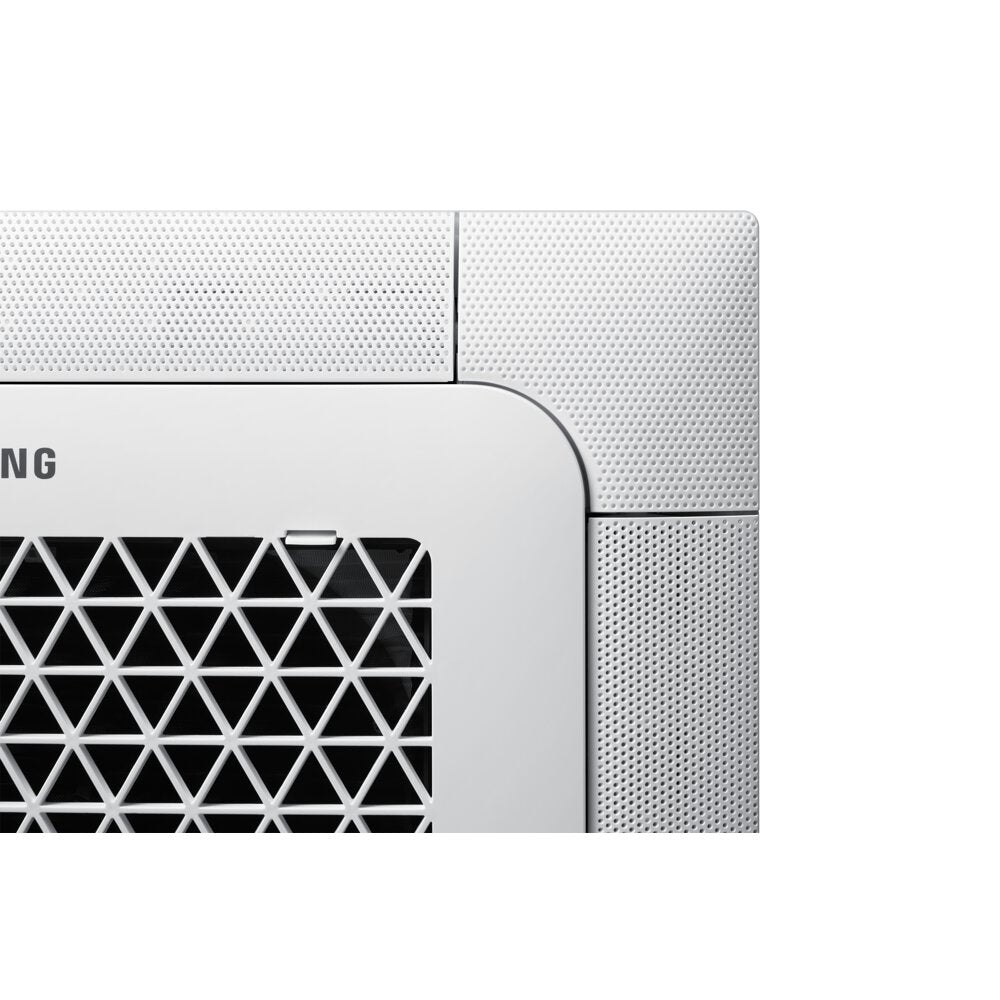

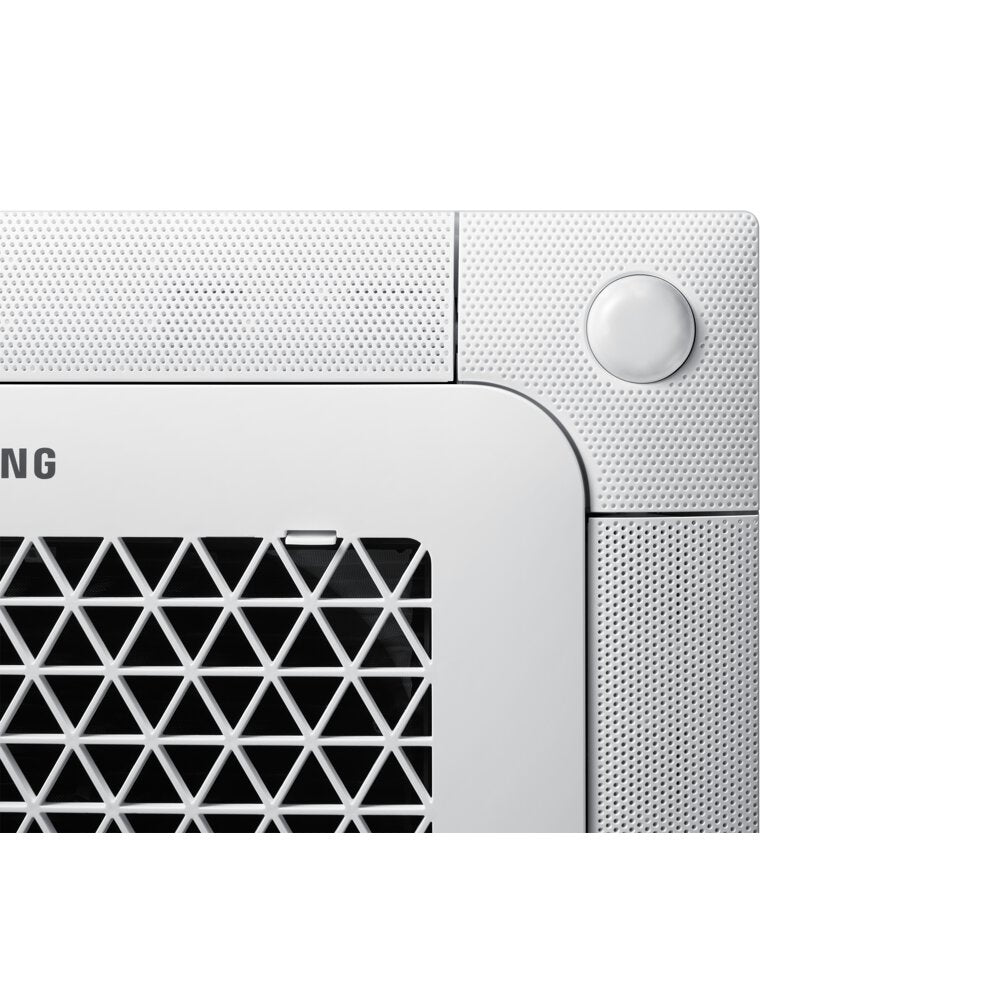

Fascia Panel Width (mm)
620mm
Fascia Panel Depth (mm)
630mm
Fascia Panel Height (mm)
46mm
