system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category

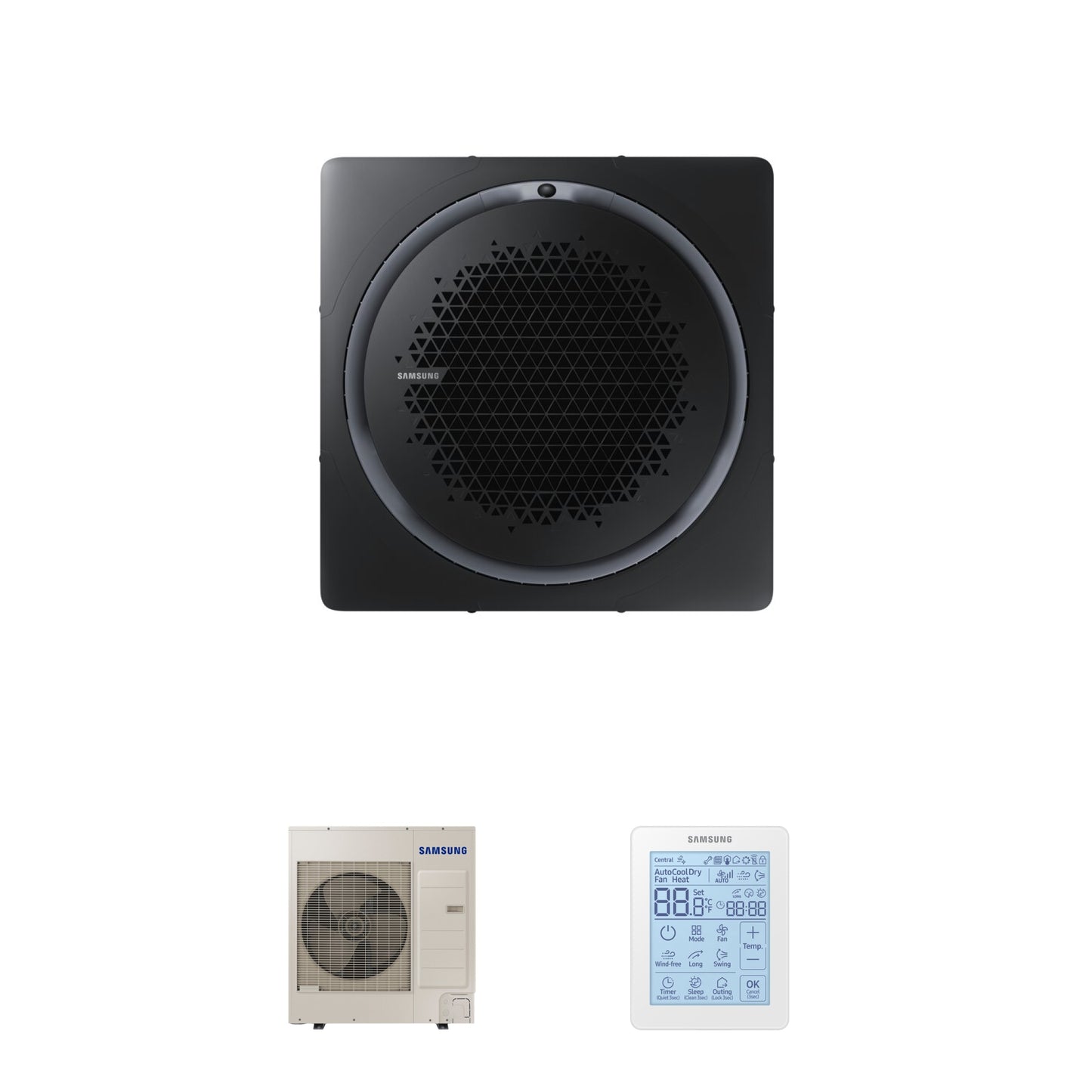

360 Cassette
Accessories
Drain Pump
Included

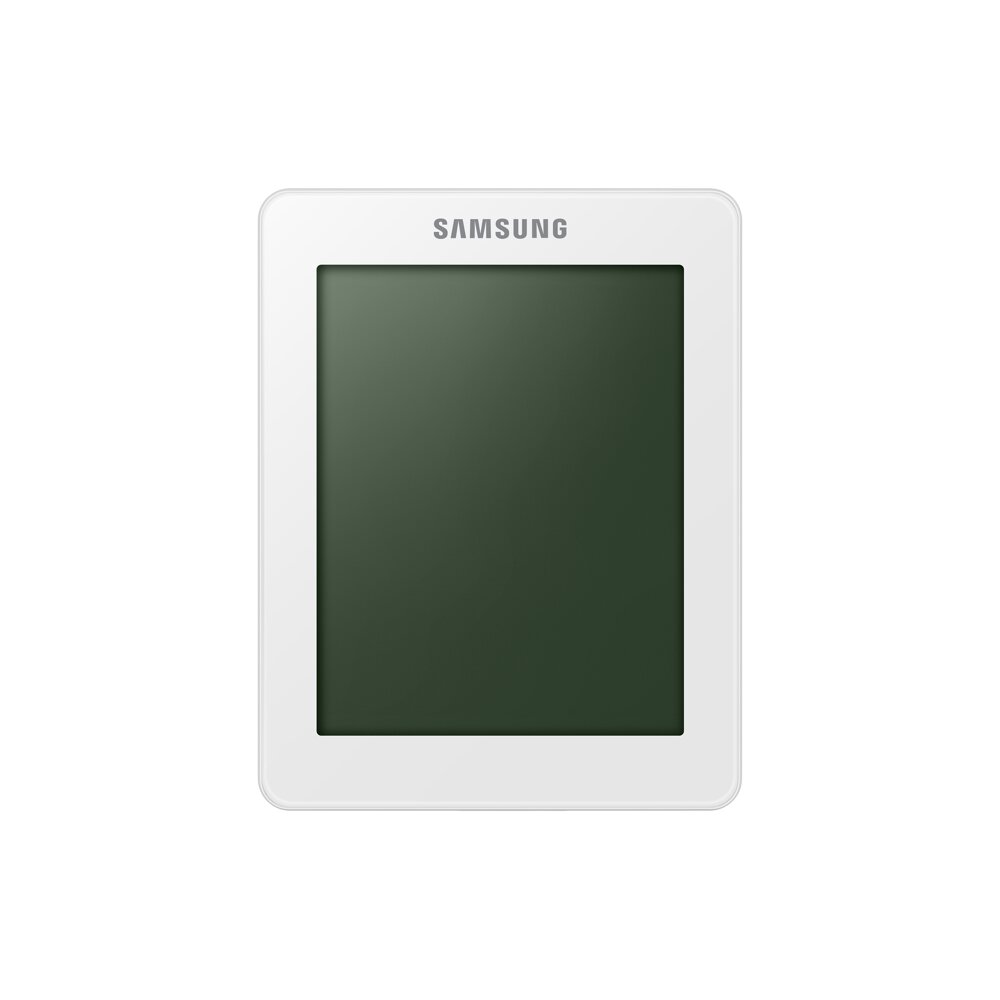

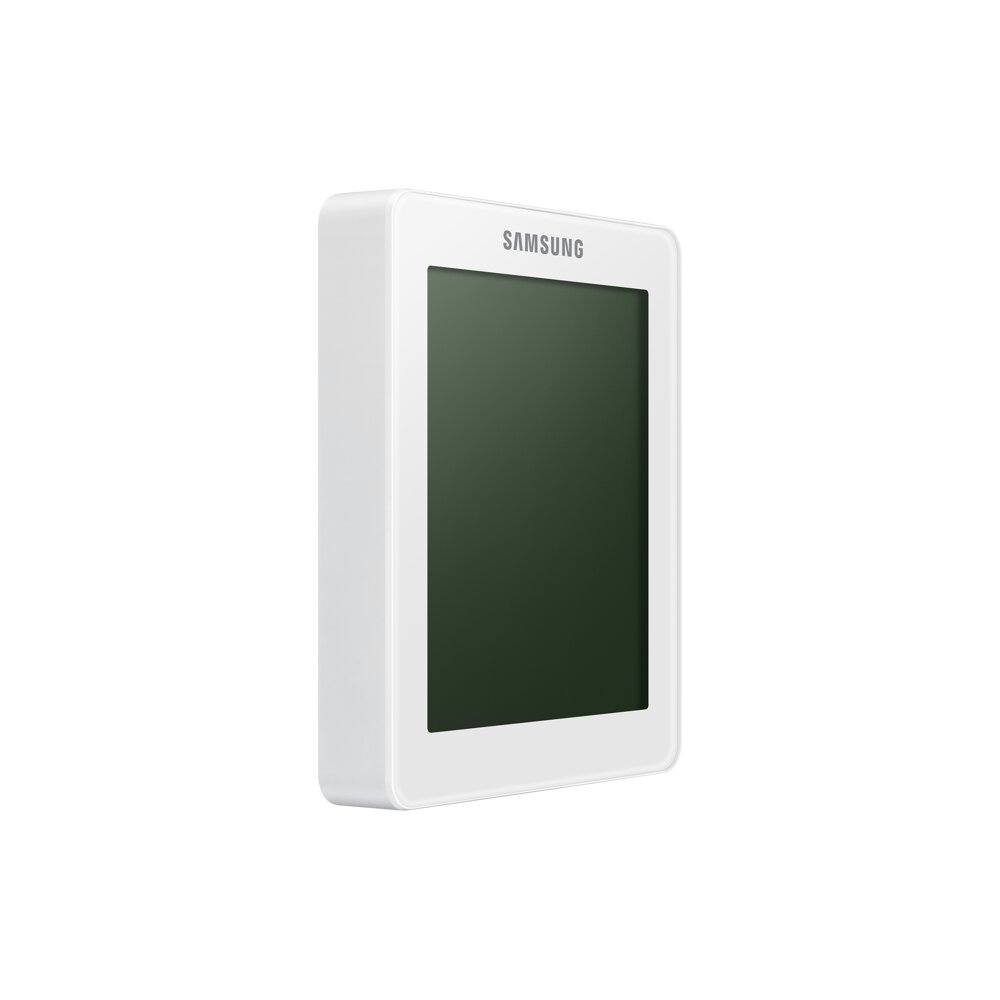

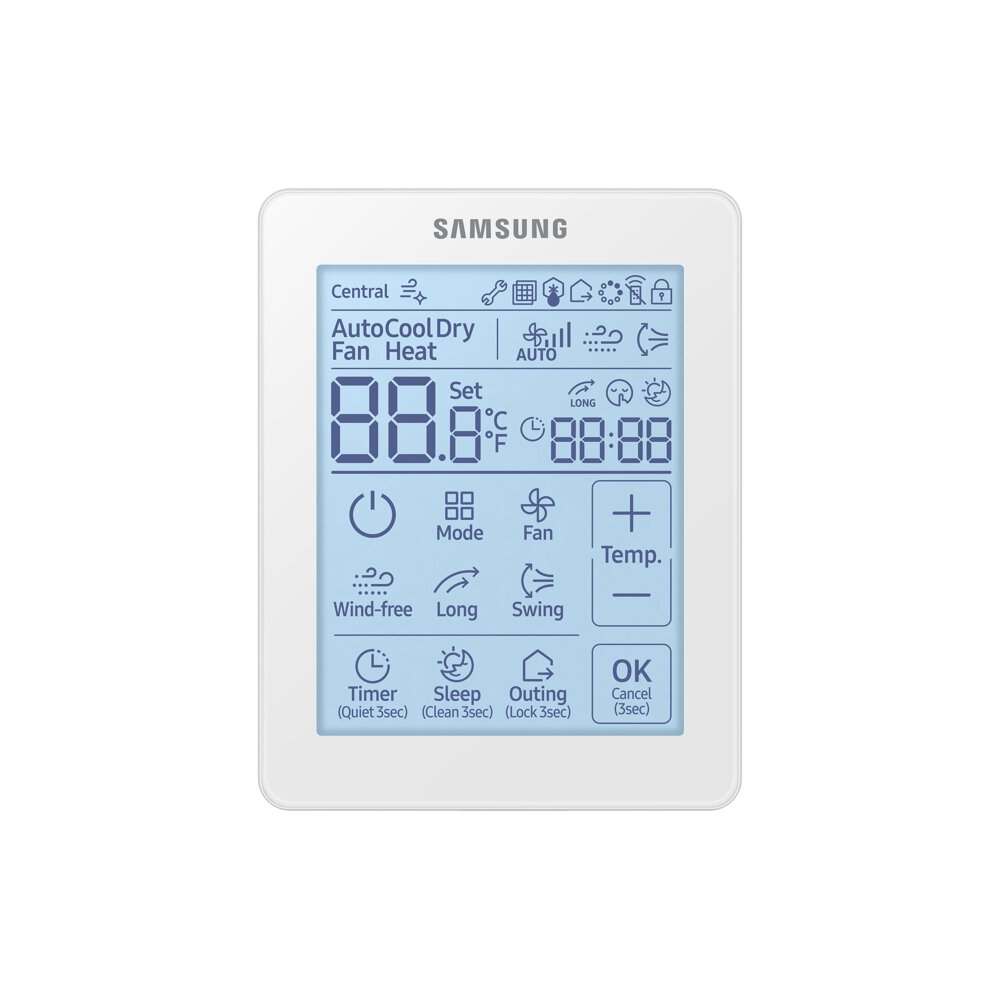

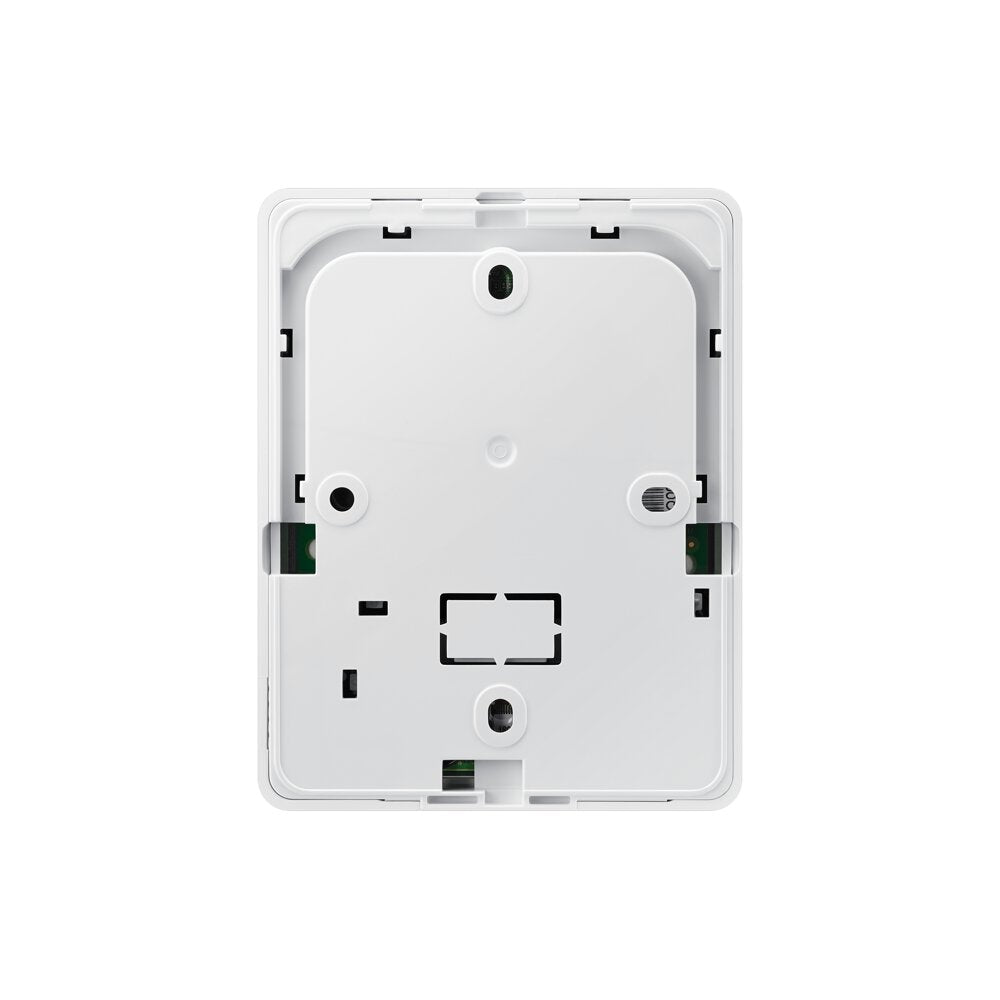

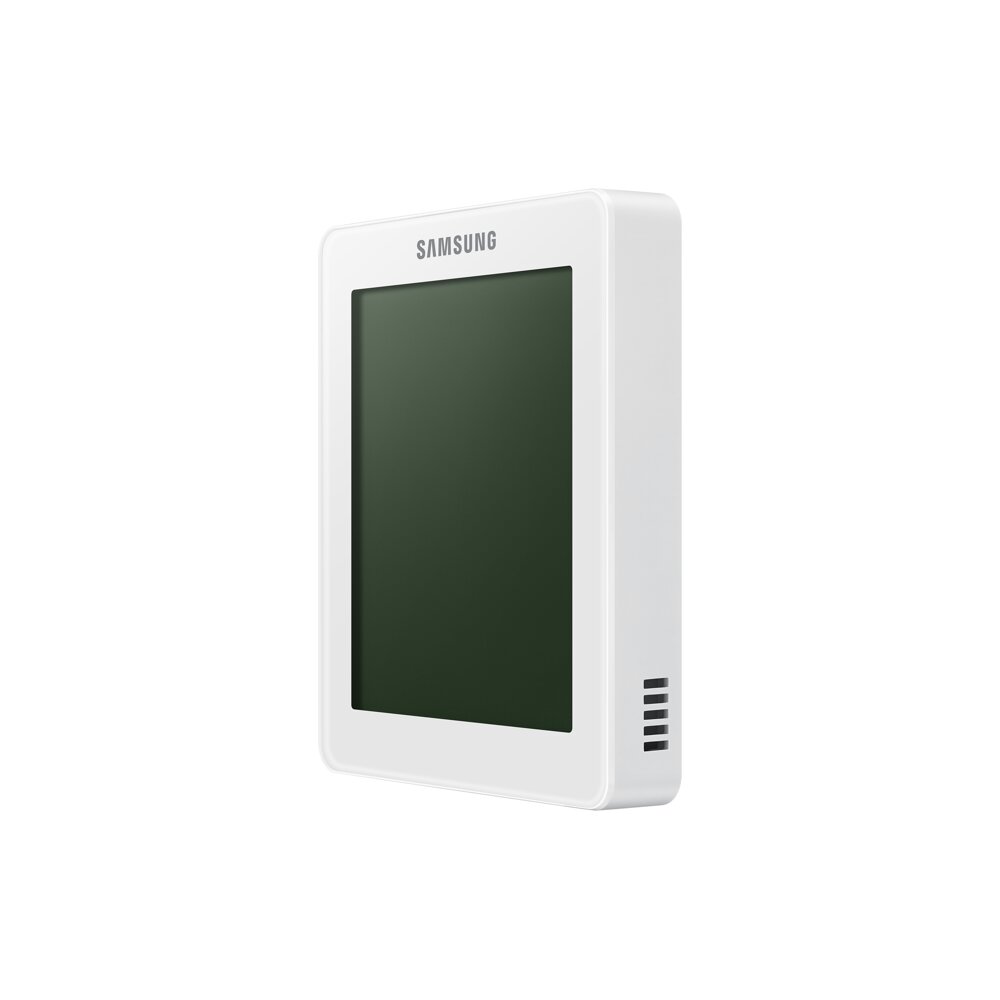

Controller Type
Simplified wired
Efficiency
SEER
6.8
SCOP
4.3
Noise rating
Indoor Unit Sound (Power) (dB(A))
61dB(A)
Indoor Unit Sound (Pressure) (dB(A))
44dB(A)
Outdoor Unit Sound (Power) (dB(A))
69dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
54dB(A)
Output power
Cooling kW
10.0kW
Heating kW
11.2kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
17.1
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
17.1
Product features
Refrigerant
R32
Colour
Black
BMS Ready
Yes
Drain Pump Lift
750
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
50g/m

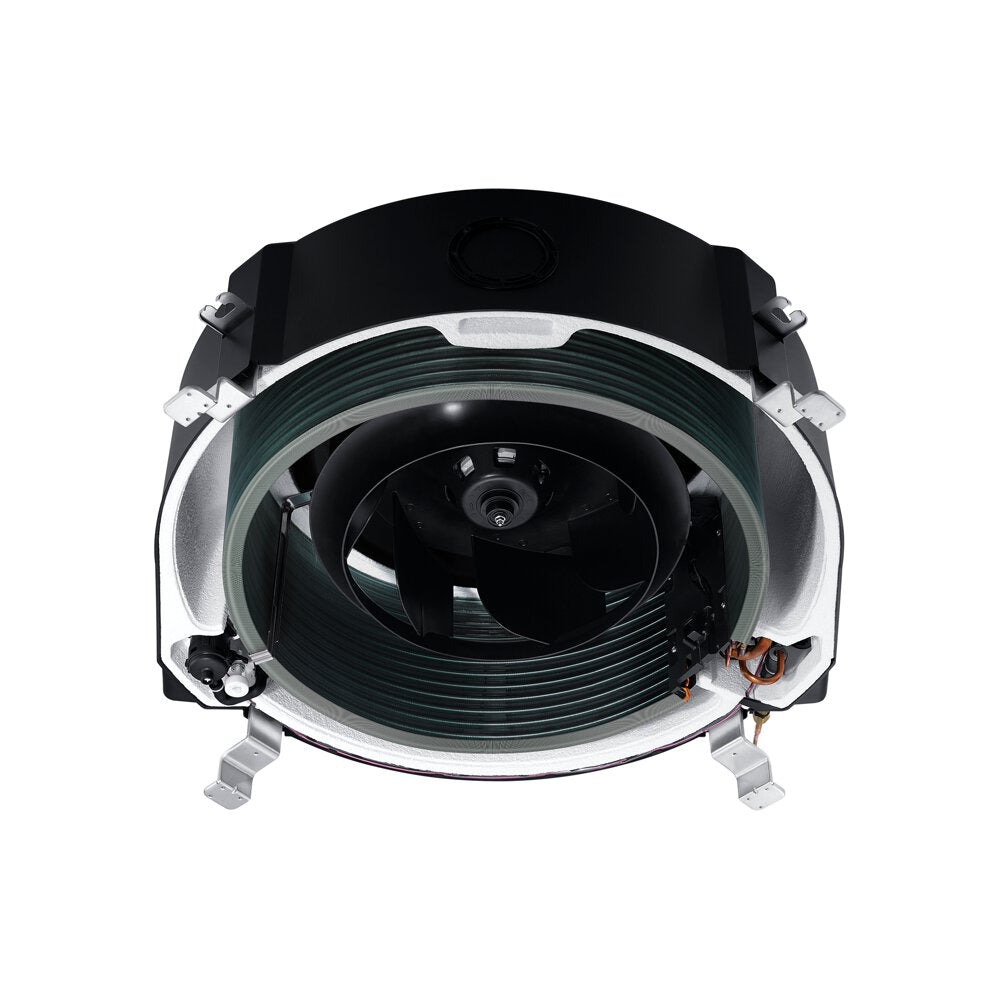

Indoor Unit Width (mm)
947mm
Indoor Unit Depth (mm)
947mm
Indoor Unit Height (mm)
365mm
Indoor Unit Weight (kg)
23.5kg

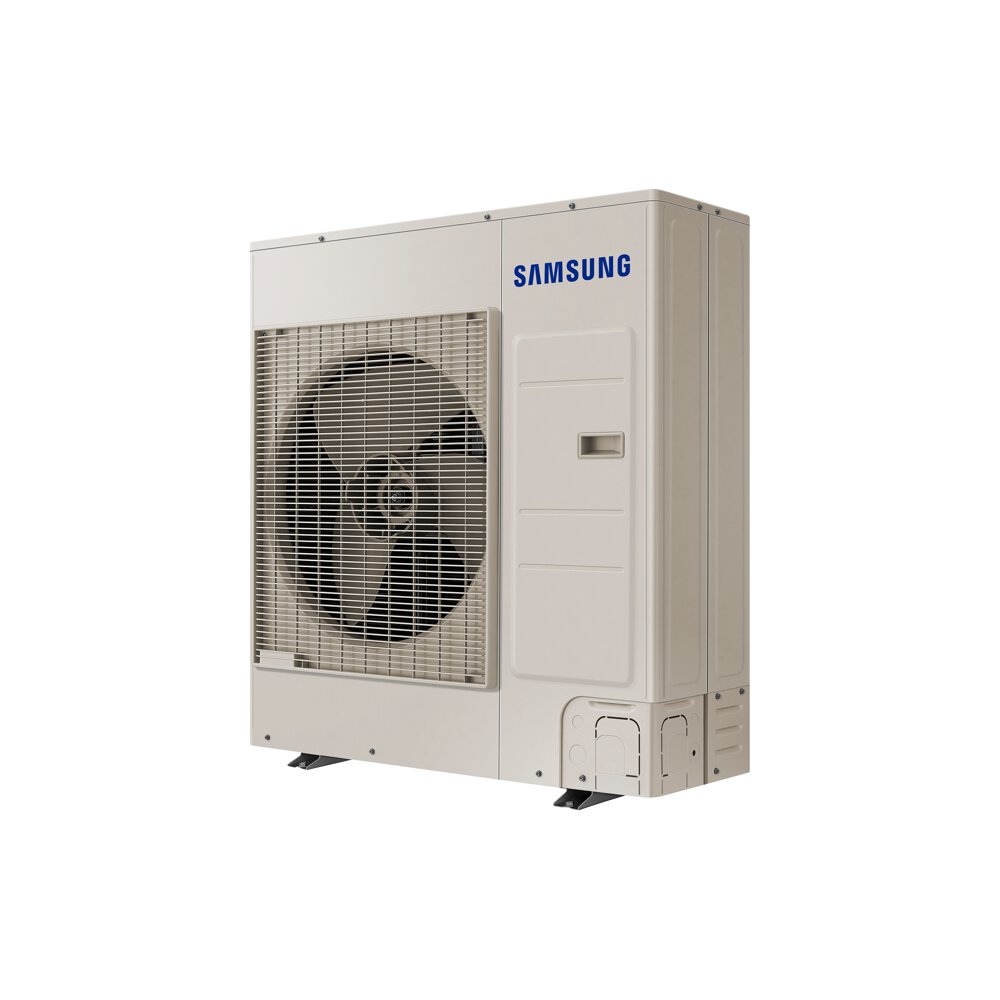

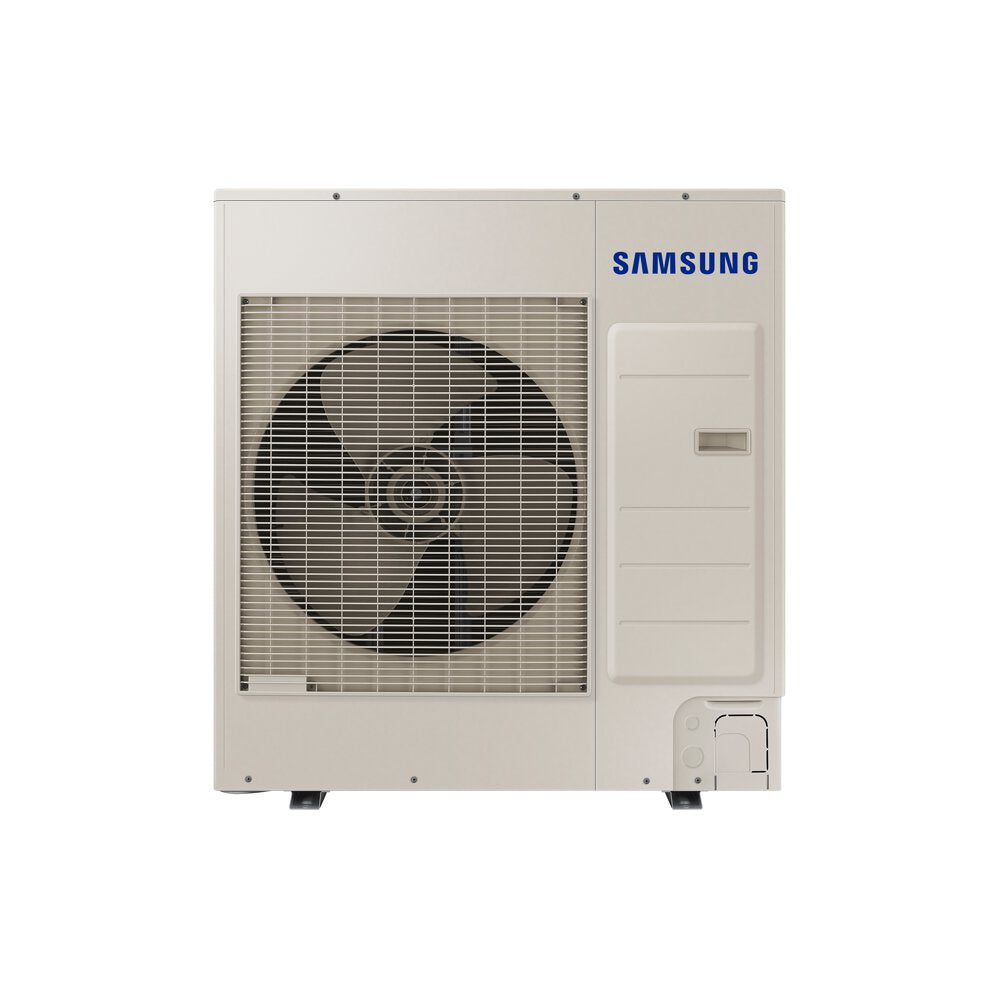

Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
998mm
Outdoor Unit Weight (kg)
74.0kg

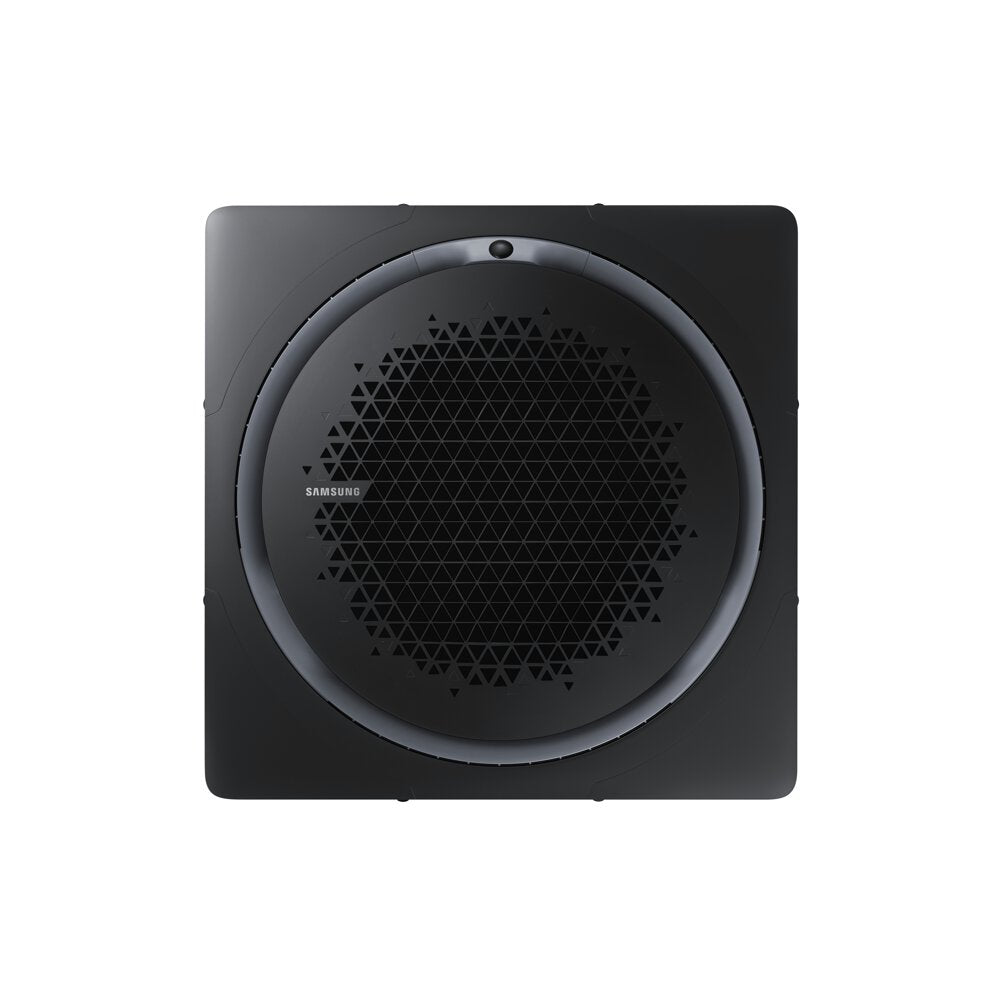

Fascia Panel Width (mm)
1000mm
Fascia Panel Depth (mm)
1000mm
Fascia Panel Height (mm)
66mm
