system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category

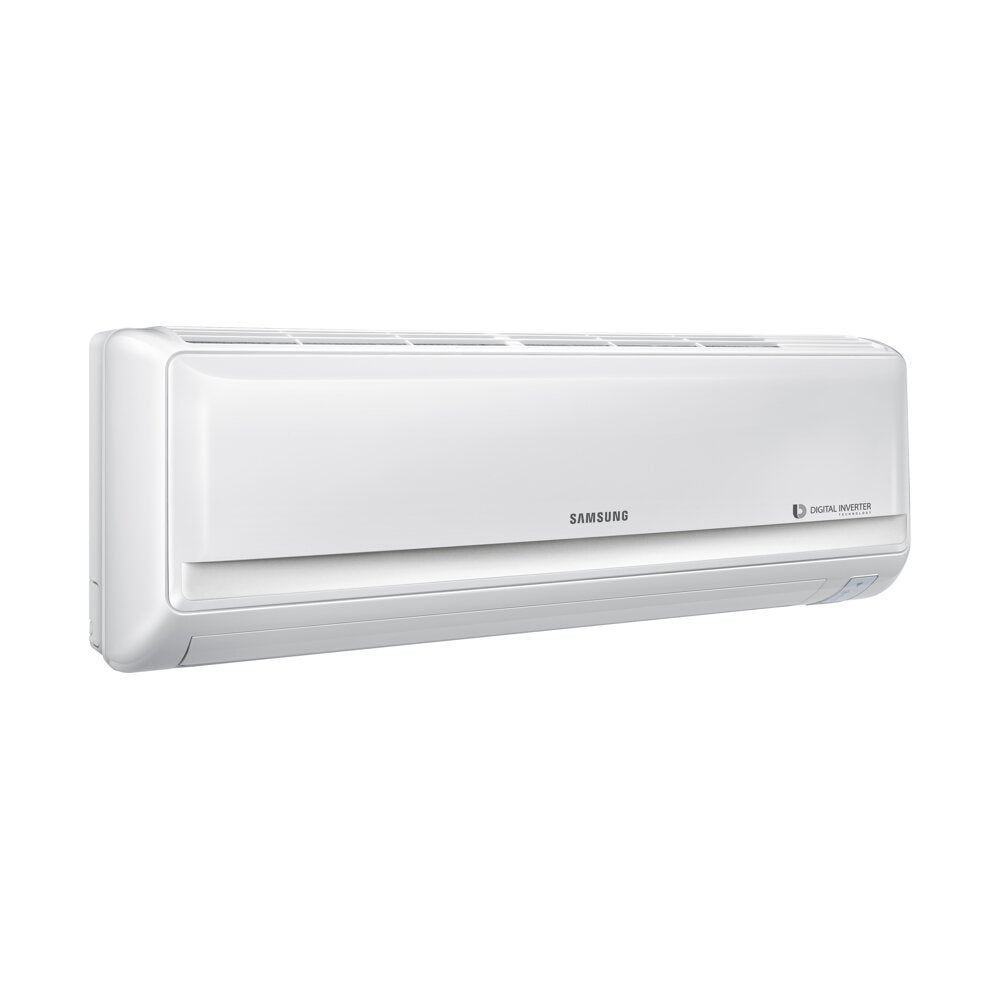

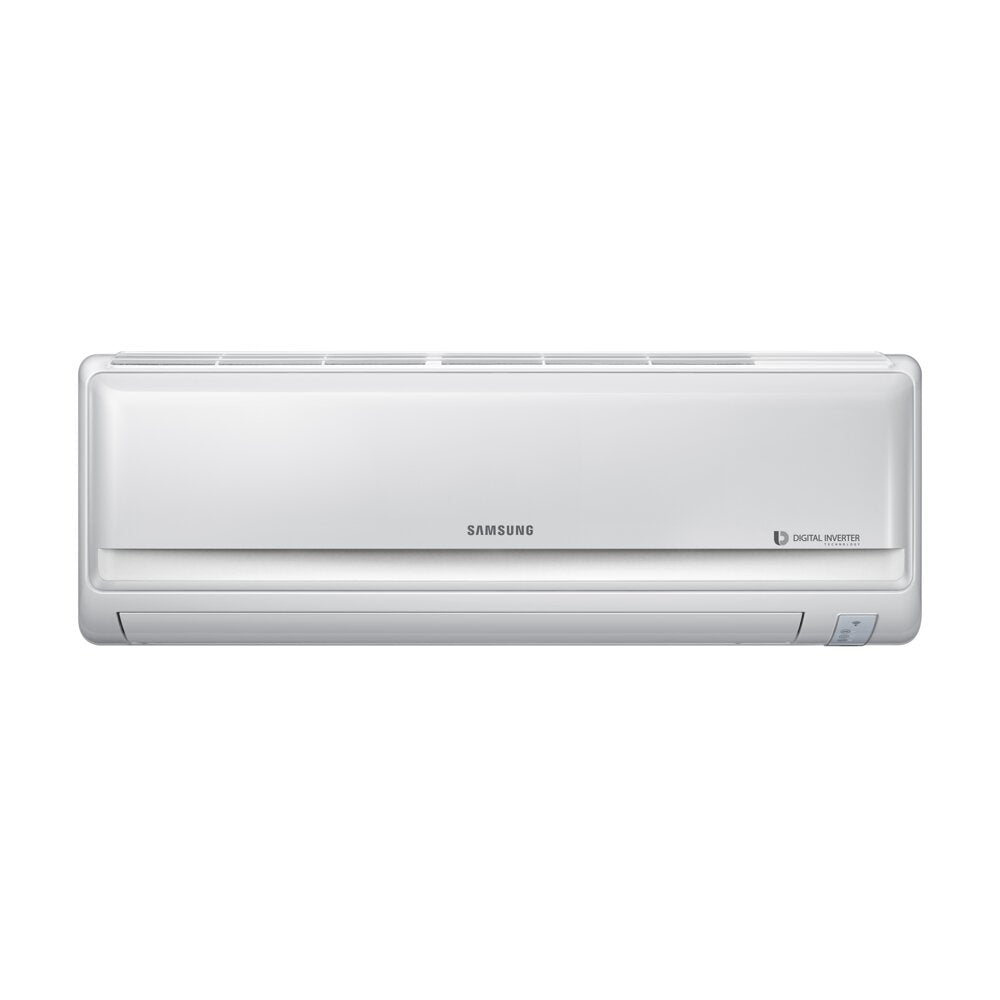

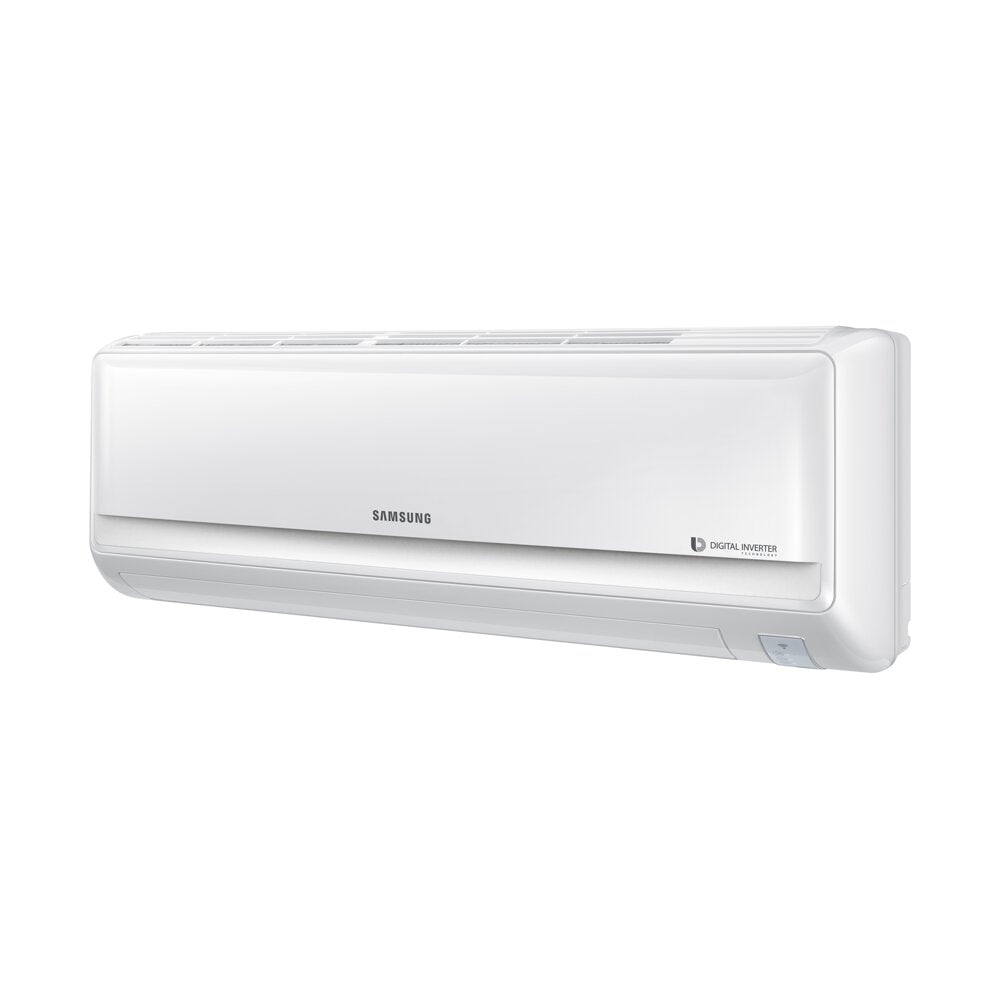

Wall mounted
Accessories
Controller Type

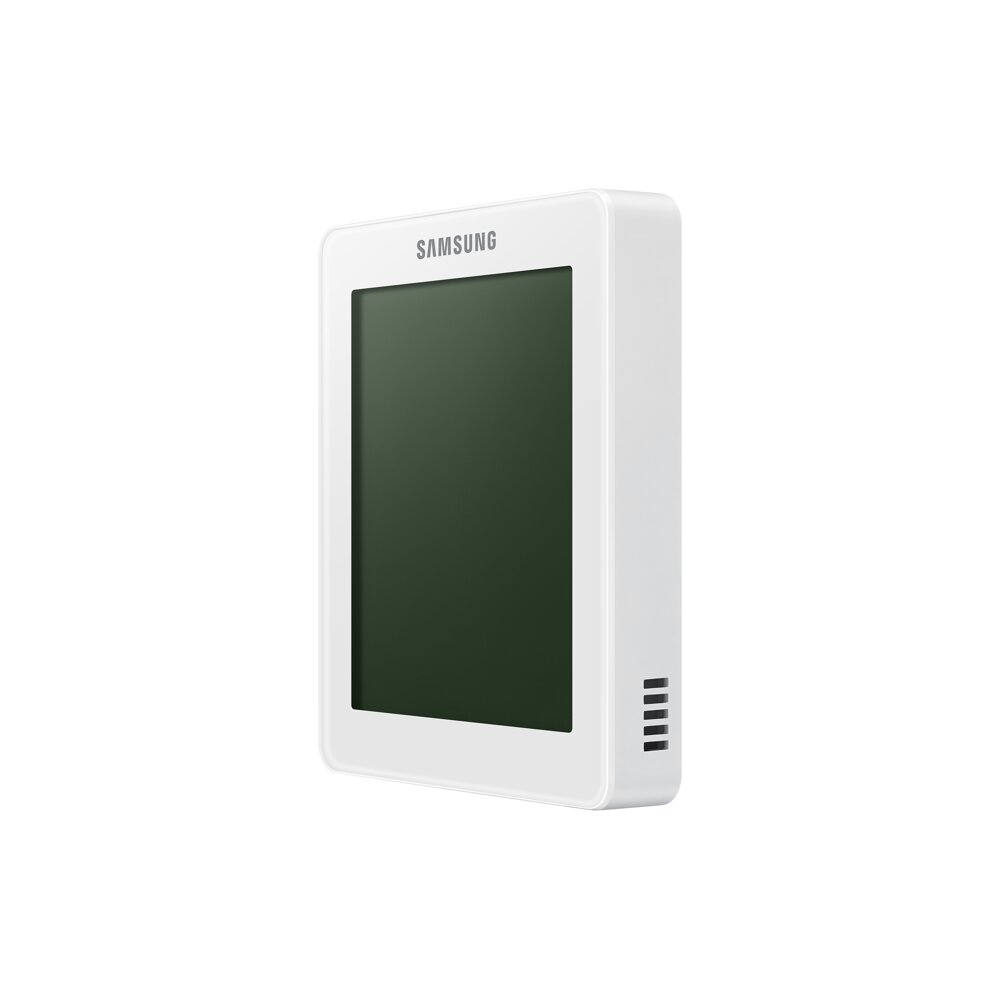

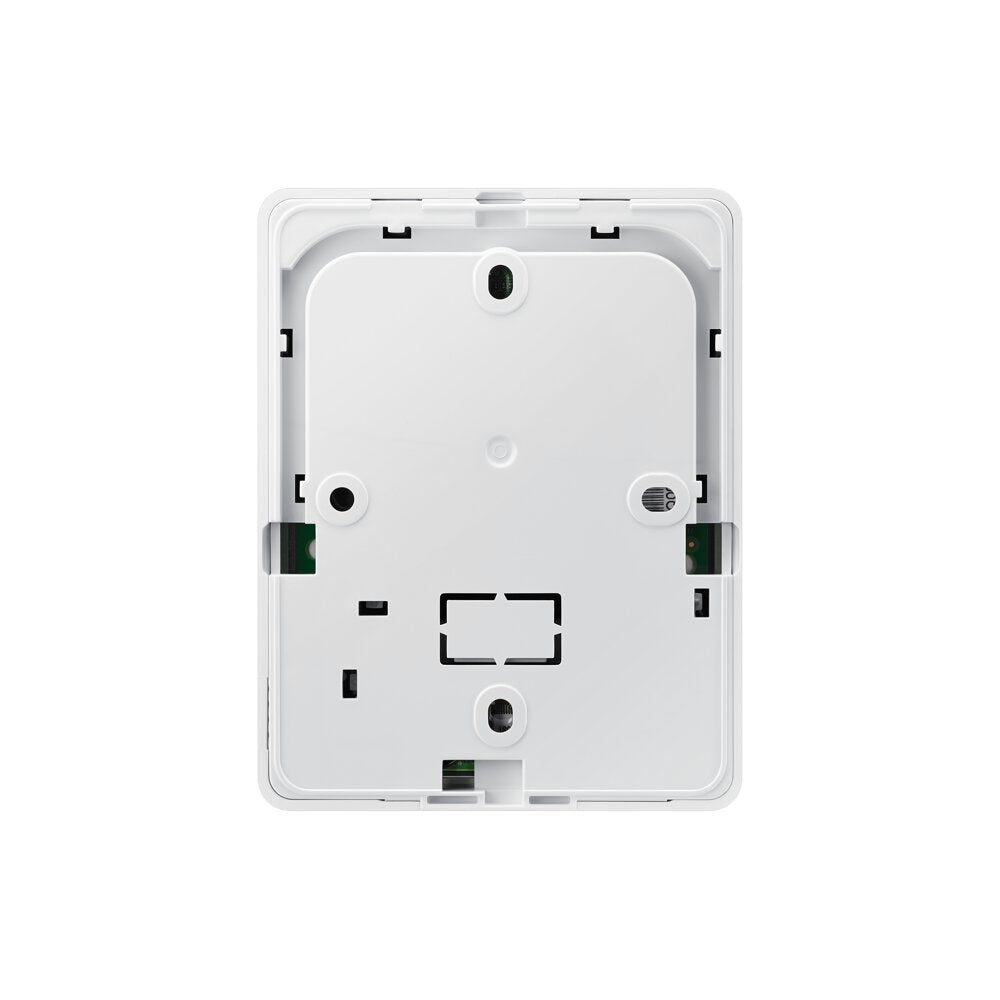

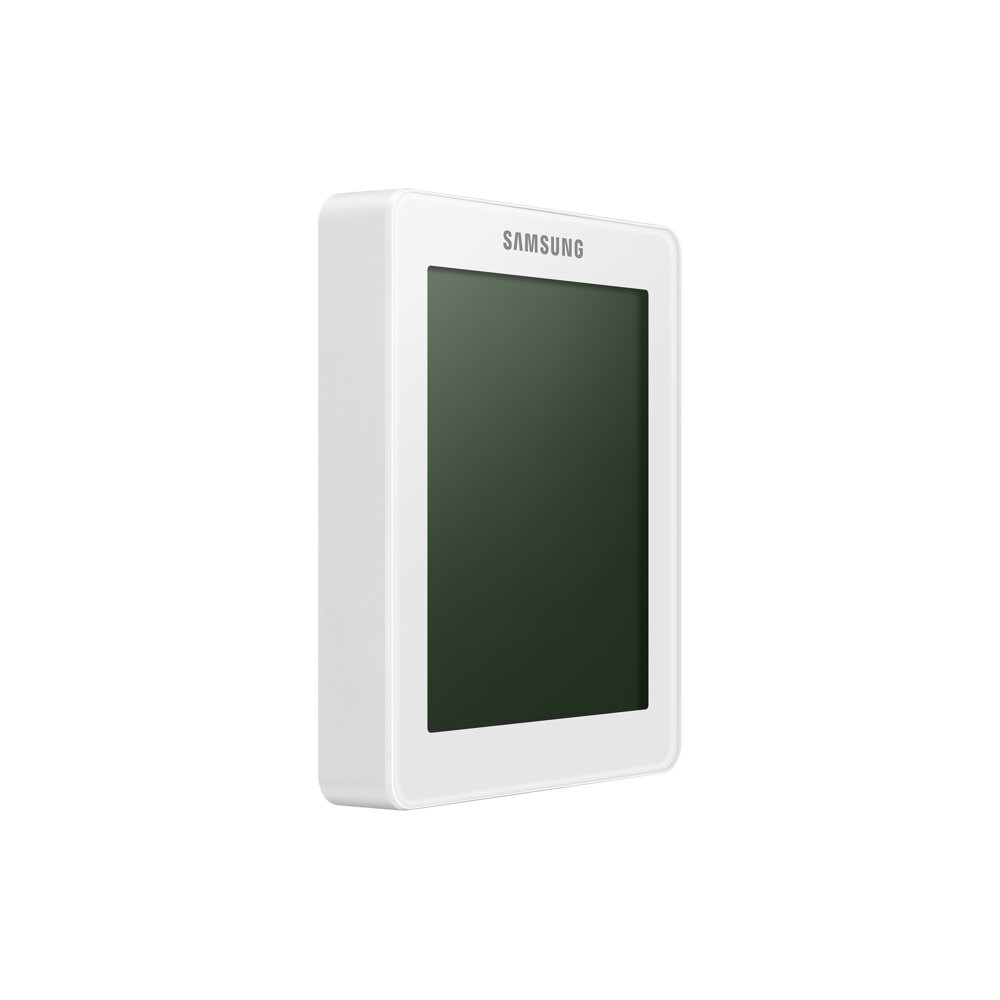

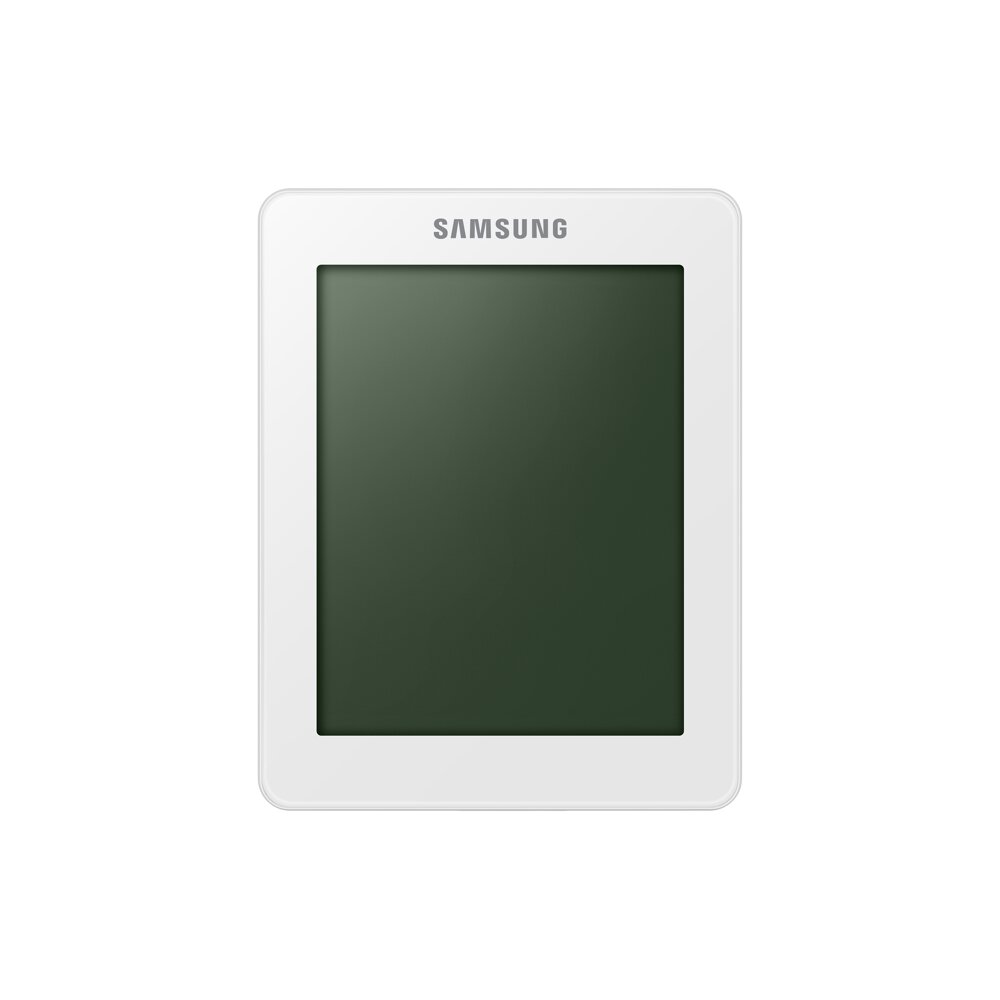

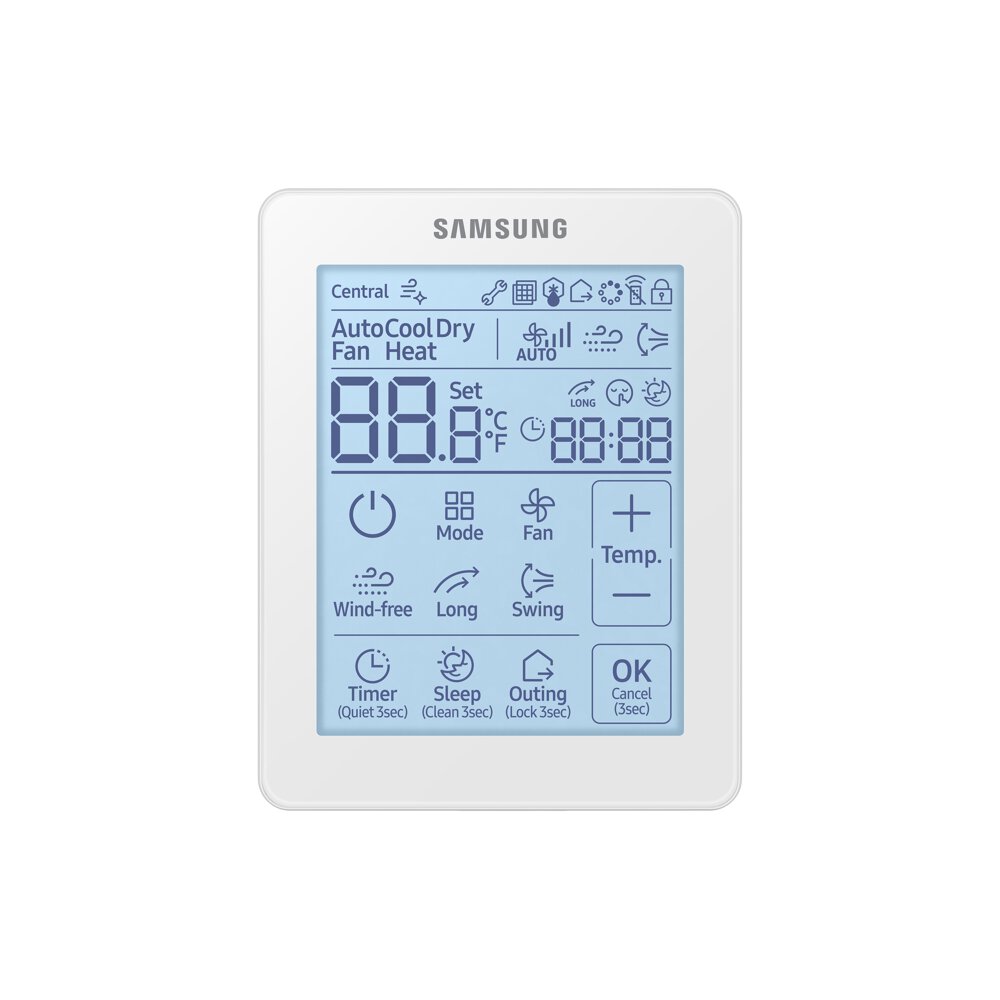

Simplified wired
Efficiency
SEER
5.9
SCOP
4.0
Noise rating
Indoor Unit Sound (Power) (dB(A))
65dB(A)
Indoor Unit Sound (Pressure) (dB(A))
49dB(A)
Outdoor Unit Sound (Power) (dB(A))
74dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
69dB(A)
Output power
Cooling kW
9.5kW
Heating kW
10.8kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
17.1
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
17.1
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
50g/m
Indoor Unit Width (mm)
1280mm
Indoor Unit Depth (mm)
253mm
Indoor Unit Height (mm)
345mm
Indoor Unit Weight (kg)
18.5kg

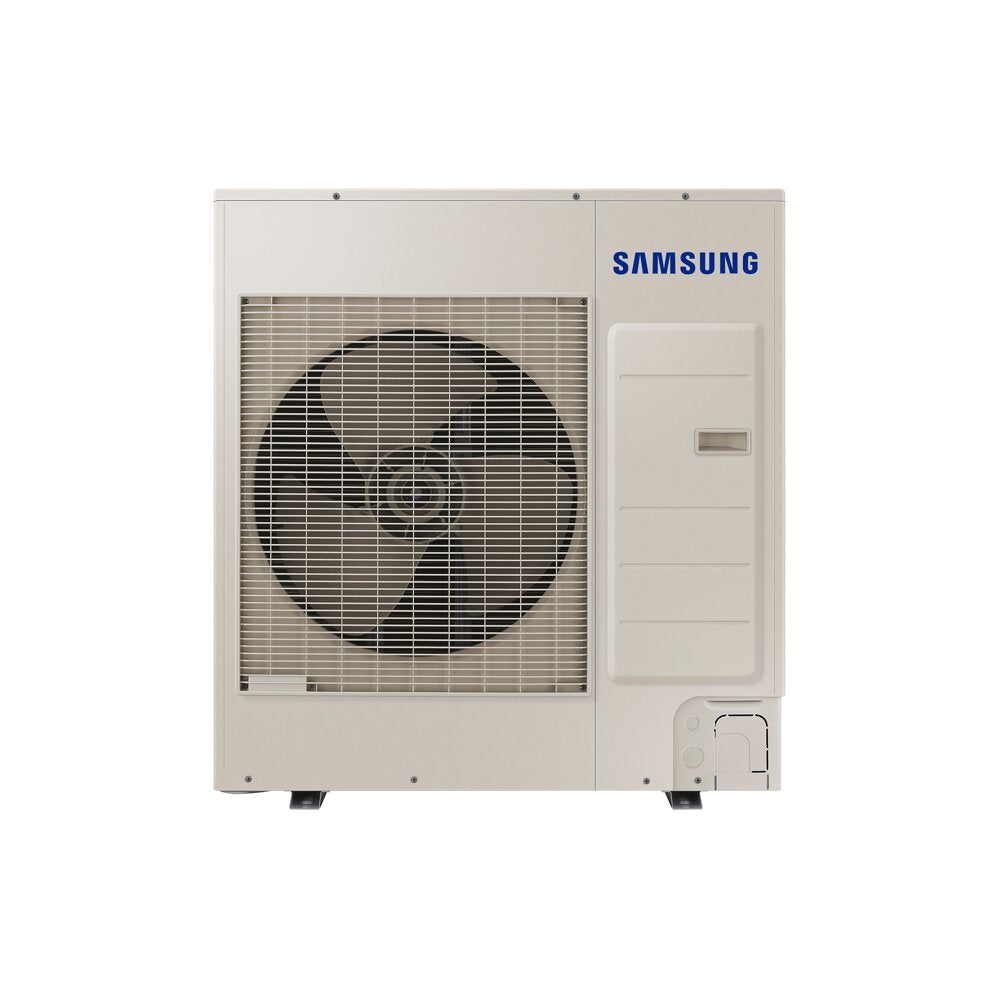

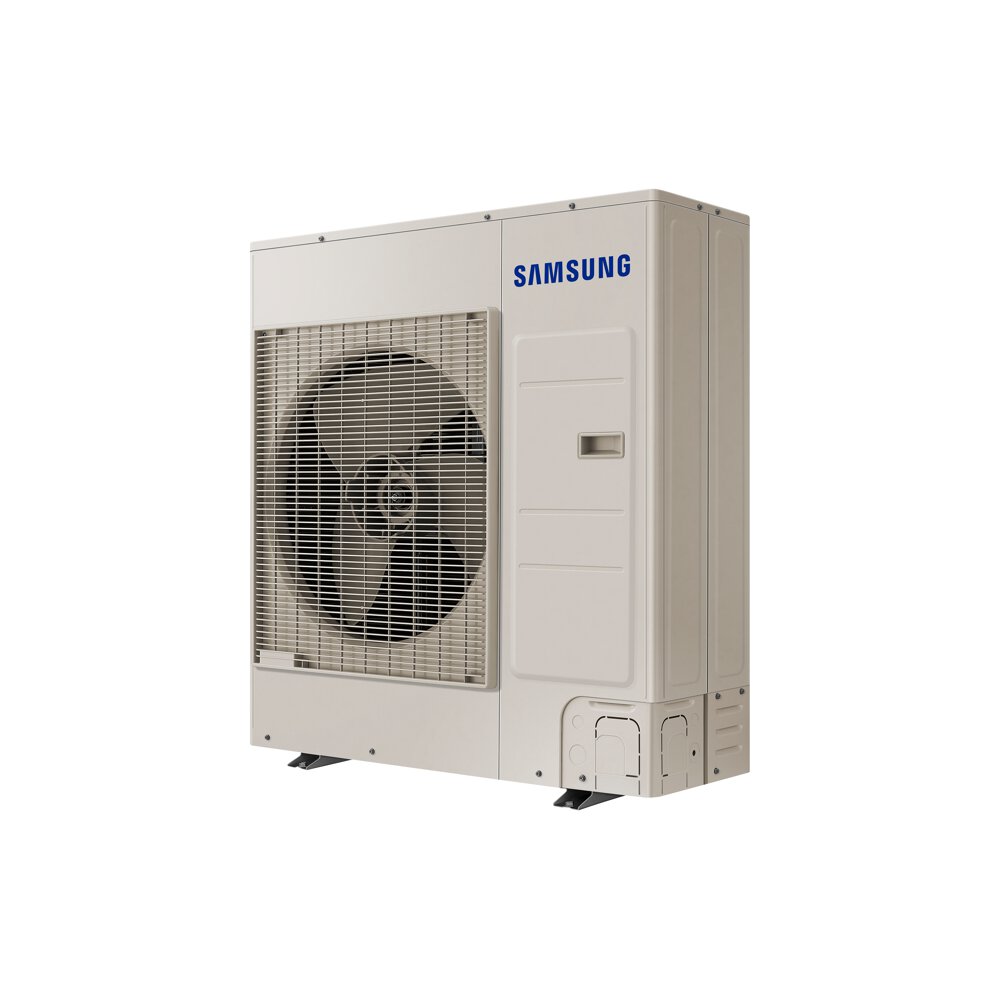

Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
998mm
Outdoor Unit Weight (kg)
74.0kg
