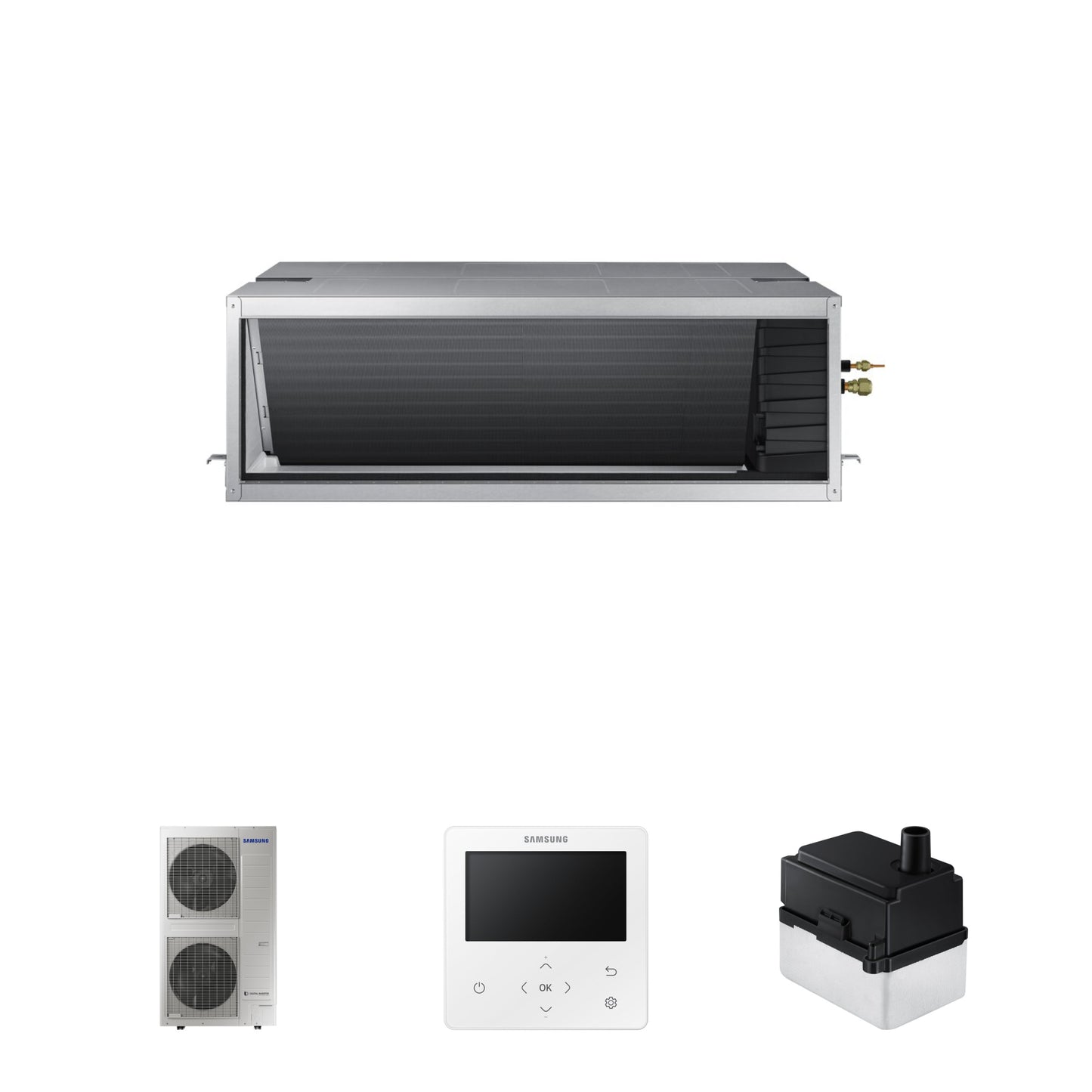

system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category
Ducted
Accessories

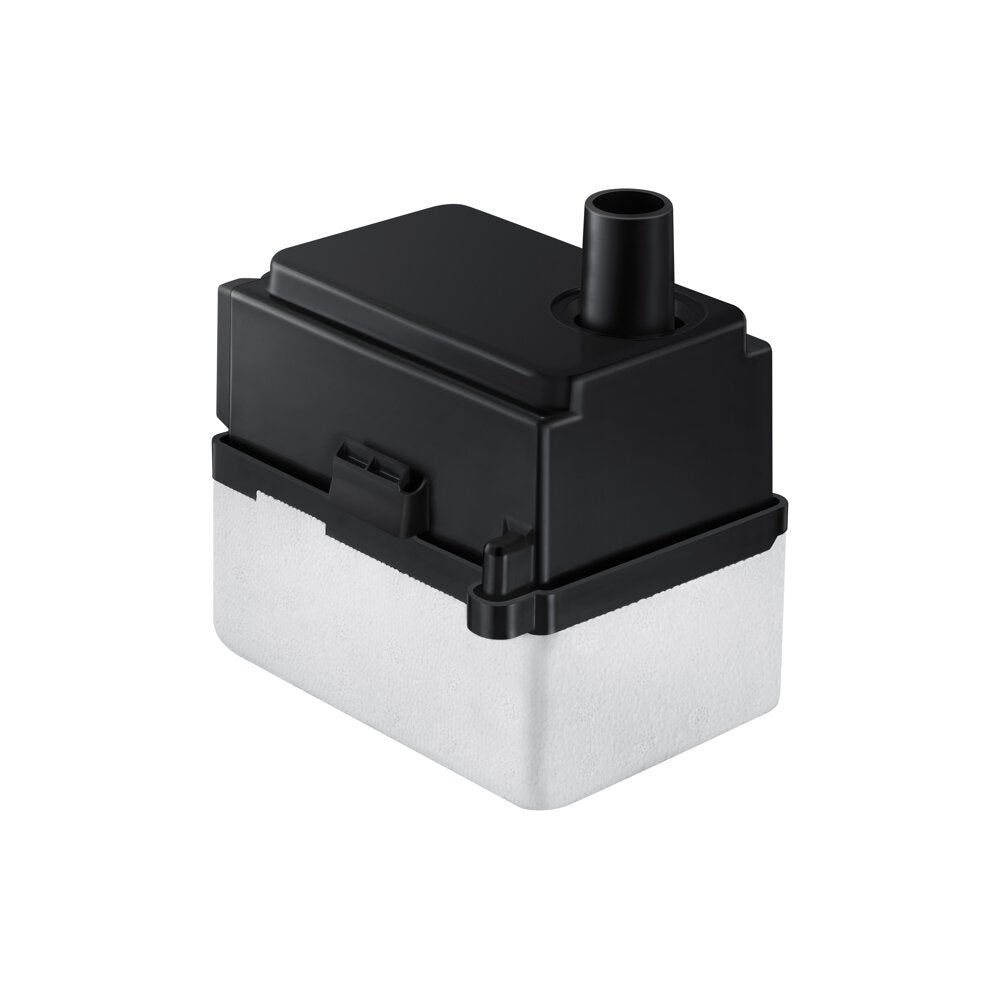

Drain Pump
Included

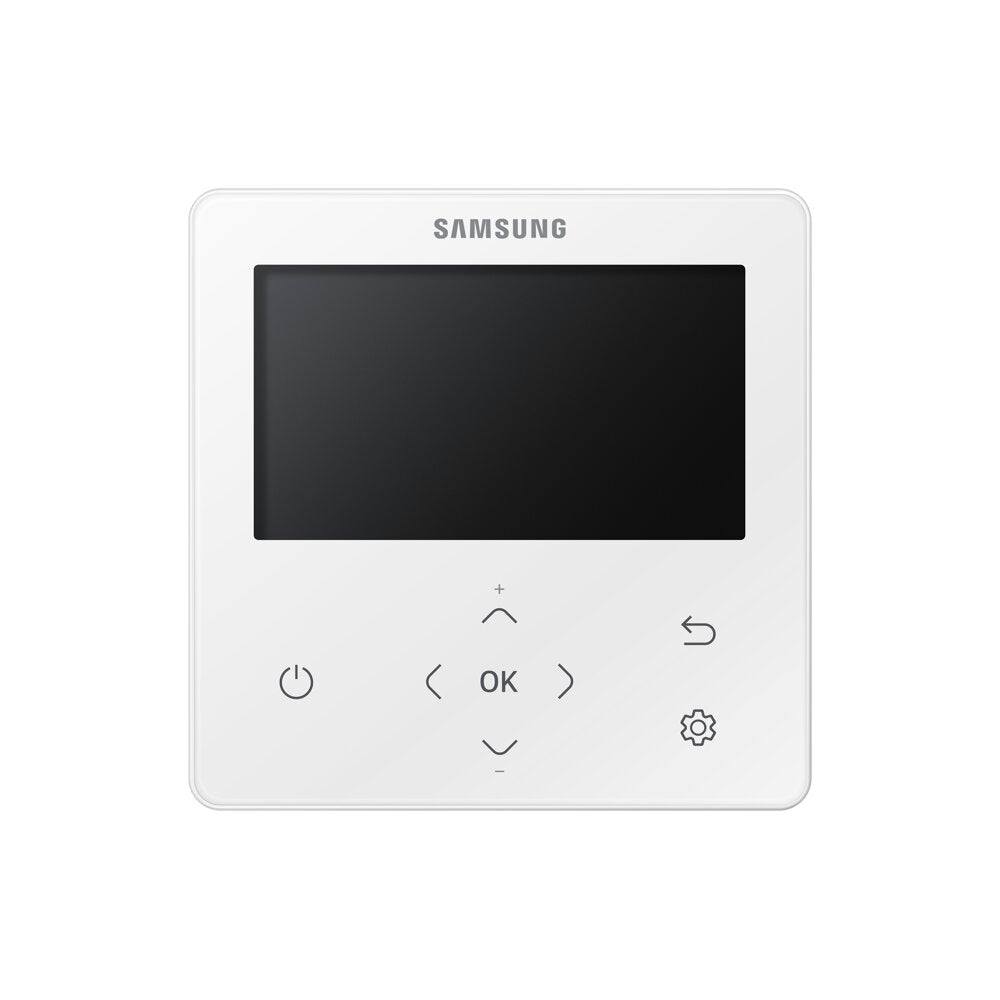

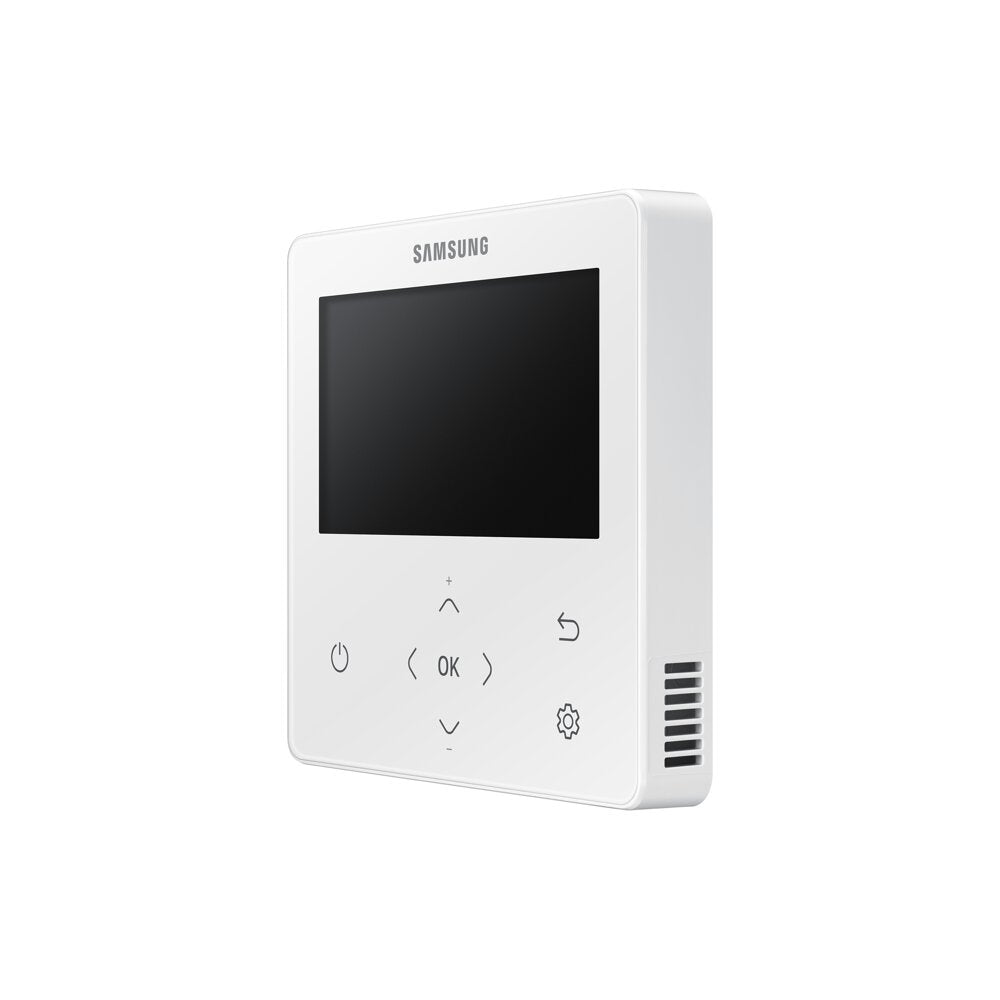

Controller Type
Premium wired
Efficiency
SEER
2.6
SCOP
3.2
Noise rating
Indoor Unit Sound (Power) (dB(A))
72dB(A)
Indoor Unit Sound (Pressure) (dB(A))
47dB(A)
Outdoor Unit Sound (Power) (dB(A))
77dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
61dB(A)
Output power
Cooling kW
25.0kW
Heating kW
27.0kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Three Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
31.25
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
25
Product features
Refrigerant
R410A
Static Pressure (Pa)
196Pa
Colour
Steel
BMS Ready
Yes
Drain Pump Lift
750
Weights & dimensions
Pipe size (Liquid (mm))
15.9mm
Pipe size (Gas(mm))
22.3mm
Max Pipe length (m)
75m
Max Pipe height (m)
30m
Net Weight (kg)
0.0kg
Refrigerant Precharge length (m)
30m
Additional Charge (g/m)
50g/m
Weight Empty (kg)
0.0kg
Weight Full (kg)
0.0kg
Indoor Unit Width (mm)
1350mm
Indoor Unit Depth (mm)
910mm
Indoor Unit Height (mm)
450mm
Indoor Unit Weight (kg)
82.5kg
Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
460mm
Outdoor Unit Height (mm)
1630mm
Outdoor Unit Weight (kg)
154.0kg
