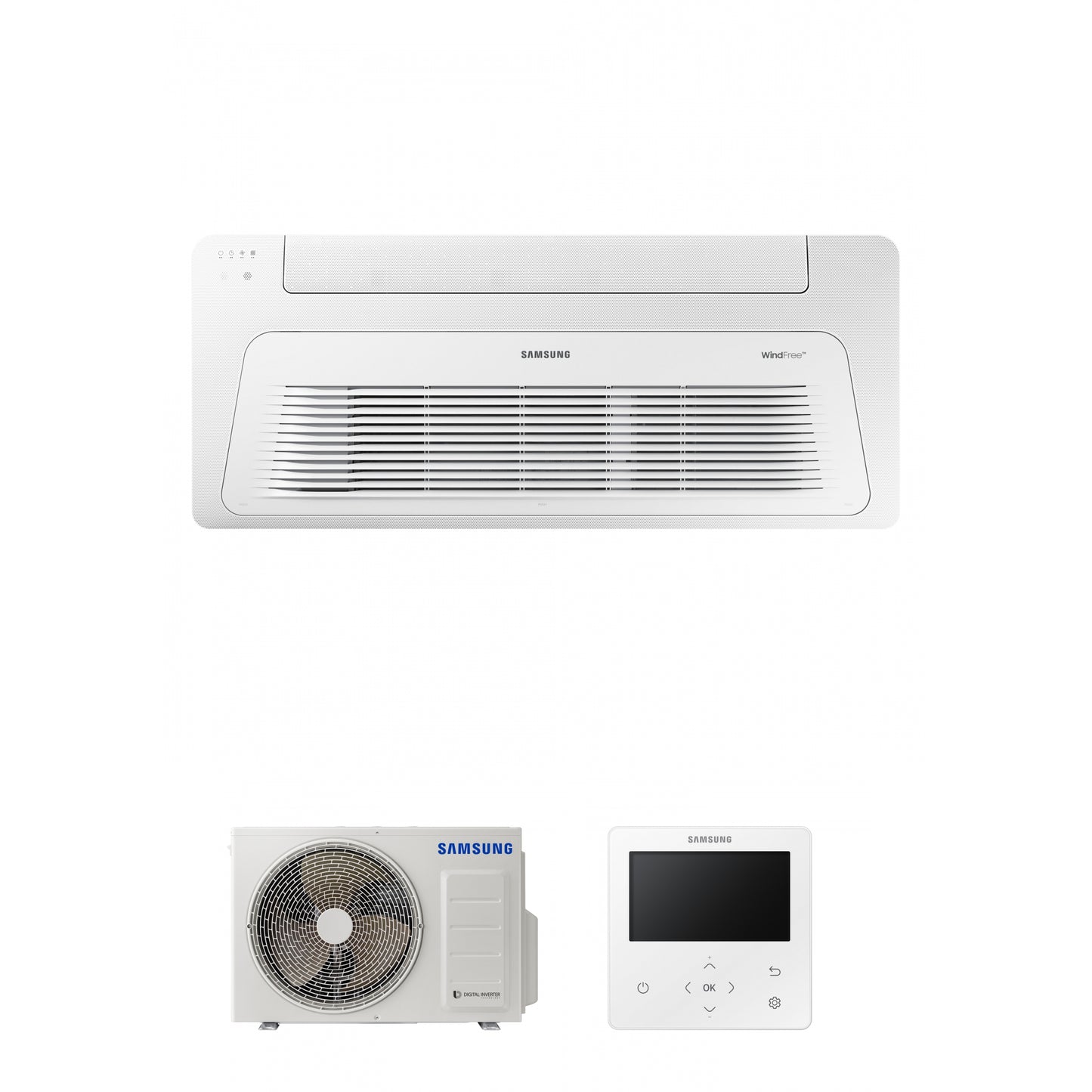

system includes
Technical details
Classification
Brand
Samsung
Clasification
CAC
Category

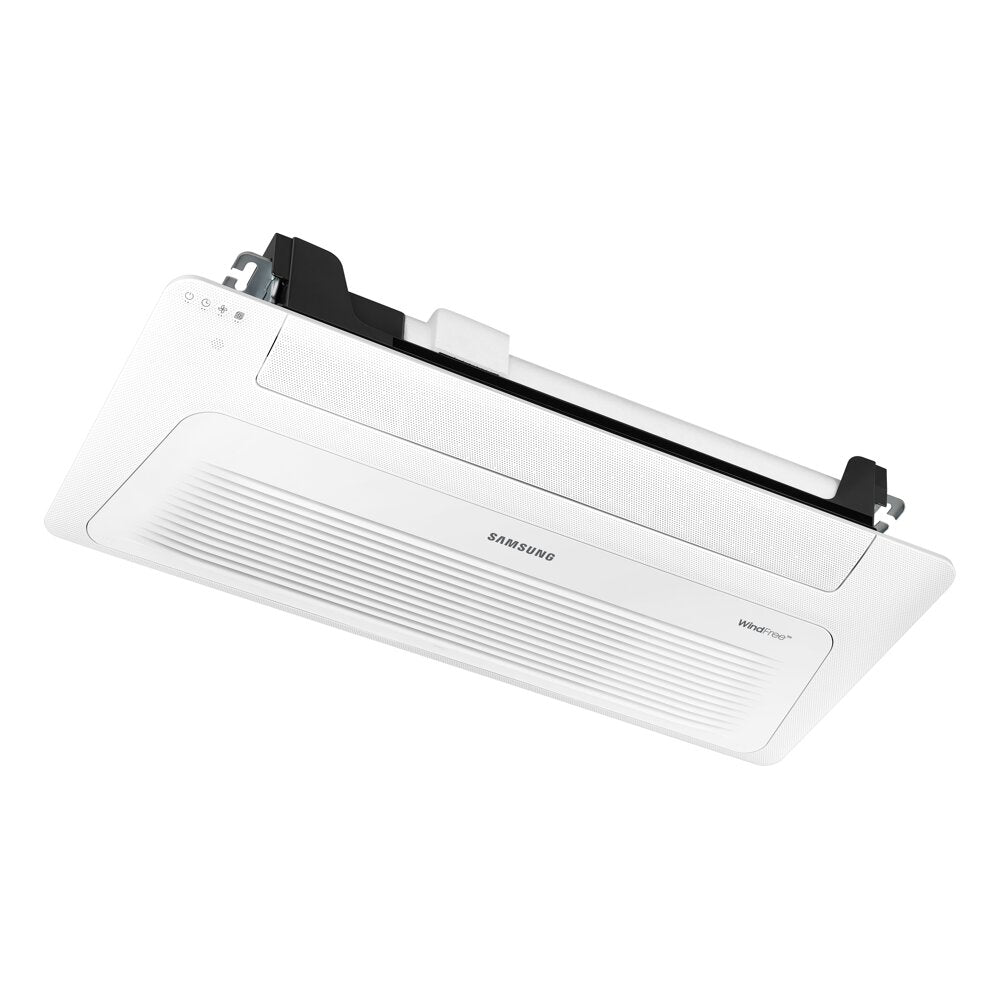

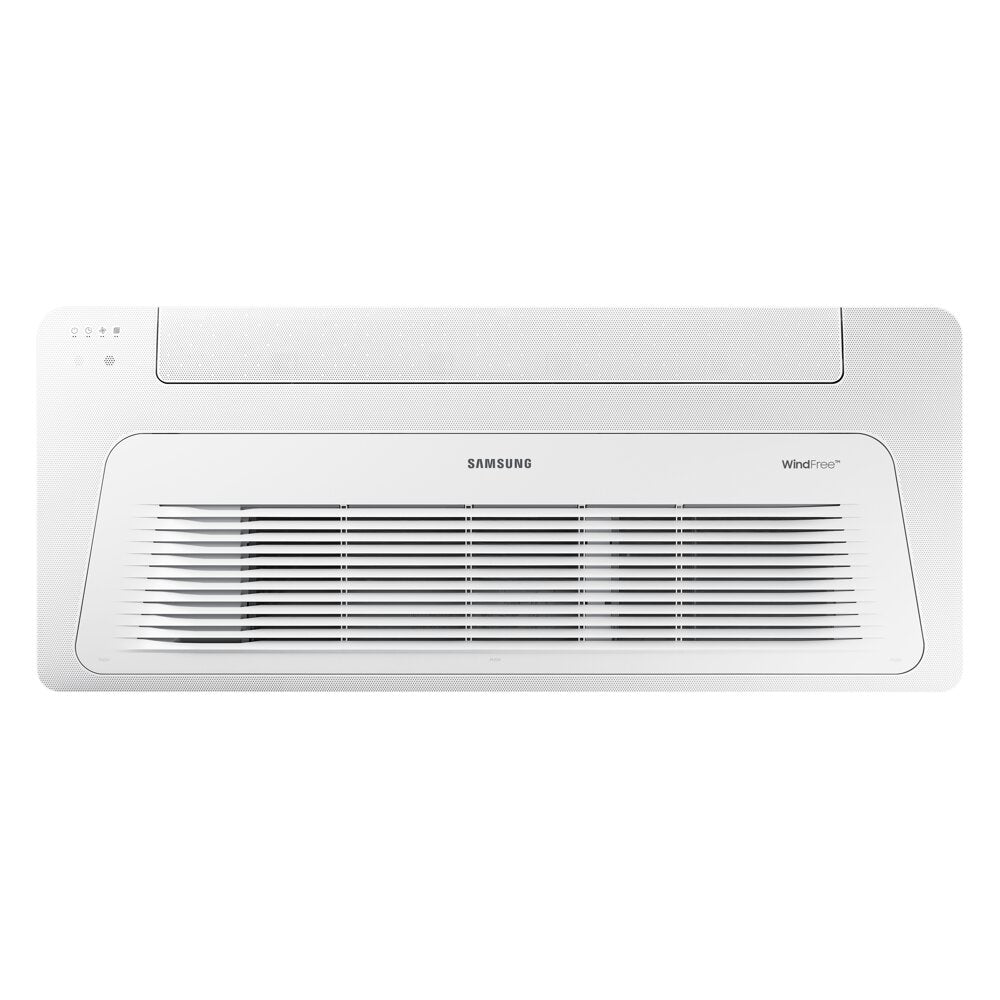

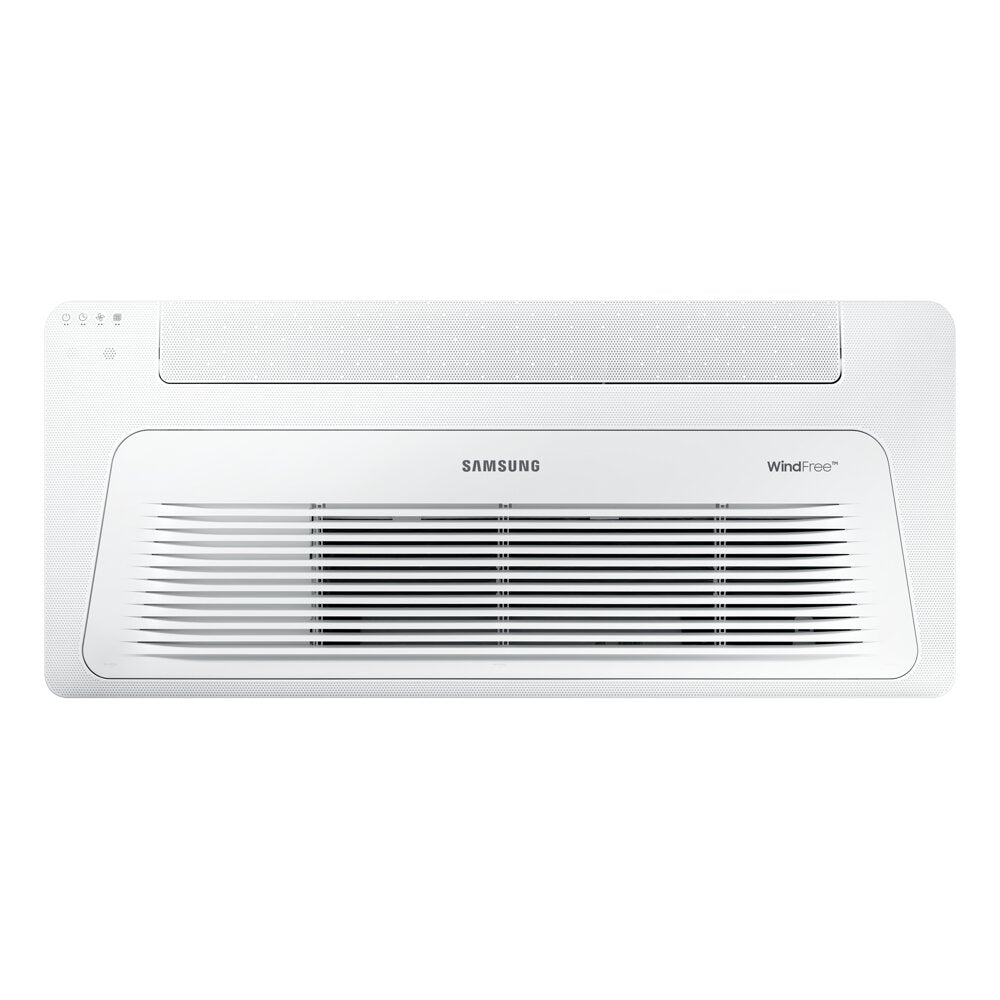

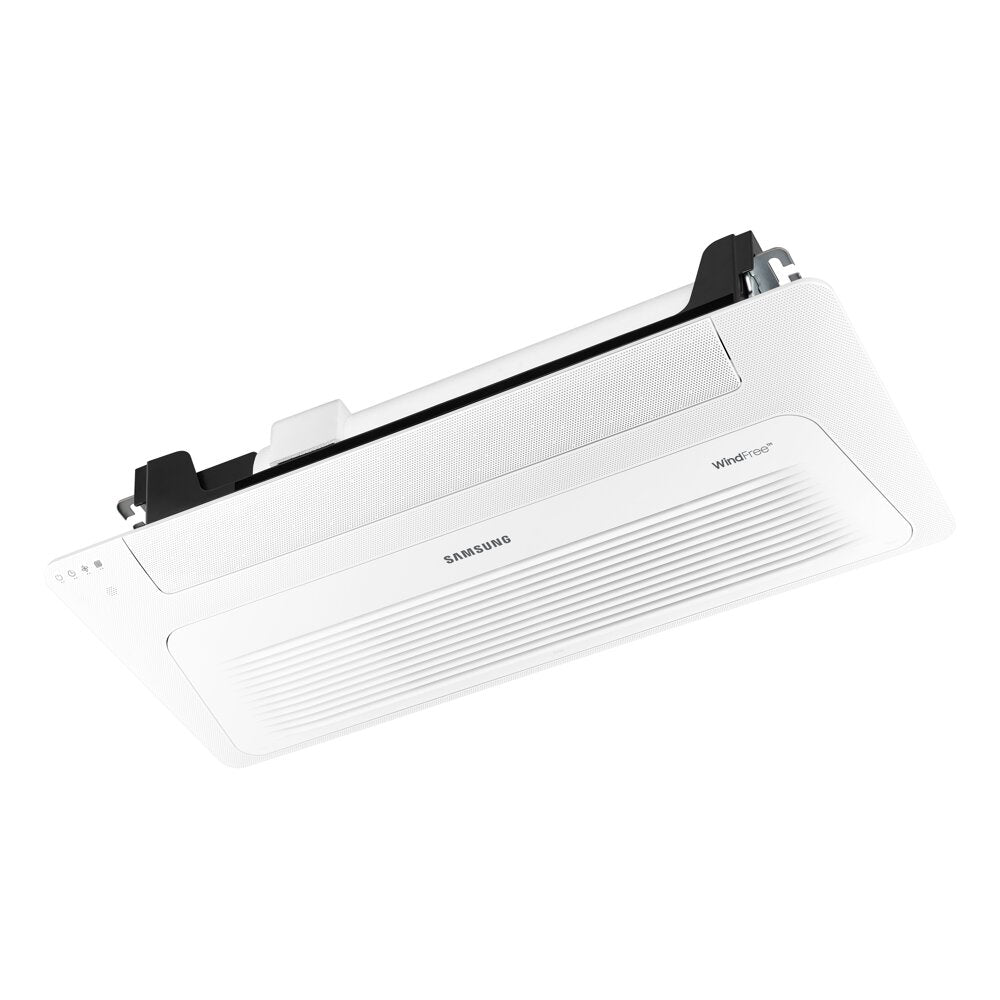

1-Way Cassette
Accessories
Controller Type

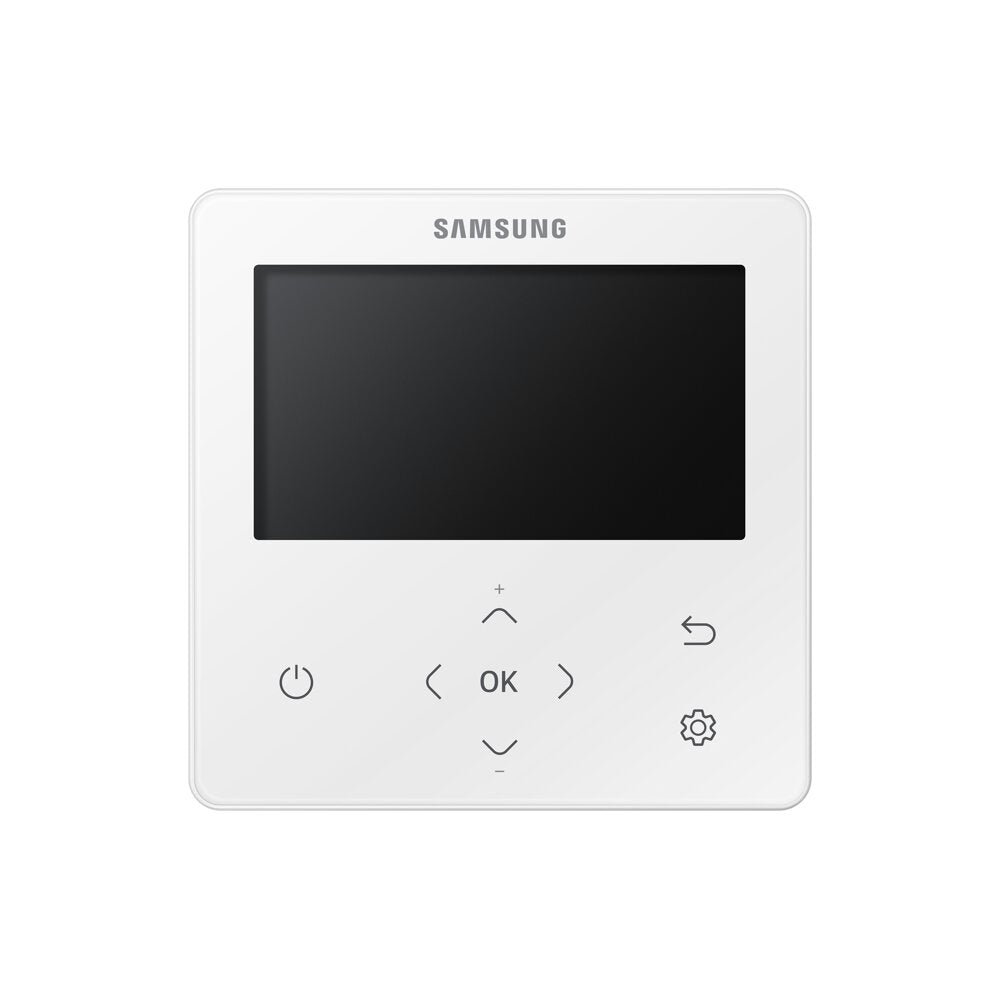

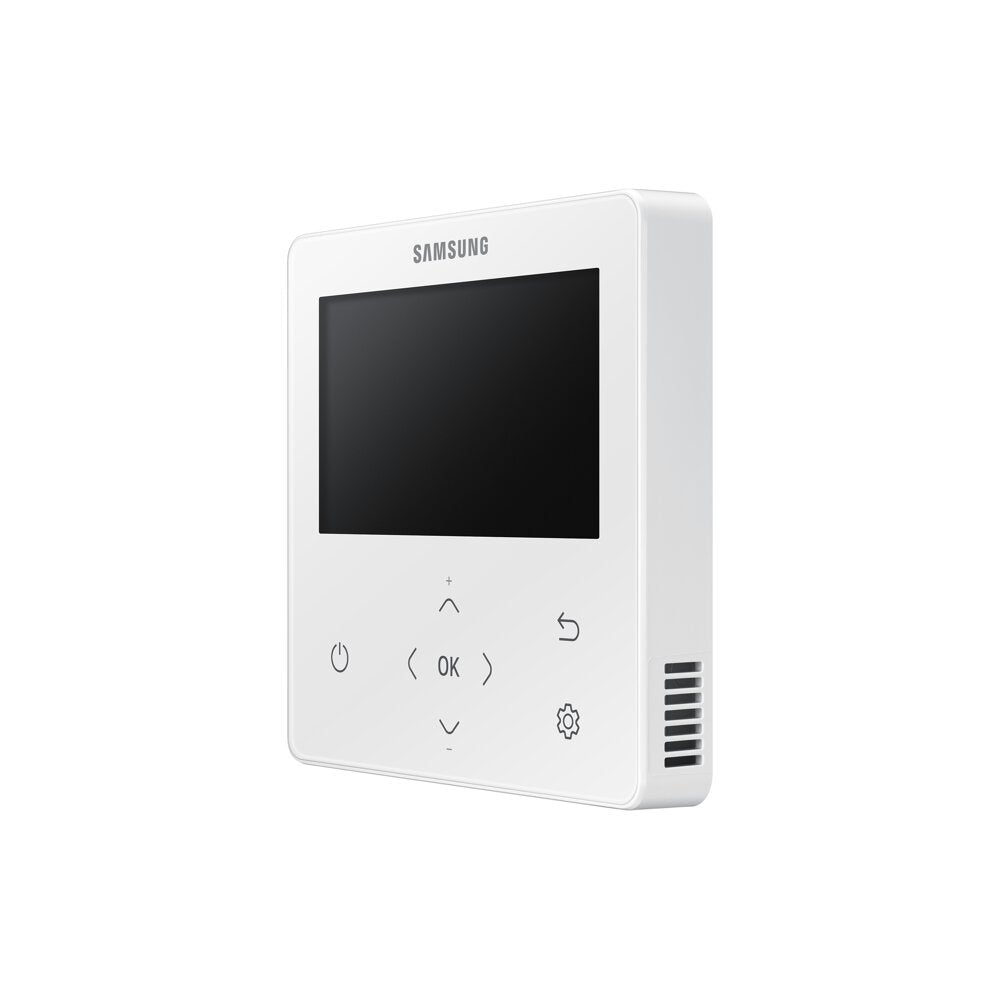

Premium wired
Efficiency
SEER
6.2
SCOP
4.0
Noise rating
Indoor Unit Sound (Power) (dB(A))
55dB(A)
Indoor Unit Sound (Pressure) (dB(A))
35dB(A)
Outdoor Unit Sound (Power) (dB(A))
61dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
48dB(A)
Output power
Cooling kW
3.5kW
Heating kW
4.0kW
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
12.5
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
11
Product features
Refrigerant
R32
Colour
White
BMS Ready
Yes
Wind Free
Yes
Weights & dimensions
Pipe size (Liquid (mm))
6.3mm
Pipe size (Gas(mm))
9.5mm
Max Pipe length (m)
20m
Max Pipe height (m)
15m
Refrigerant Precharge length (m)
20m
Indoor Unit Width (mm)
970mm
Indoor Unit Depth (mm)
410mm
Indoor Unit Height (mm)
135mm
Indoor Unit Weight (kg)
9.2kg

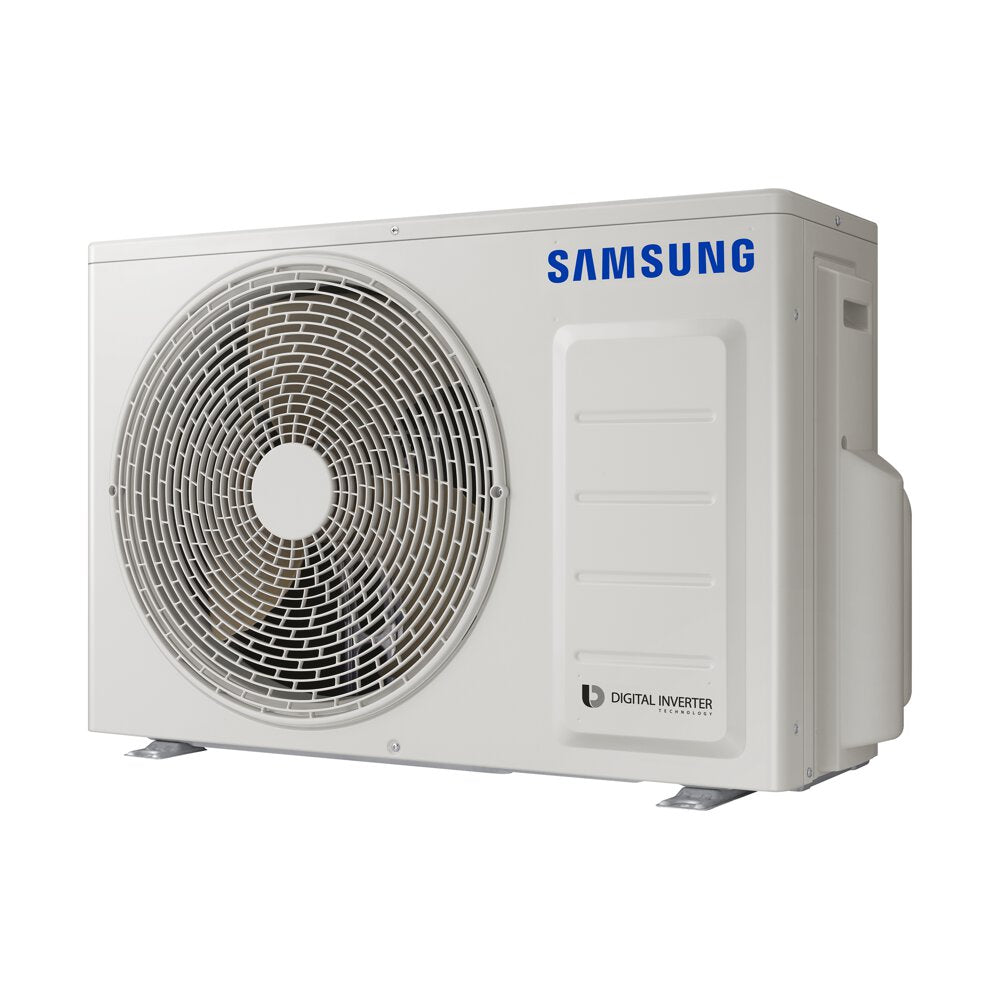

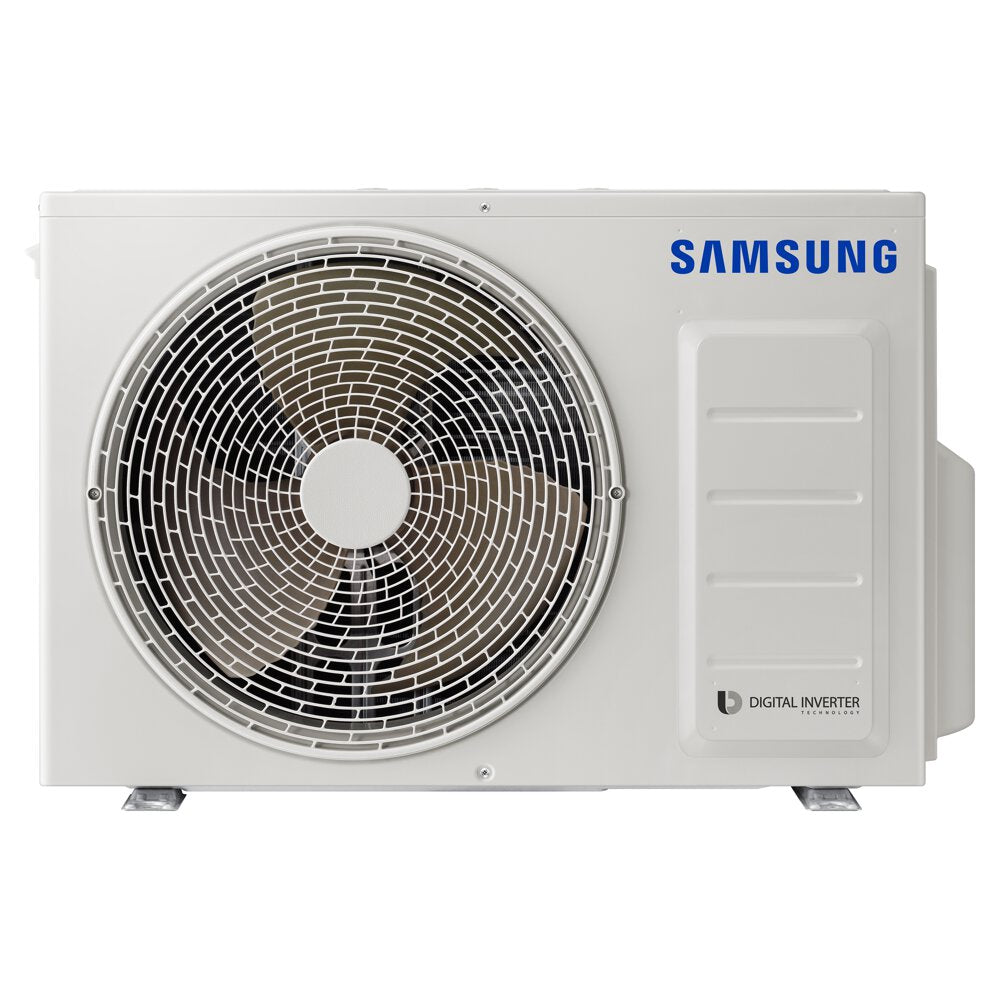

Outdoor Unit Width (mm)
790mm
Outdoor Unit Depth (mm)
285mm
Outdoor Unit Height (mm)
548mm
Outdoor Unit Weight (kg)
32.5kg
Fascia Panel Width (mm)
1198mm
Fascia Panel Depth (mm)
500mm
Fascia Panel Height (mm)
35mm
