Samsung
SKU: FLSYSEHS13798672

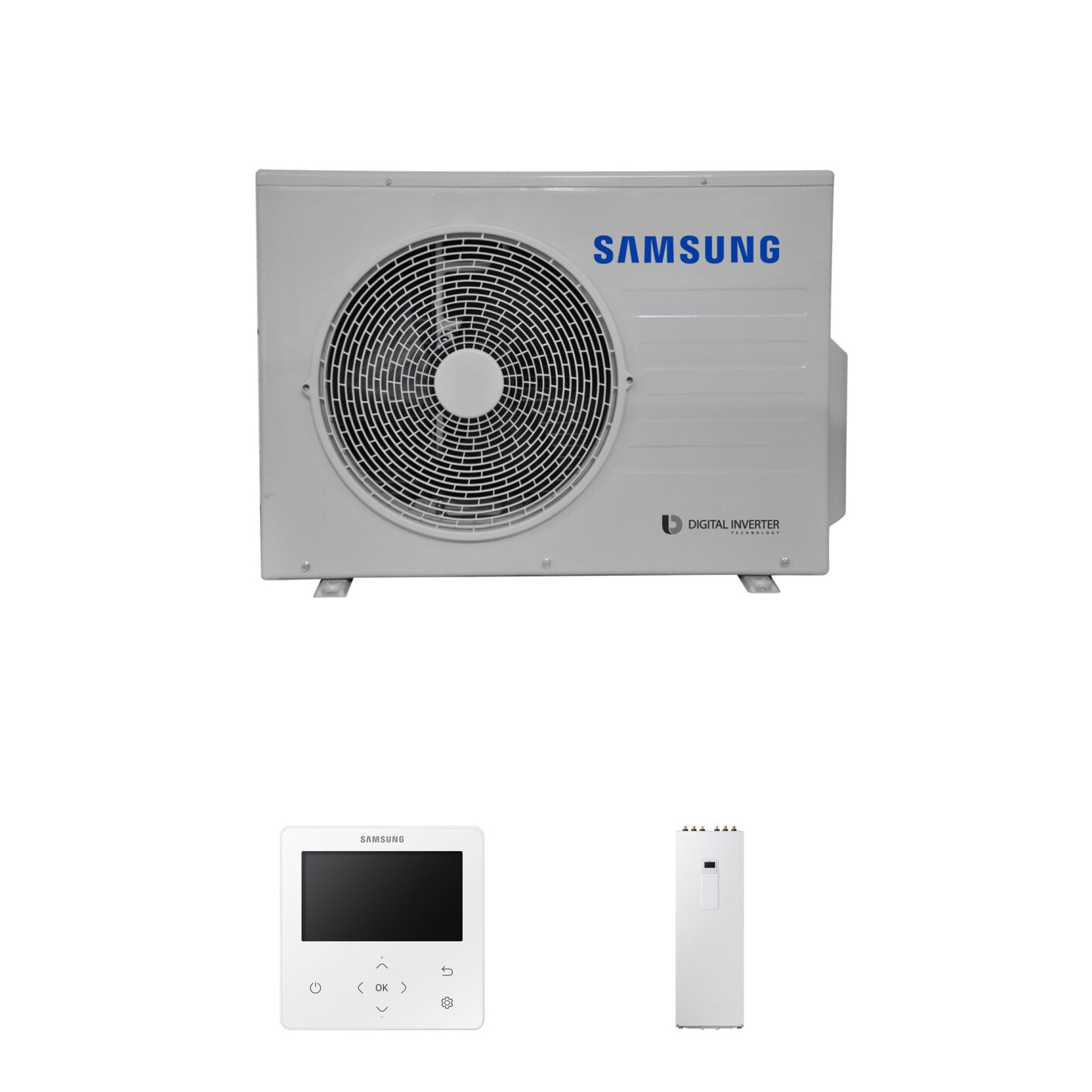

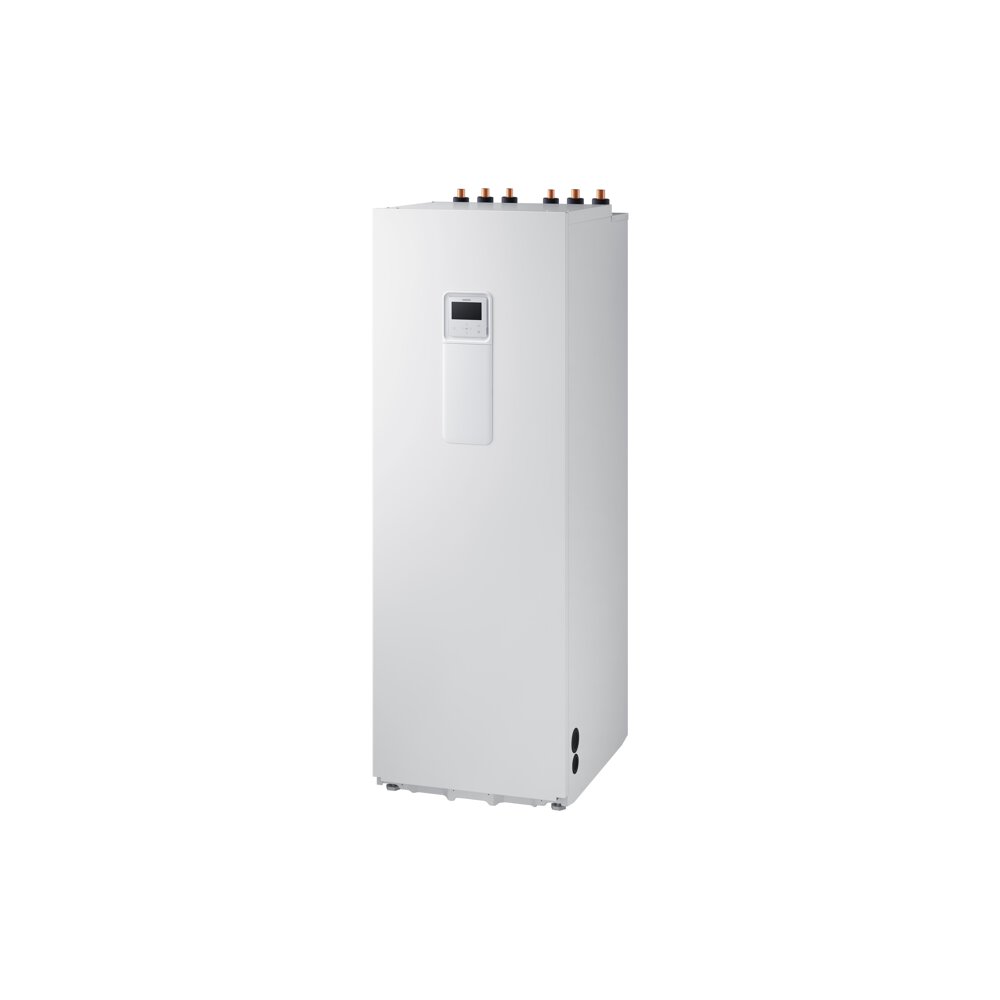

Samsung EHS 4.0kW Split air source heat pump with 200L tank and colour premium wired controller
Your price
£5,383.00
£6,459.60 inc VAT
Retail price
£6,459.60
Trade price
Log in or open a trade account for exclusive trade discounts and loyalty offers
Couldn't load pickup availability

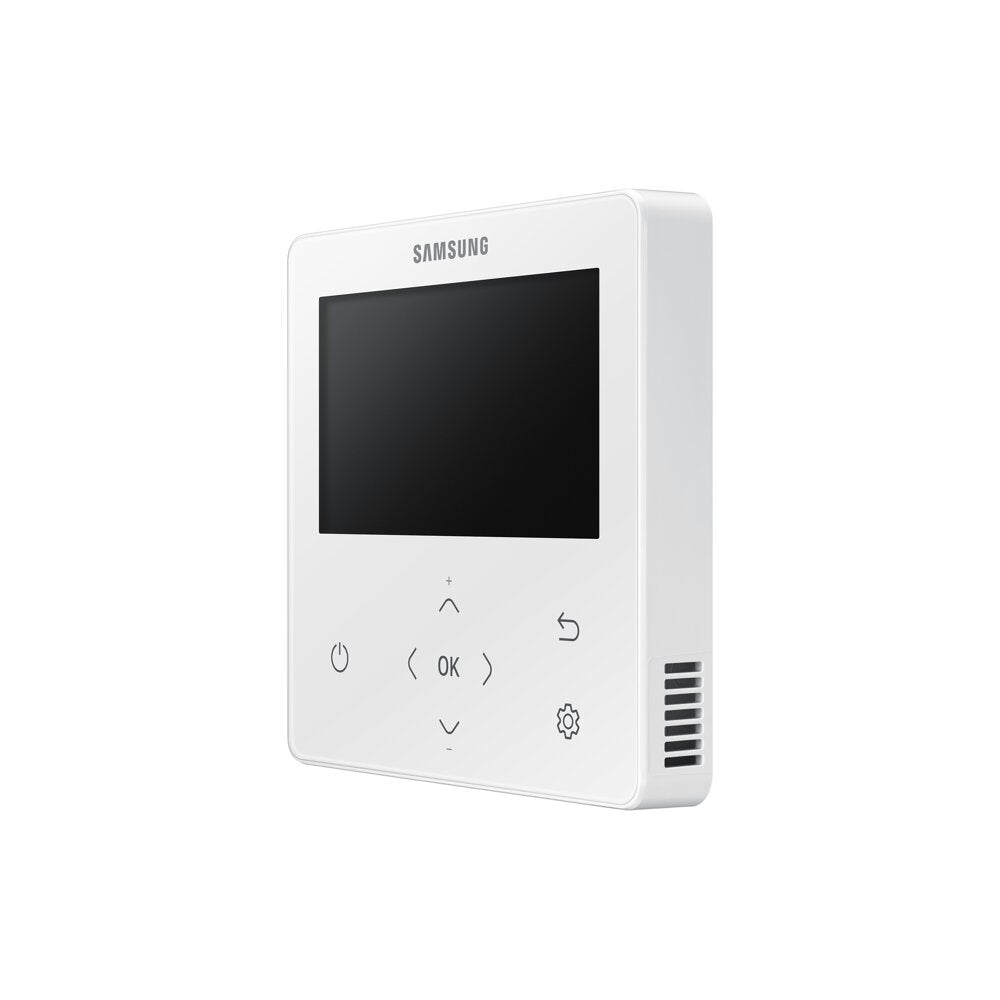

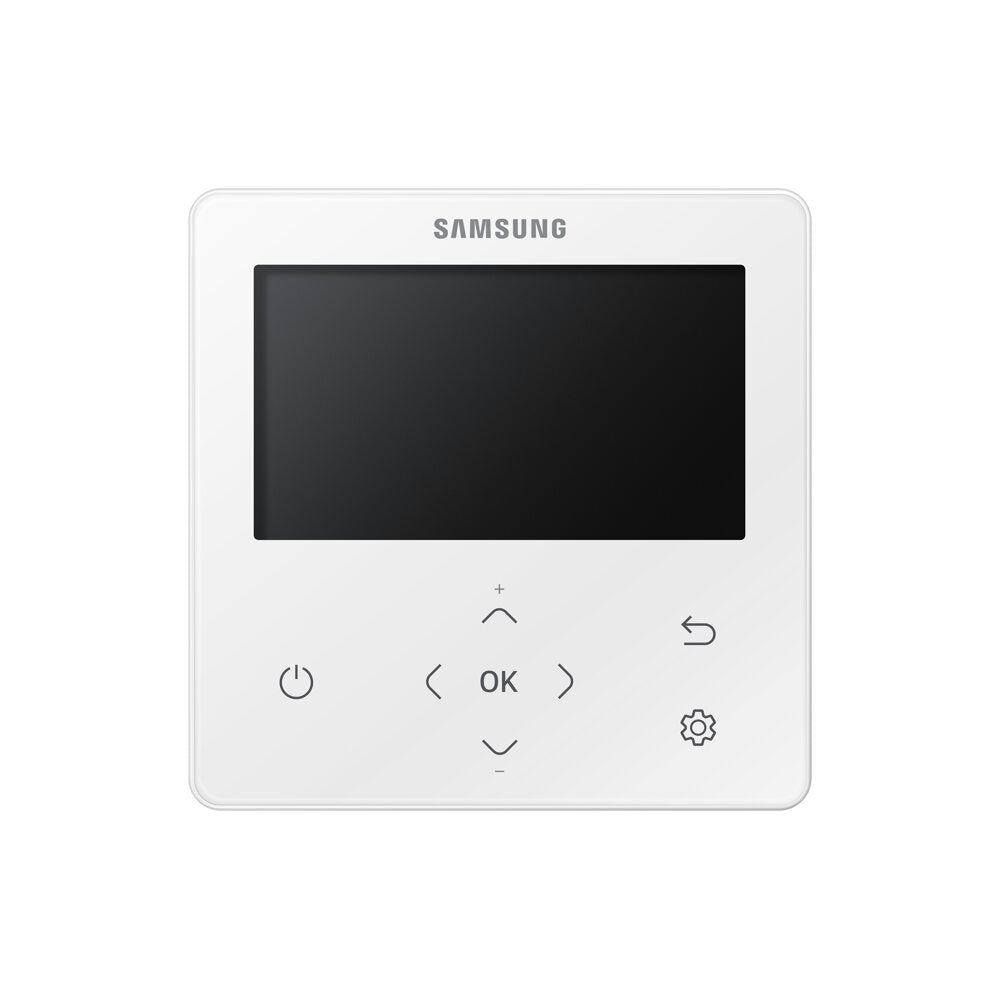

Compatible with thermostats, solar panels and back-up boilers. Intuitive, colour screen touch controller. Energy monitoring through touch controller. PV and Smart Grid ready. 2-zone control suitable for under floor heating and radiators. SmartThings compatible with optional Wi-Fi kit. Backup heater in included to ensure a minimum water temperature.
system includes
Technical details
Classification
Brand
Samsung
Clasification
EHS
Category
Split
Accessories
Controller Type
Premium wired
Efficiency
SCOP
4.6
ERP Rating
A+
Noise rating
Indoor Unit Sound (Power) (dB(A))
44dB(A)
Indoor Unit Sound (Pressure) (dB(A))
30dB(A)
Outdoor Unit Sound (Power) (dB(A))
58dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
44dB(A)
Output power
Heating kW
4.0kW
Immersion heater Duty (kW)
3kW
Maximum Flow Temperature (°c)
65°c
Maximum Hot Water Temperature (°c)
55°c
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
20
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
3.9
Product features
Refrigerant
R32
Re-Heat Time (min)
60min
Weights & dimensions
Pipe size (Liquid (mm))
6.4mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
30m
Max Pipe height (m)
20m
Water Volume (L)
200l
Weight Empty (kg)
130.0kg
Weight Full (kg)
330.0kg
Unvented Expansion Vessel Volume (L)
8l
Pipe Size (Water(mm))
28mm

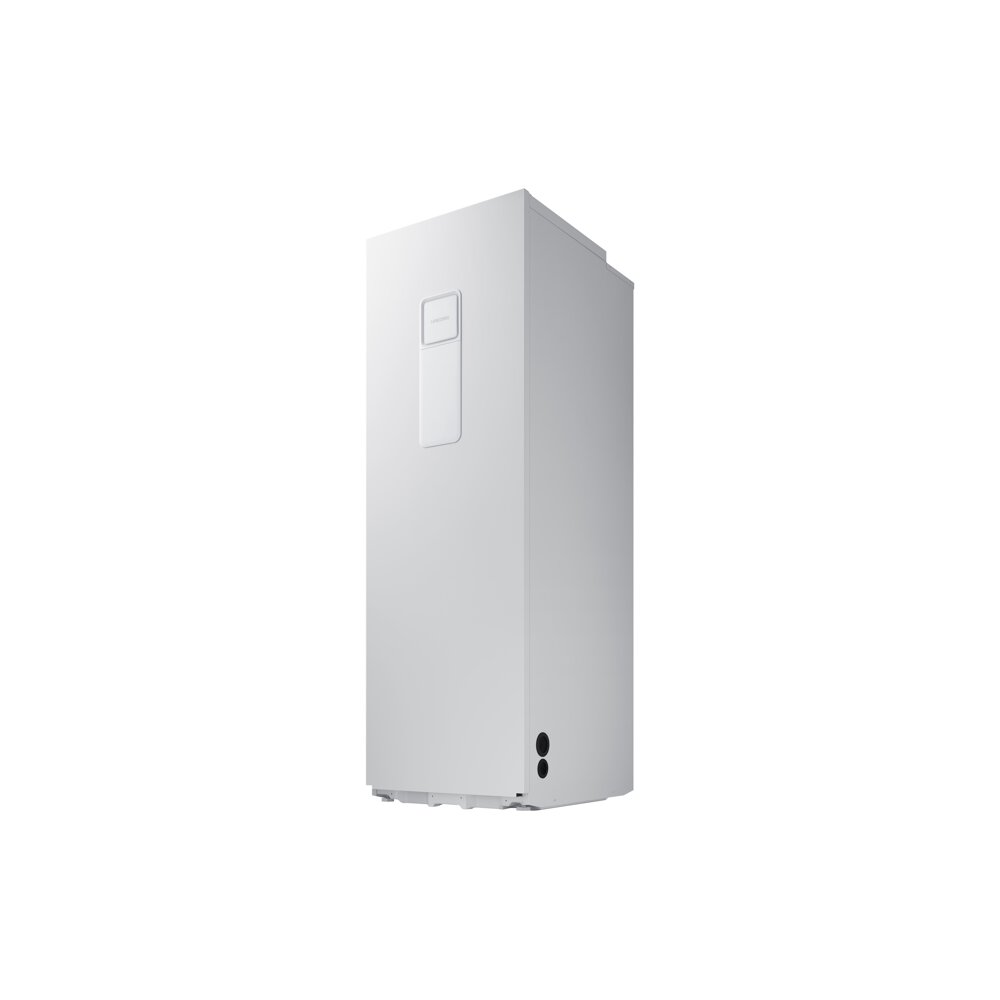

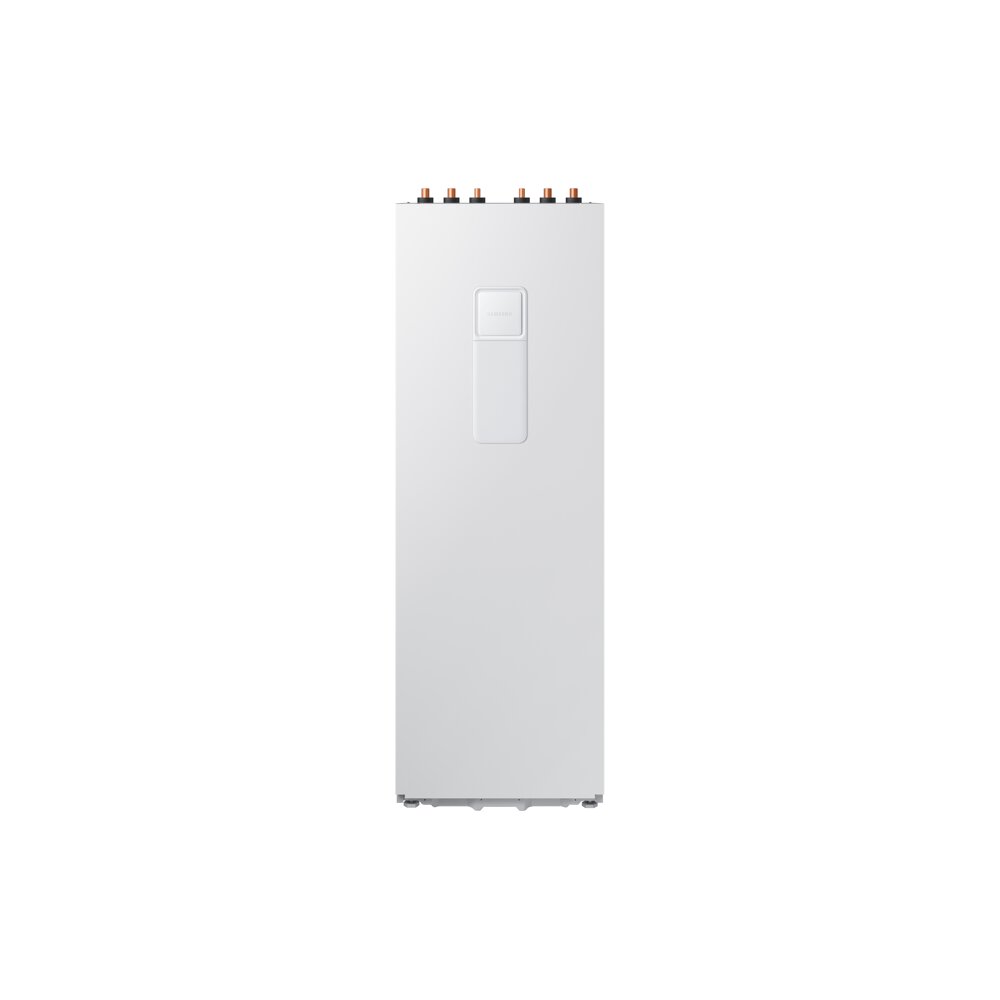

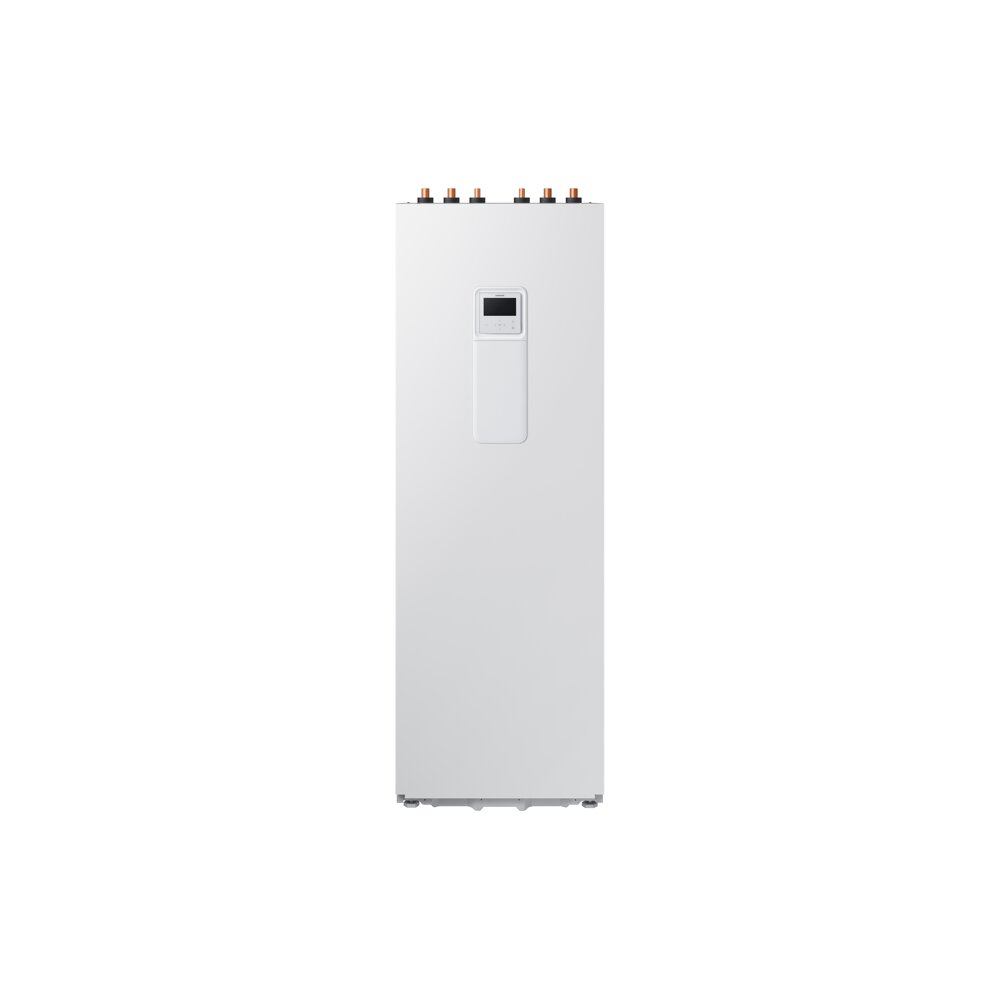

Indoor Unit Width (mm)
595mm
Indoor Unit Depth (mm)
780mm
Indoor Unit Height (mm)
1800mm
Indoor Unit Weight (kg)
130.0kg

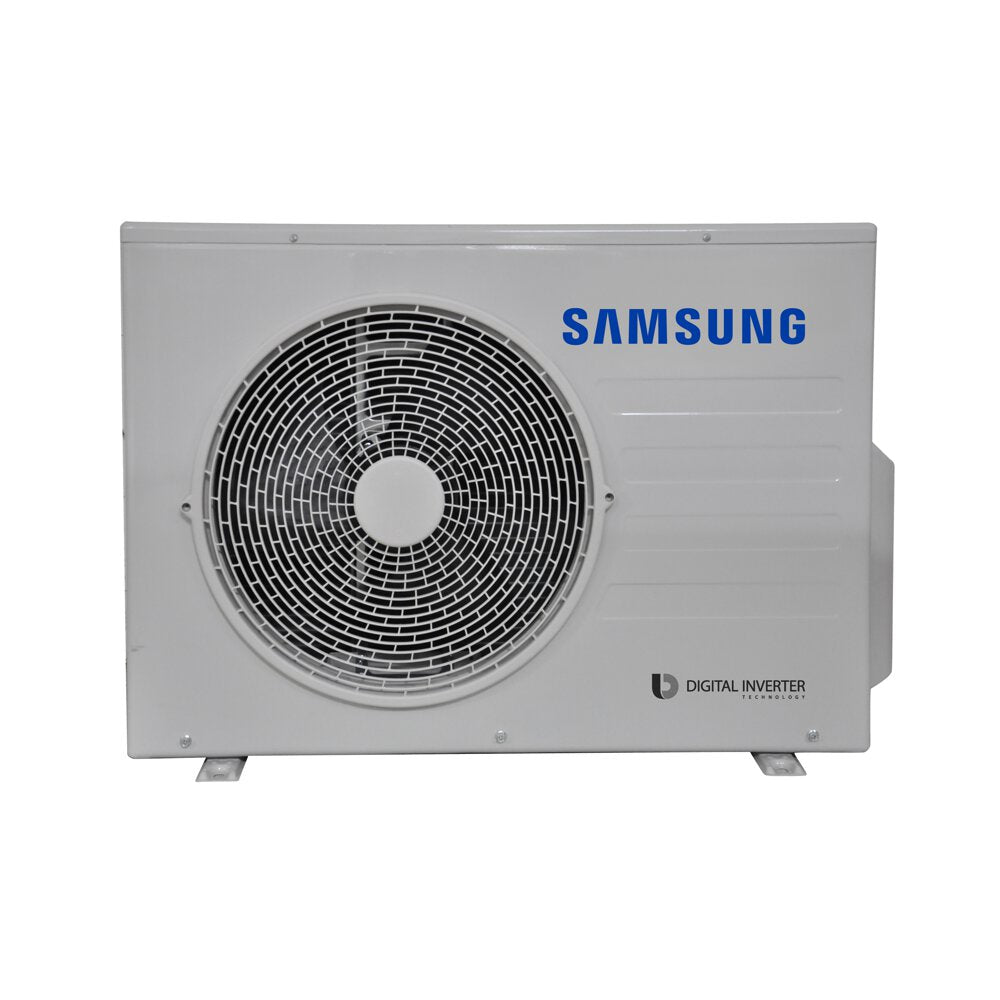

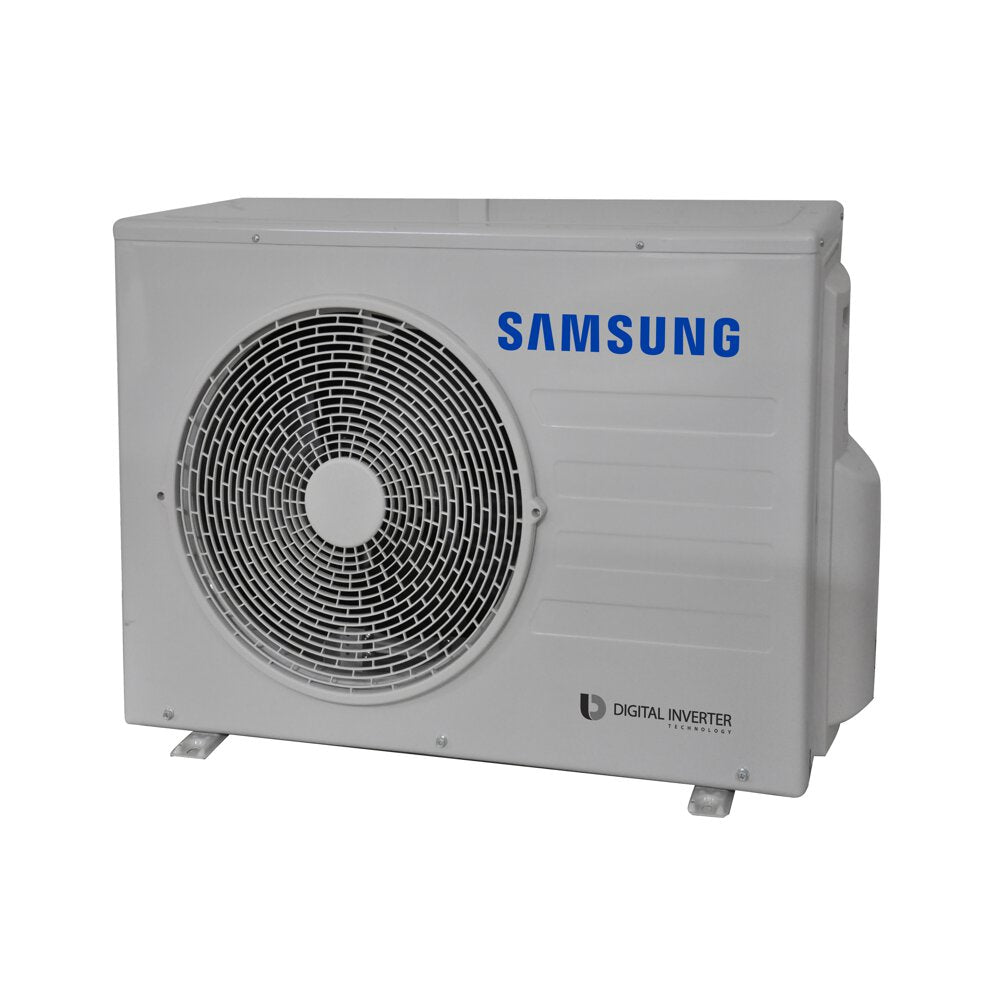

Outdoor Unit Width (mm)
880mm
Outdoor Unit Depth (mm)
310mm
Outdoor Unit Height (mm)
638mm
Outdoor Unit Weight (kg)
46.5kg
