Samsung
SKU: FLSYSEHS73228294

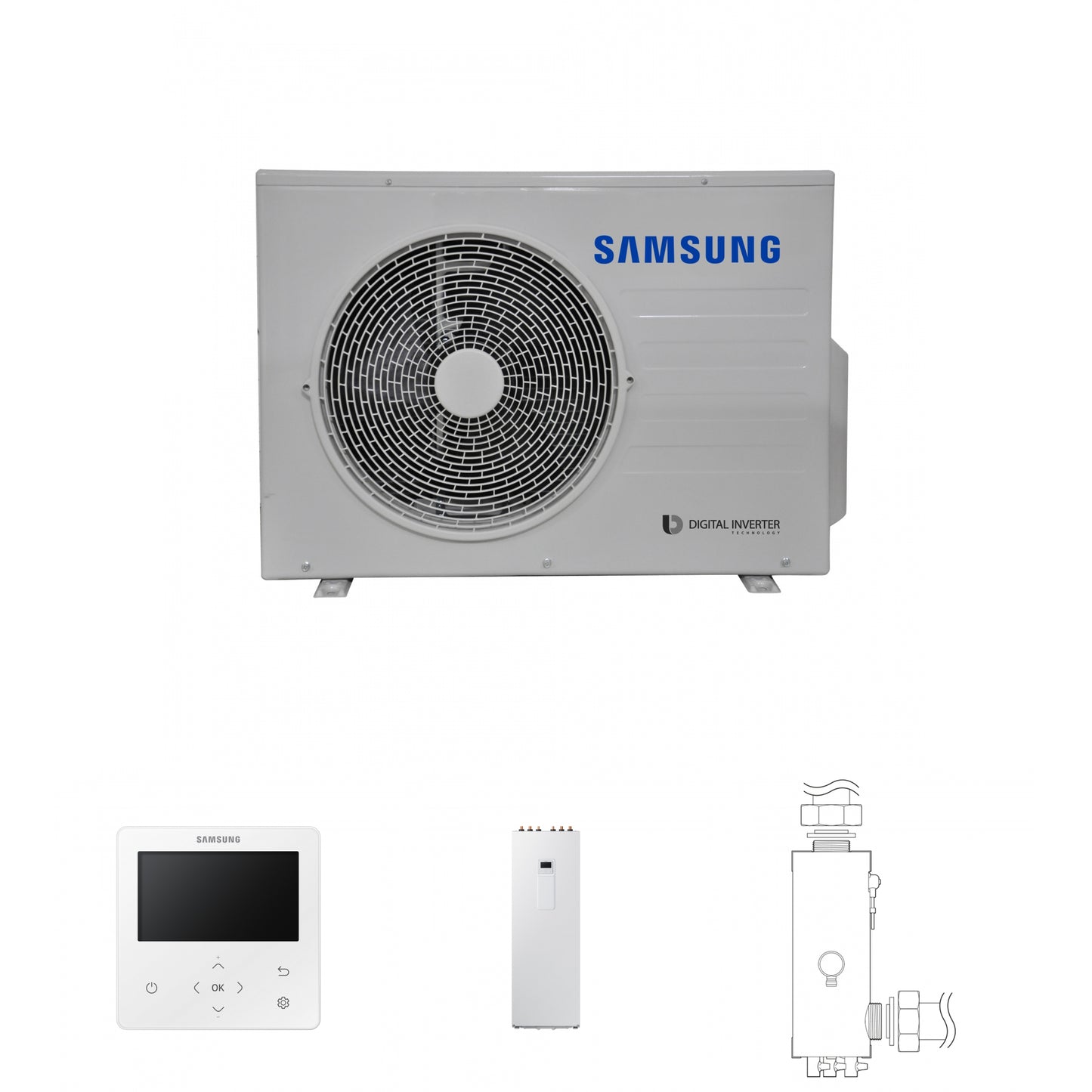

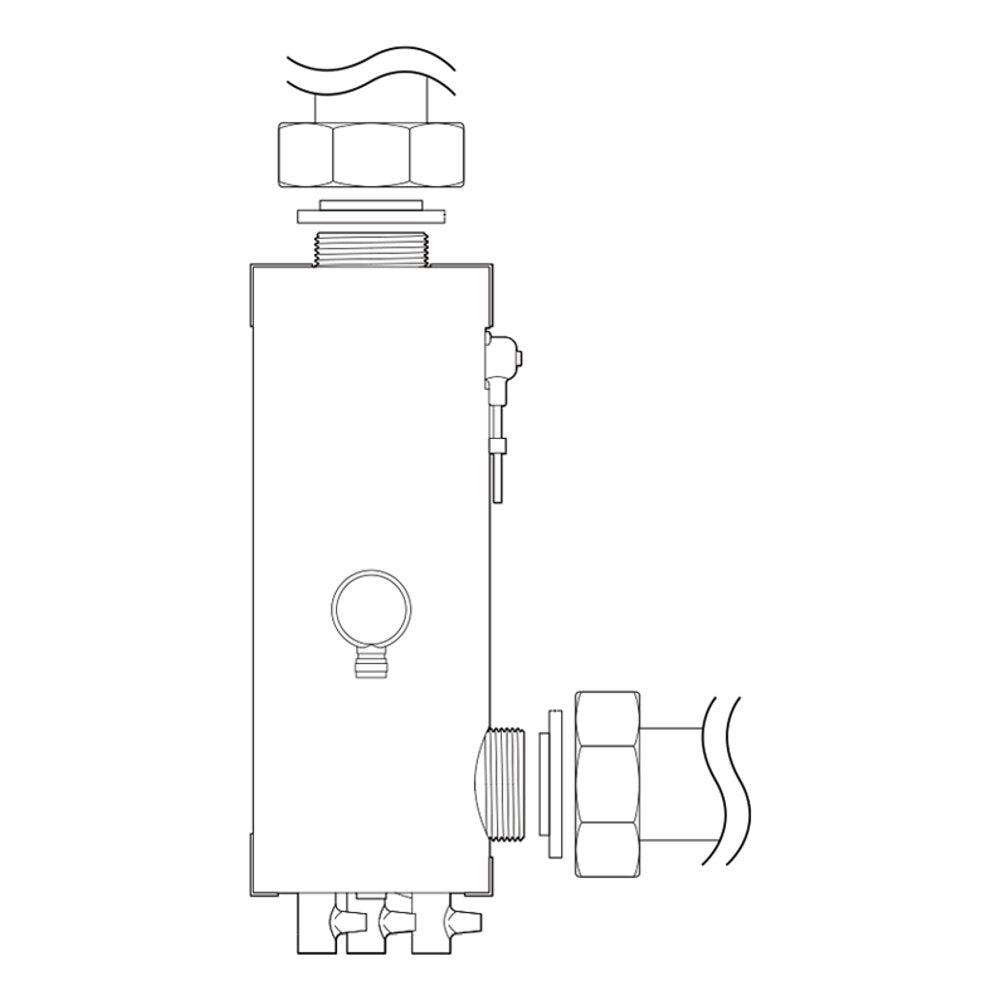

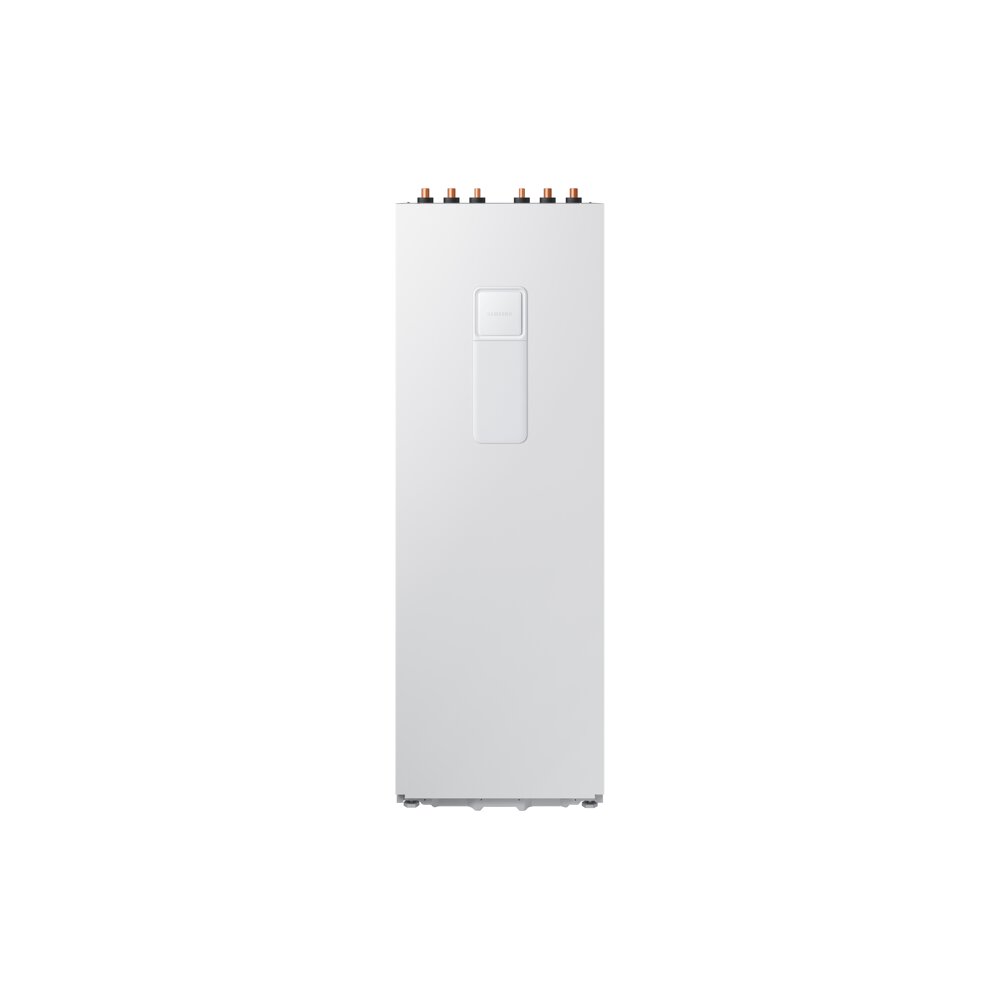

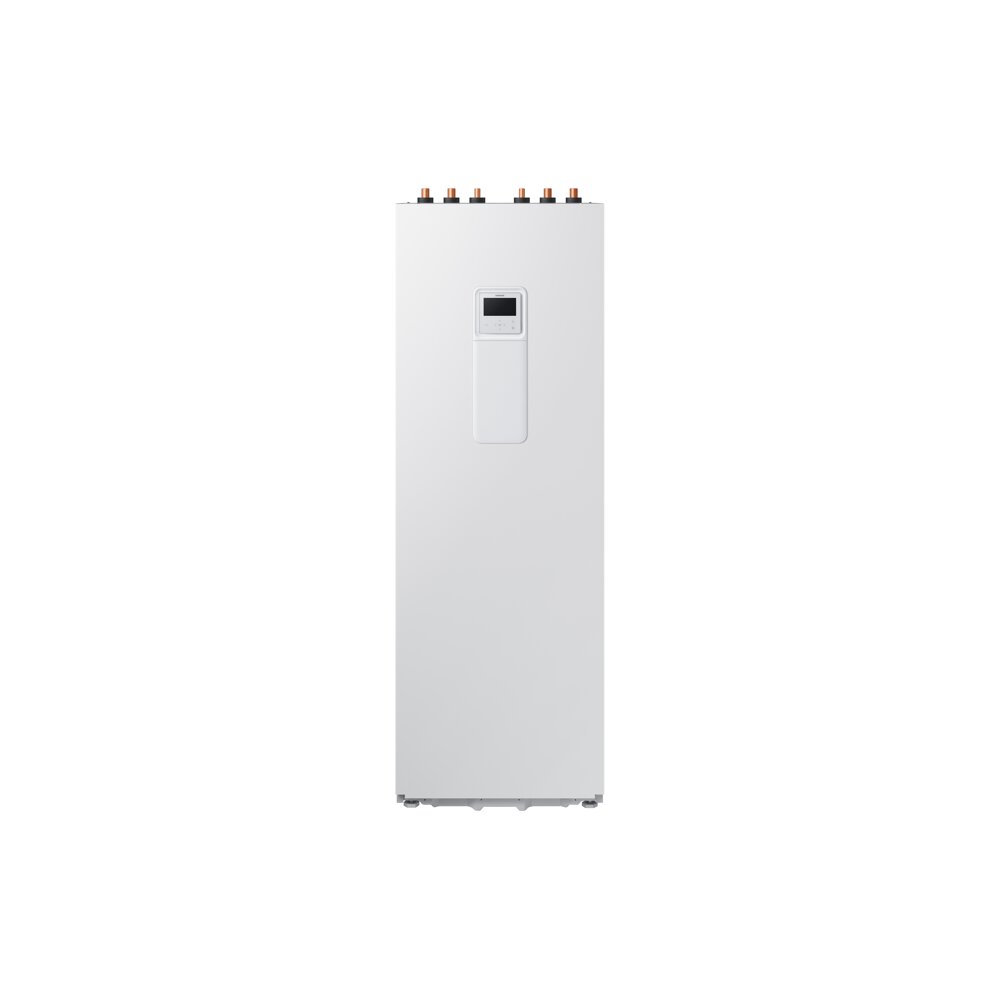

Samsung EHS 4.0kW Split air source heat pump with 260L tank, colour premium wired controller and 6.0kW backup heater
Your price
£5,056.51
£6,067.81 inc VAT
Retail price
£6,067.81
Trade price
Log in or open a trade account for exclusive trade discounts and loyalty offers
Couldn't load pickup availability
Compatible with thermostats, solar panels and back-up boilers. Intuitive, colour screen touch controller. Energy monitoring through touch controller. PV and Smart Grid ready. 2-zone control suitable for under floor heating and radiators. SmartThings compatible with optional Wi-Fi kit. Additional backup heater is included.
system includes
Technical details
Classification
Brand
Samsung
Clasification
EHS
Category
Split
Accessories

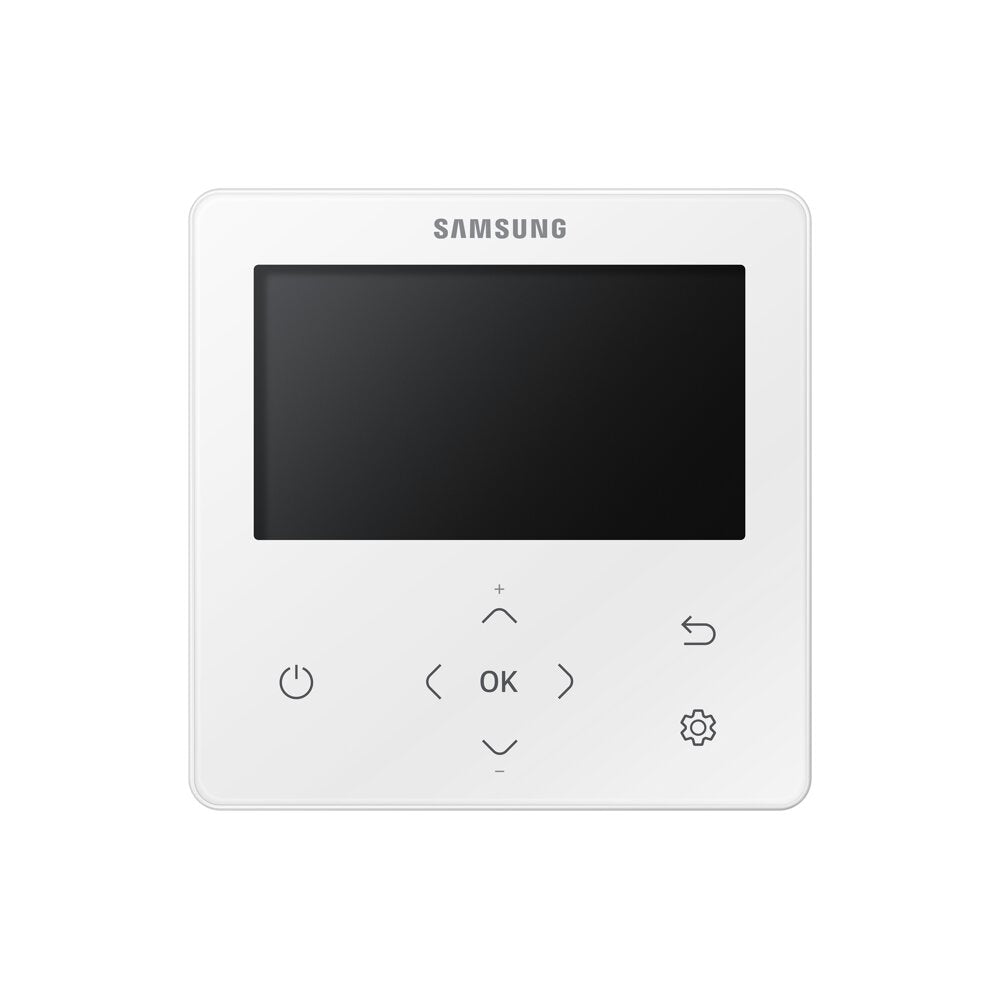

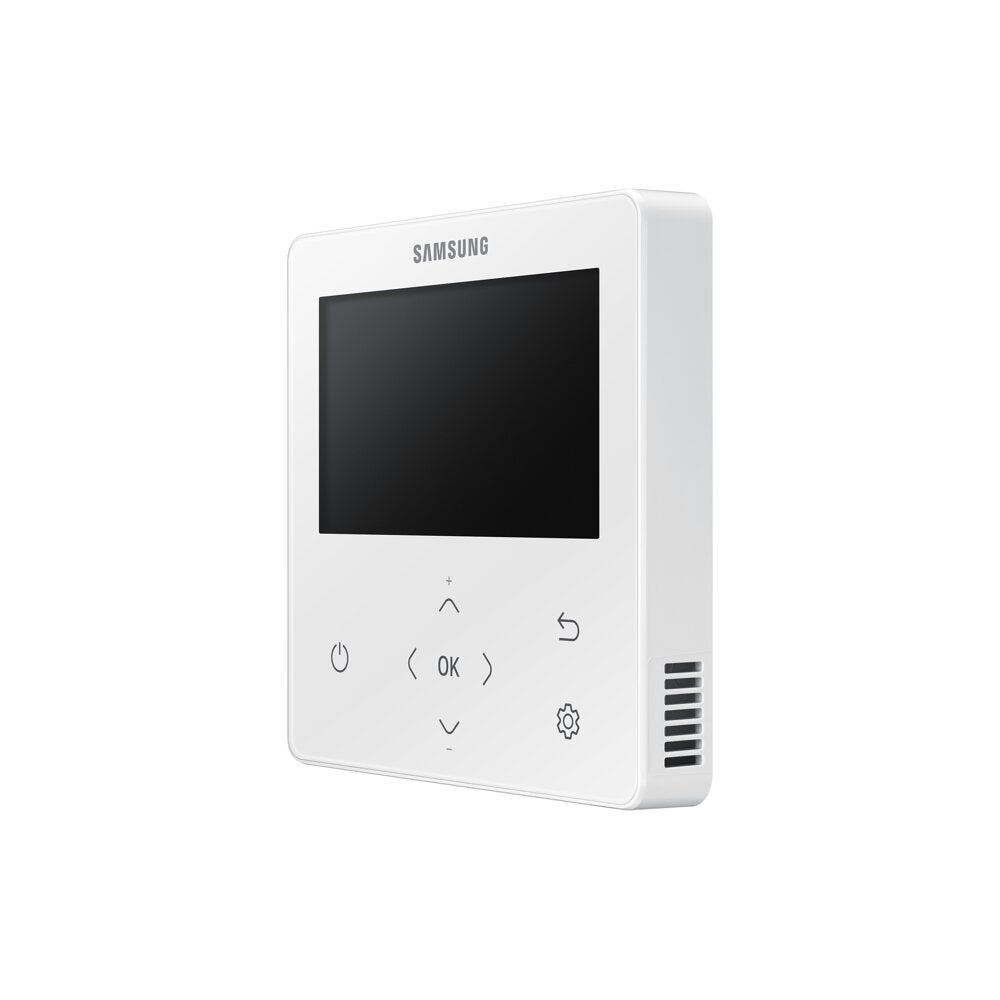

Controller Type
Premium wired
Efficiency
SEER
0.0
SCOP
4.6
ERP Rating
A+
Noise rating
Indoor Unit Sound (Power) (dB(A))
44dB(A)
Indoor Unit Sound (Pressure) (dB(A))
30dB(A)
Outdoor Unit Sound (Power) (dB(A))
58dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
44dB(A)
Output power
Cooling kW
0.0kW
Heating kW
4.0kW
UK Cooling kW
0.0kW
UK Heating kW
0.0kW
Sensible UK Cooling kW
0.0kW
Immersion heater Duty (kW)
3kW
Maximum Flow Temperature (°c)
65°c
Maximum Hot Water Temperature (°c)
55°c
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
20
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
3.9
Product features
Refrigerant
R32
Re-Heat Time (min)
60min
Weights & dimensions
Pipe size (Liquid (mm))
6.4mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
30m
Max Pipe height (m)
20m
Net Weight (kg)
0.0kg
Water Volume (L)
260l
Weight Empty (kg)
140.0kg
Weight Full (kg)
330.0kg
Unvented Expansion Vessel Volume (L)
8l
Pipe Size (Water(mm))
28mm

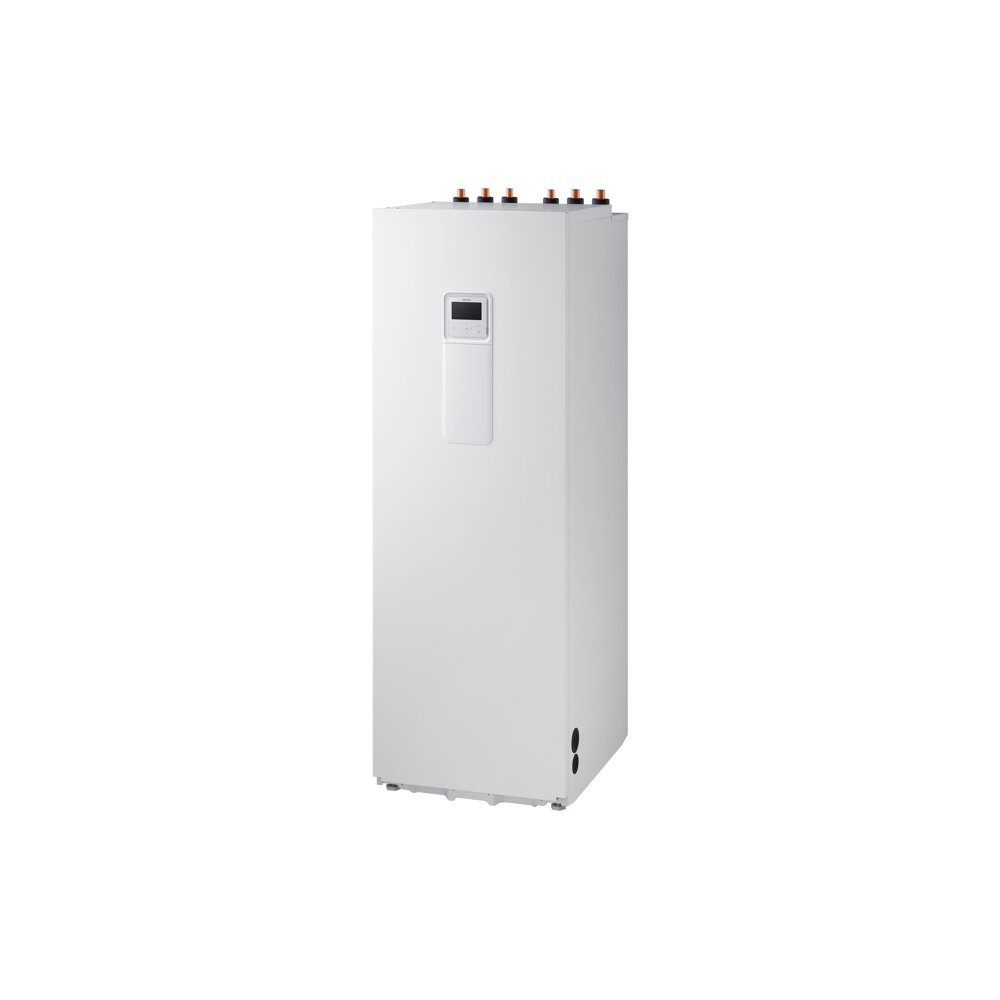

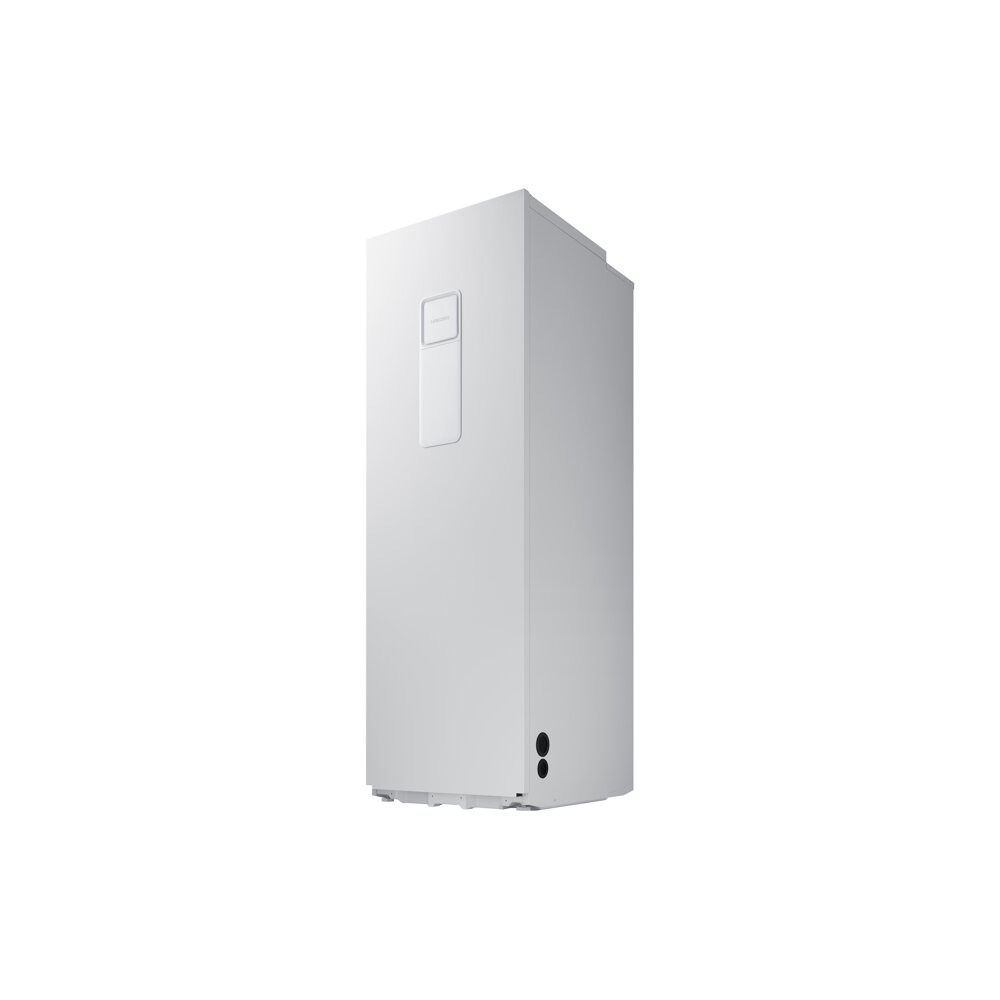

Indoor Unit Width (mm)
595mm
Indoor Unit Depth (mm)
780mm
Indoor Unit Height (mm)
1800mm
Indoor Unit Weight (kg)
140.0kg

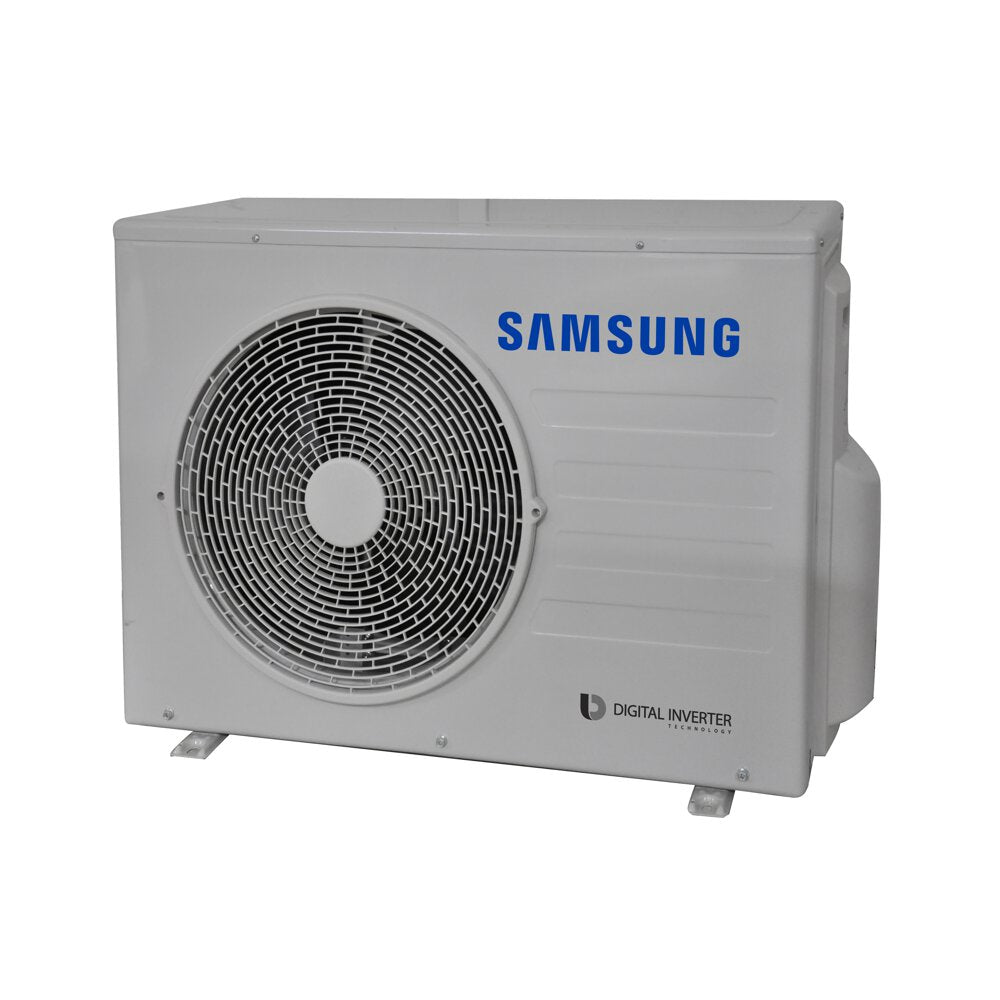

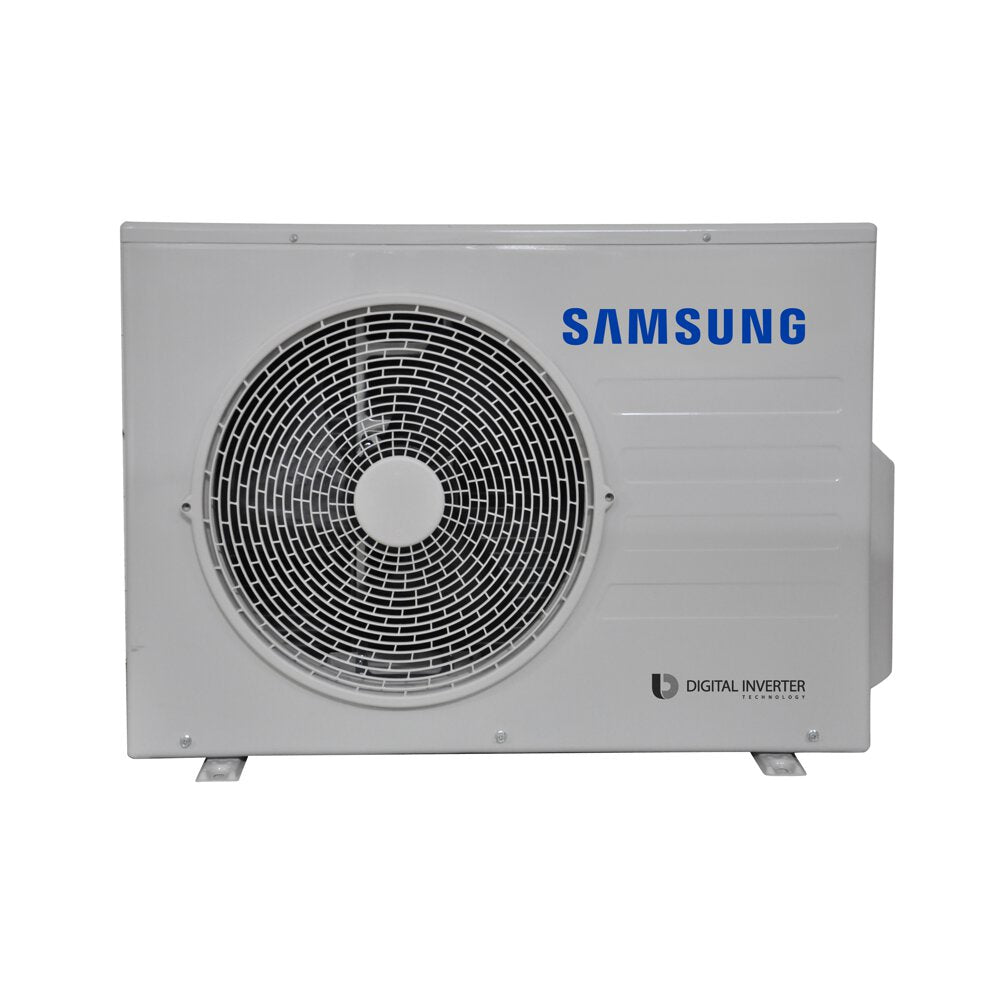

Outdoor Unit Width (mm)
880mm
Outdoor Unit Depth (mm)
310mm
Outdoor Unit Height (mm)
638mm
Outdoor Unit Weight (kg)
46.5kg
