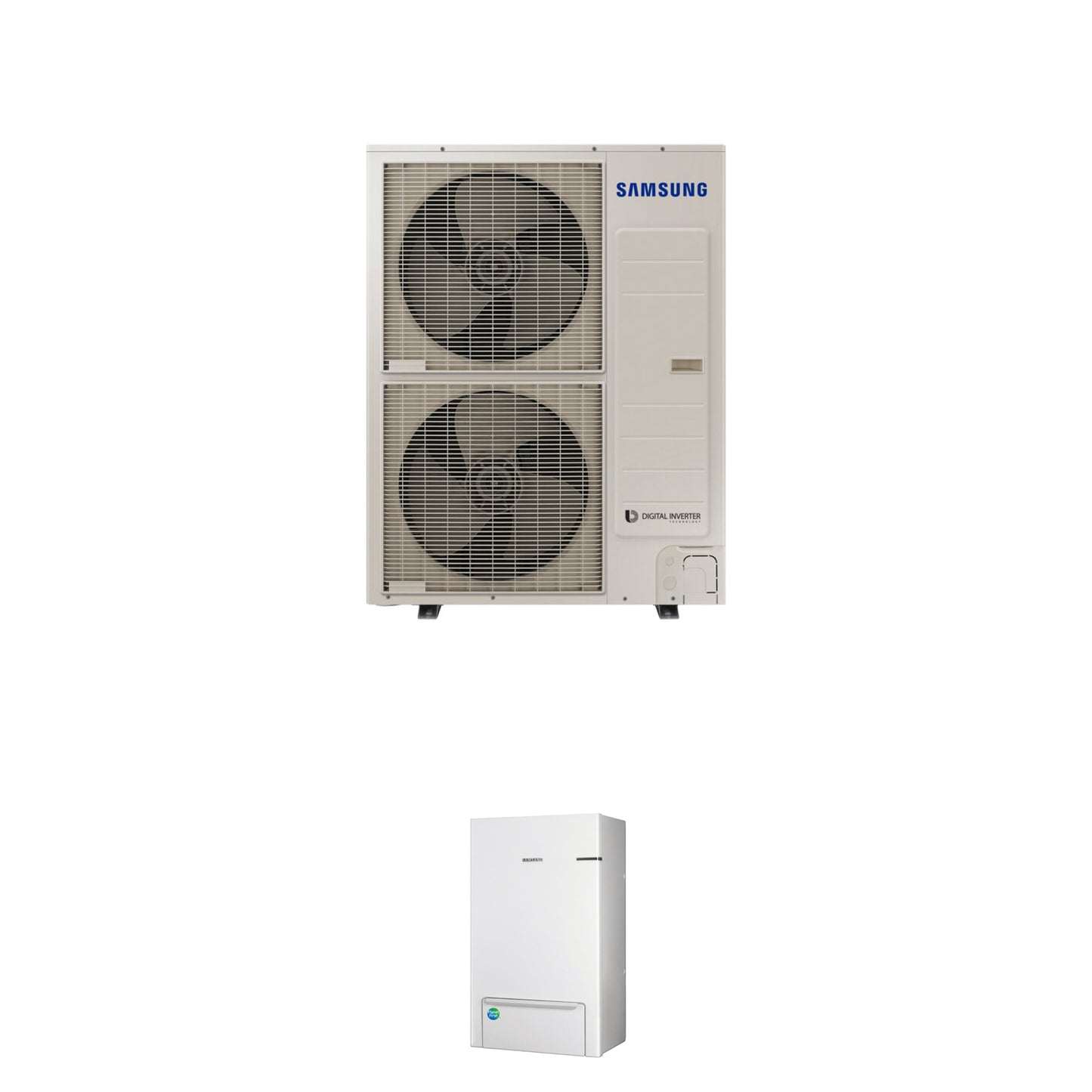

system includes
Technical details
Classification
Brand
Samsung
Clasification
EHS
Category
Split
Efficiency
SCOP
4.6
Noise rating
Outdoor Unit Sound (Power) (dB(A))
64dB(A)
Outdoor Unit Sound (Pressure) (dB(A))
50dB(A)
Output power
Heating kW
12.0kW
Maximum Flow Temperature (°c)
65°c
Maximum Hot Water Temperature (°c)
55°c
Power supply
Indoor Unit Power Source
Single Phase
Outdoor Unit Power Source
Single Phase
Indoor Unit Fuse Rating
3
Outdoor Unit Fuse Rating
35
Indoor Unit Max Running Current
1
Outdoor Unit Max Running Current
11.7
Product features
Refrigerant
R410A
Weights & dimensions
Pipe size (Liquid (mm))
9.5mm
Pipe size (Gas(mm))
15.9mm
Max Pipe length (m)
50m
Max Pipe height (m)
30m
Pipe Size (Water(mm))
28mm
Indoor Unit Width (mm)
510mm
Indoor Unit Depth (mm)
315mm
Indoor Unit Height (mm)
850mm
Indoor Unit Weight (kg)
45.0kg
Outdoor Unit Width (mm)
940mm
Outdoor Unit Depth (mm)
330mm
Outdoor Unit Height (mm)
1420mm
Outdoor Unit Weight (kg)
100.5kg
