Samsung

SKU: FLSYSEHS96480992

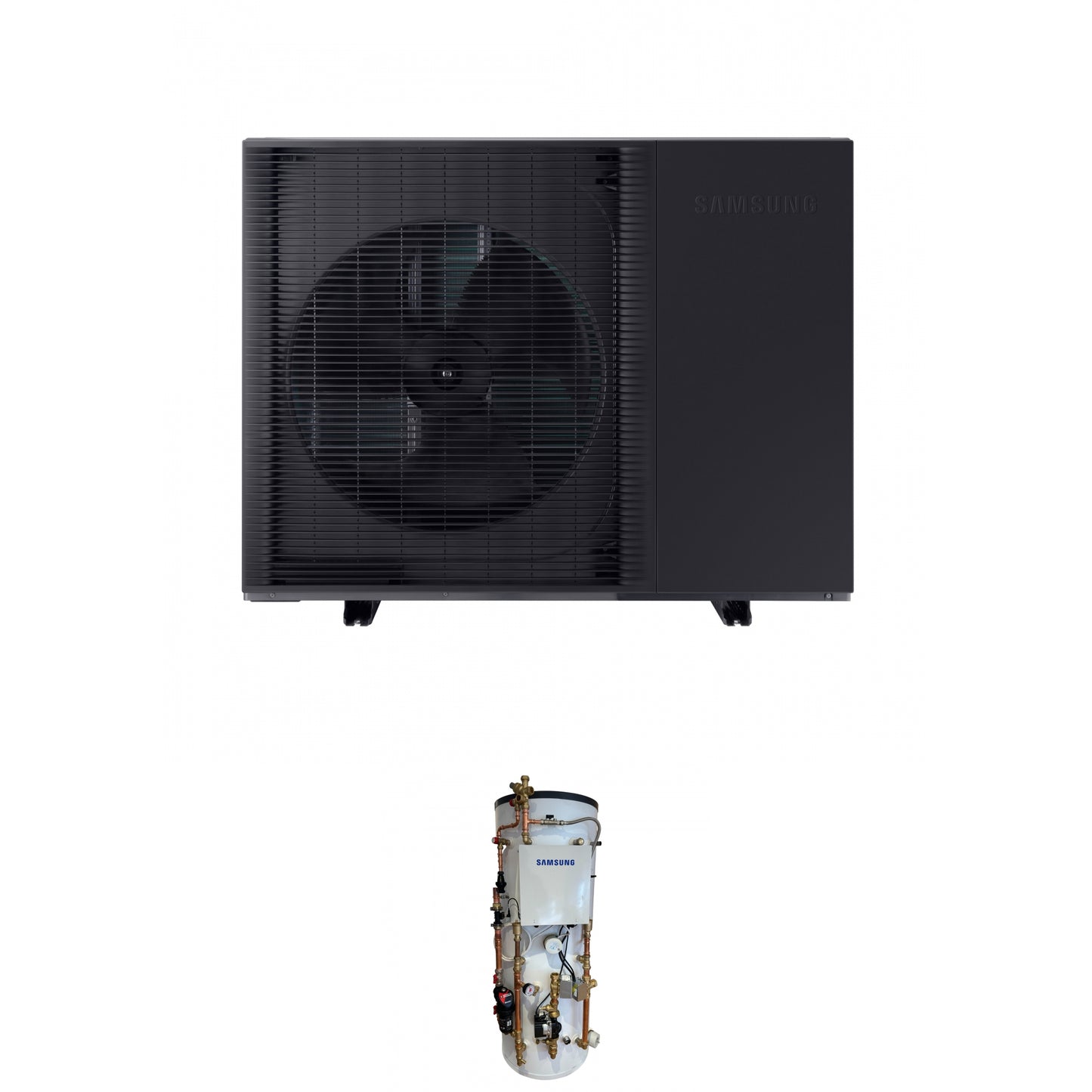

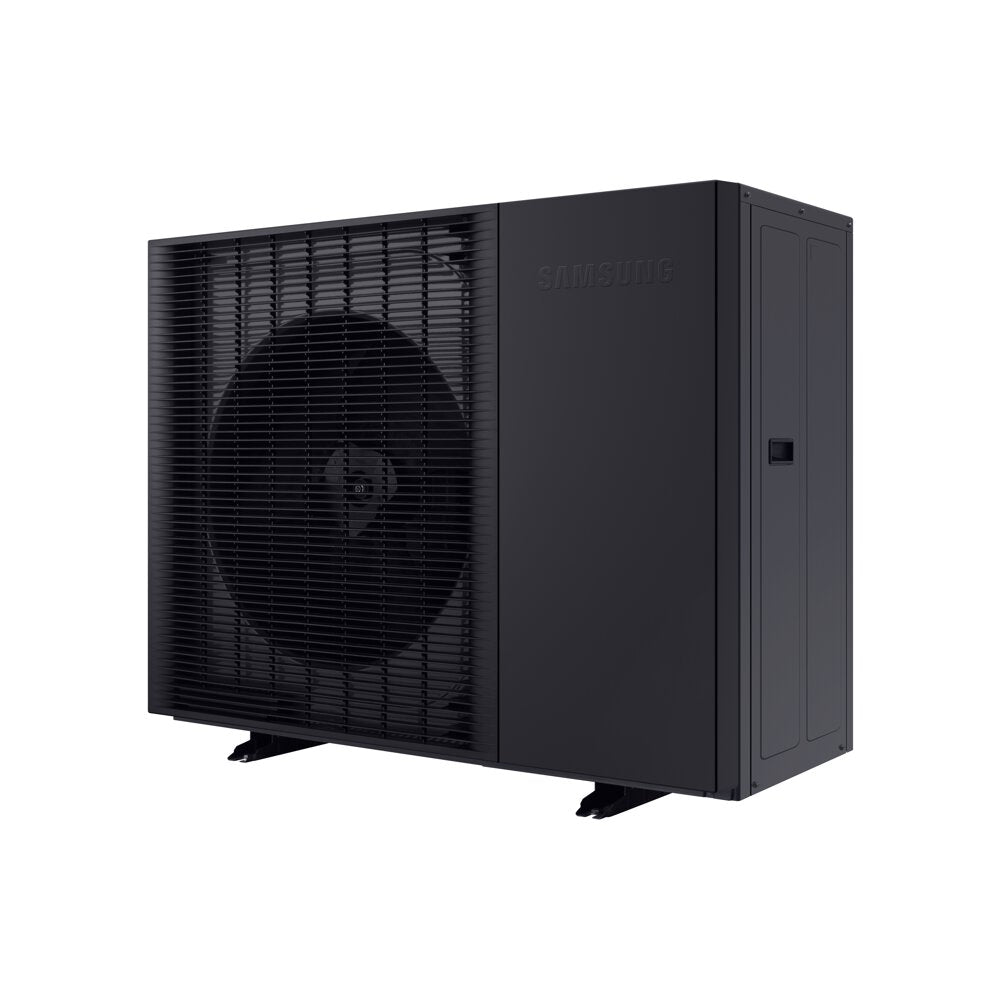

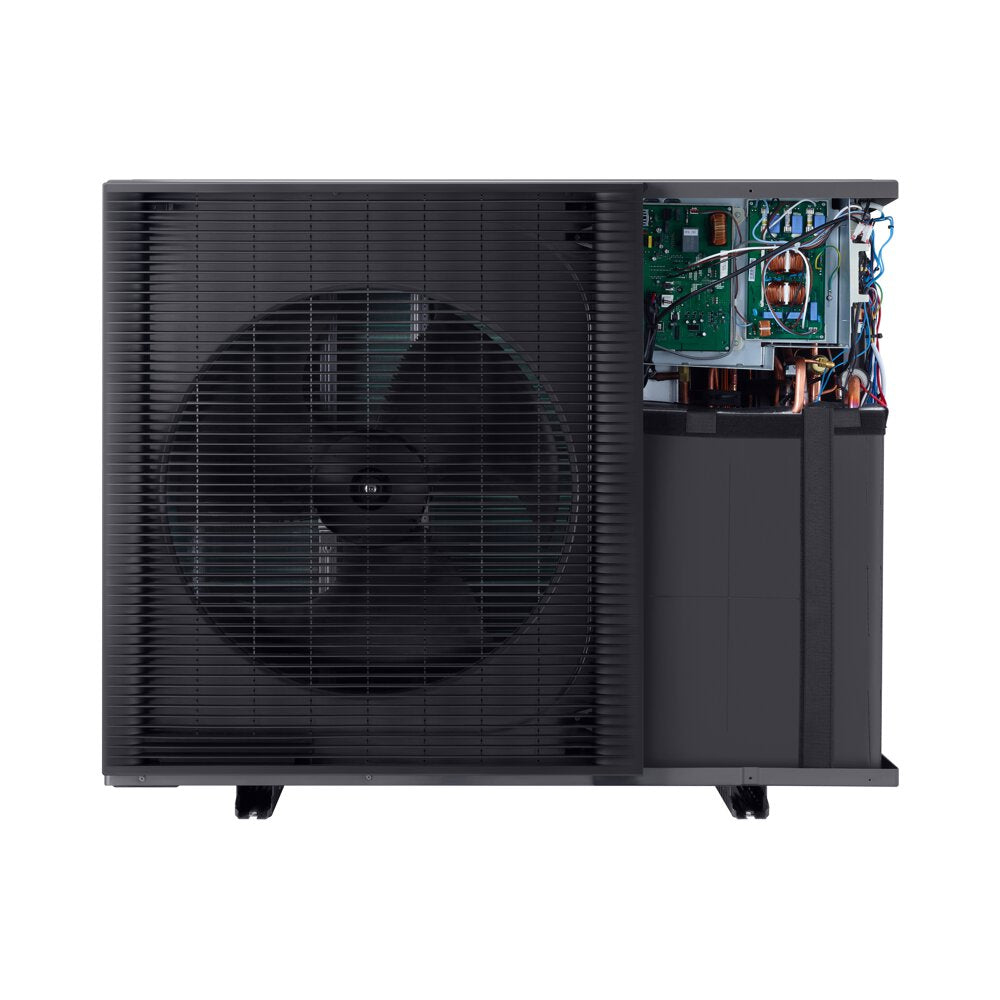

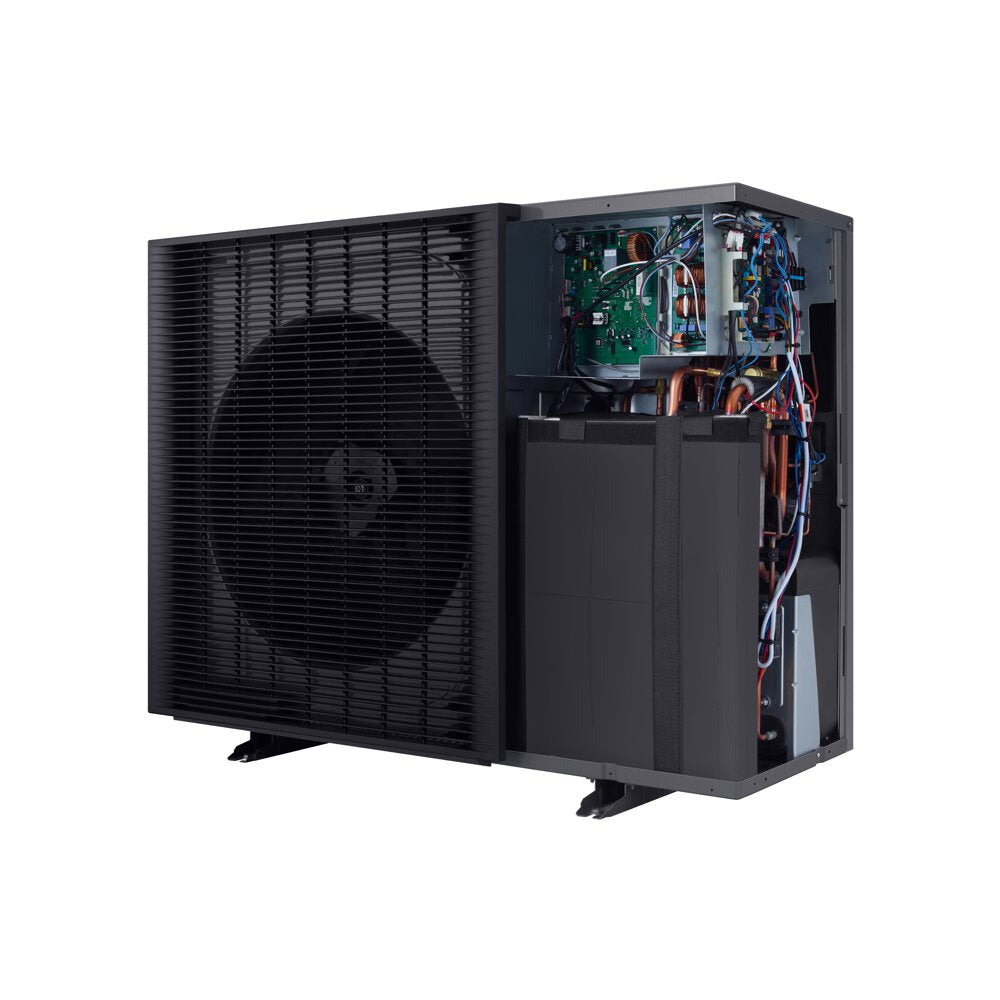

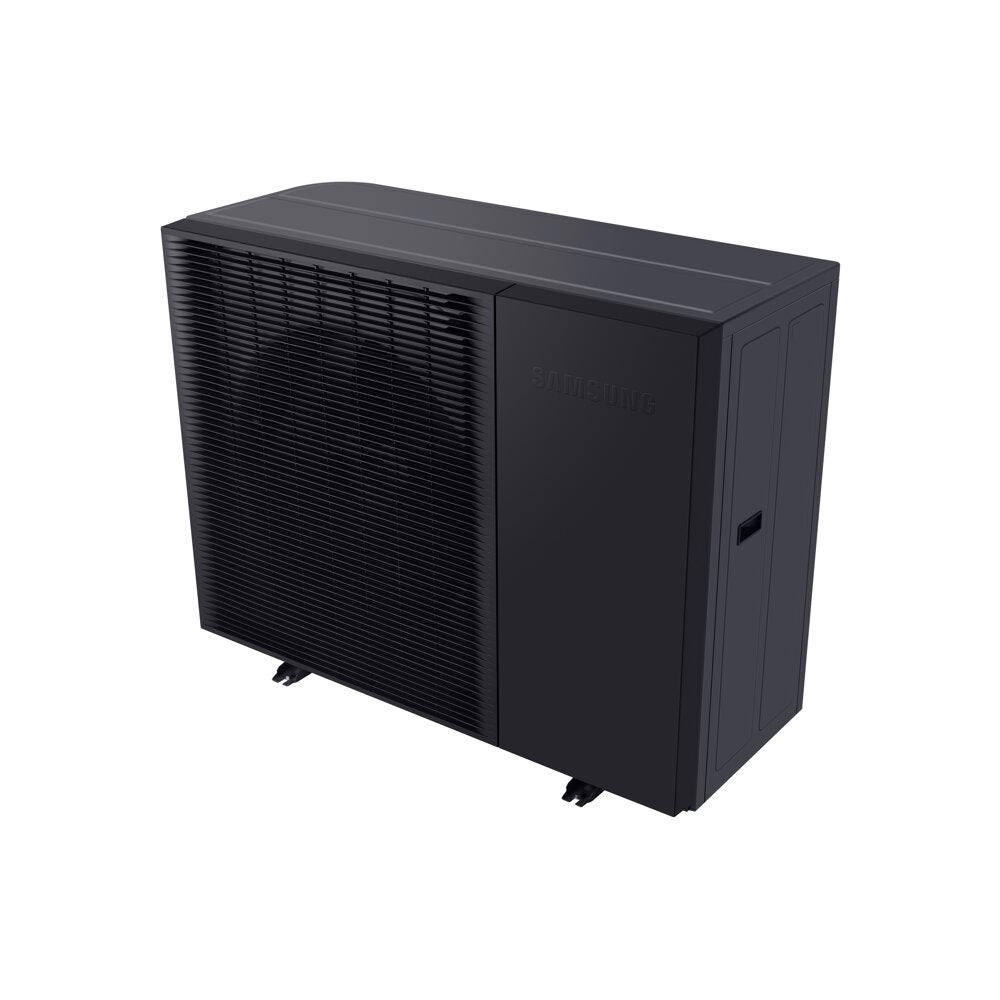

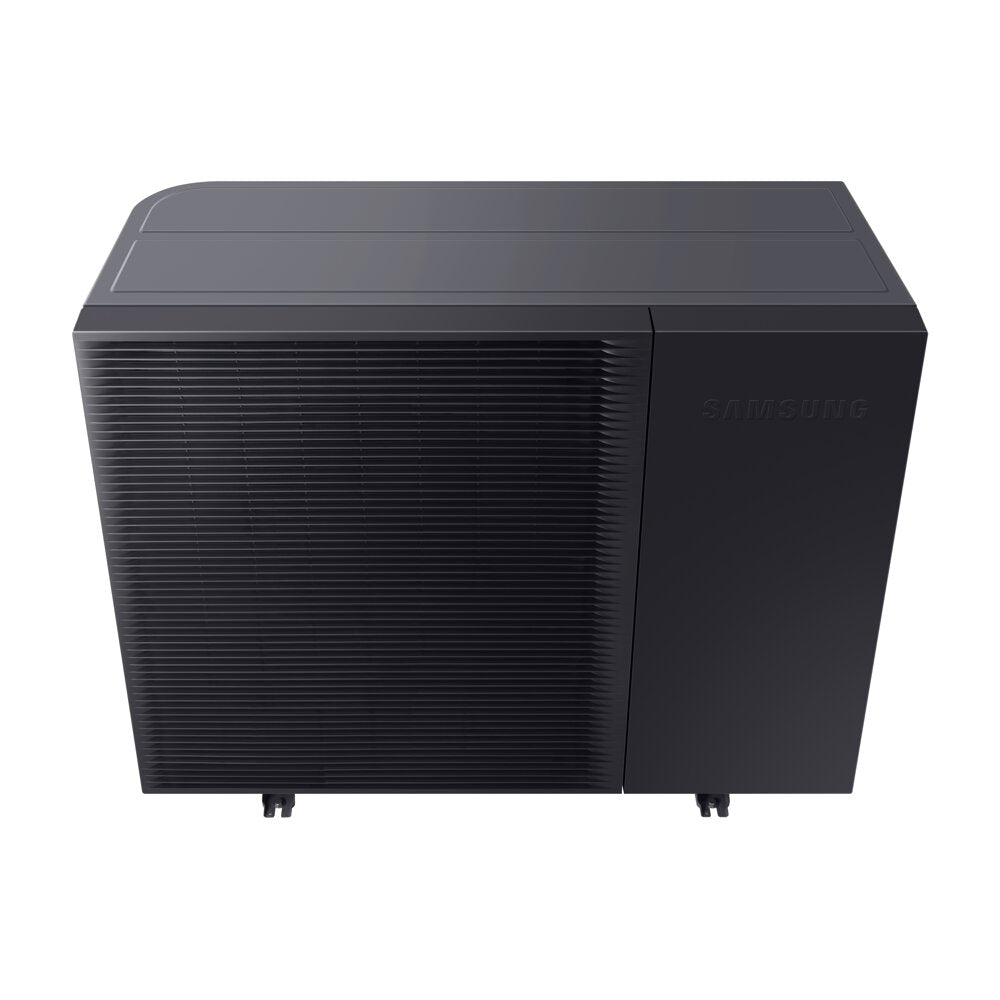

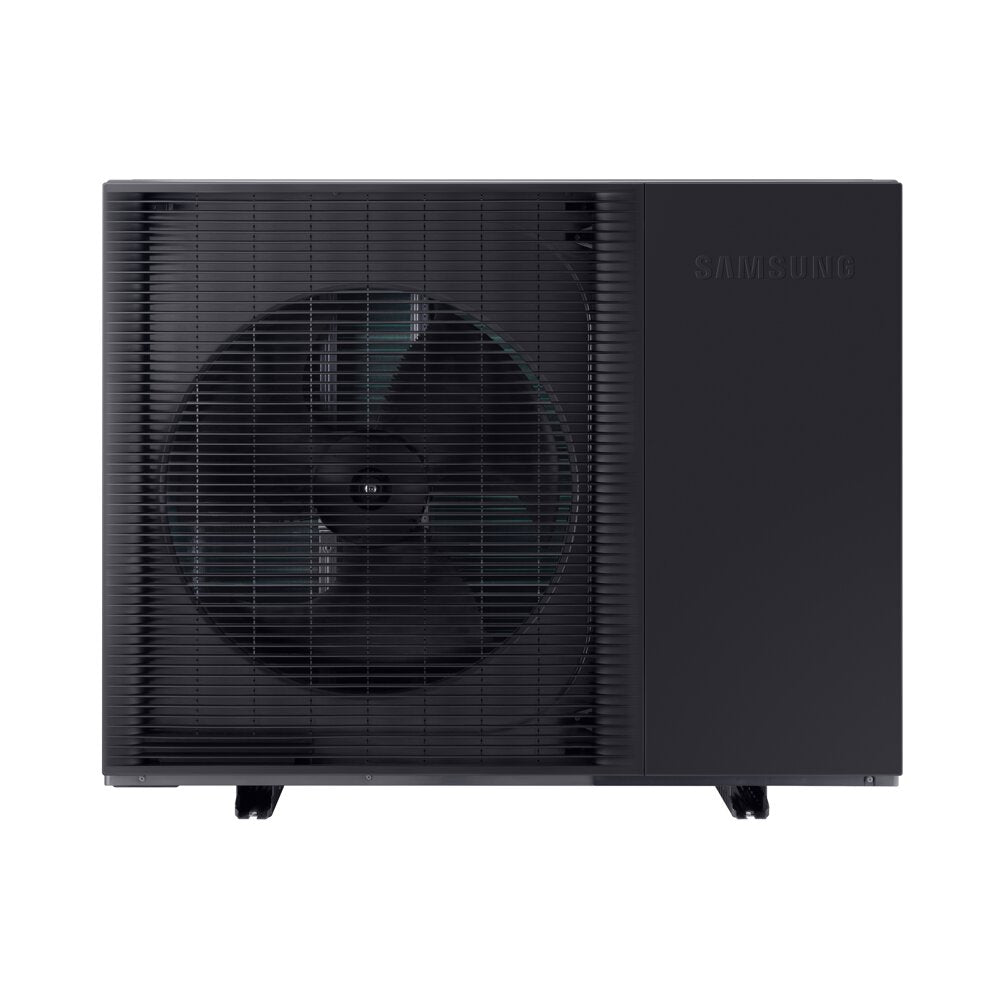

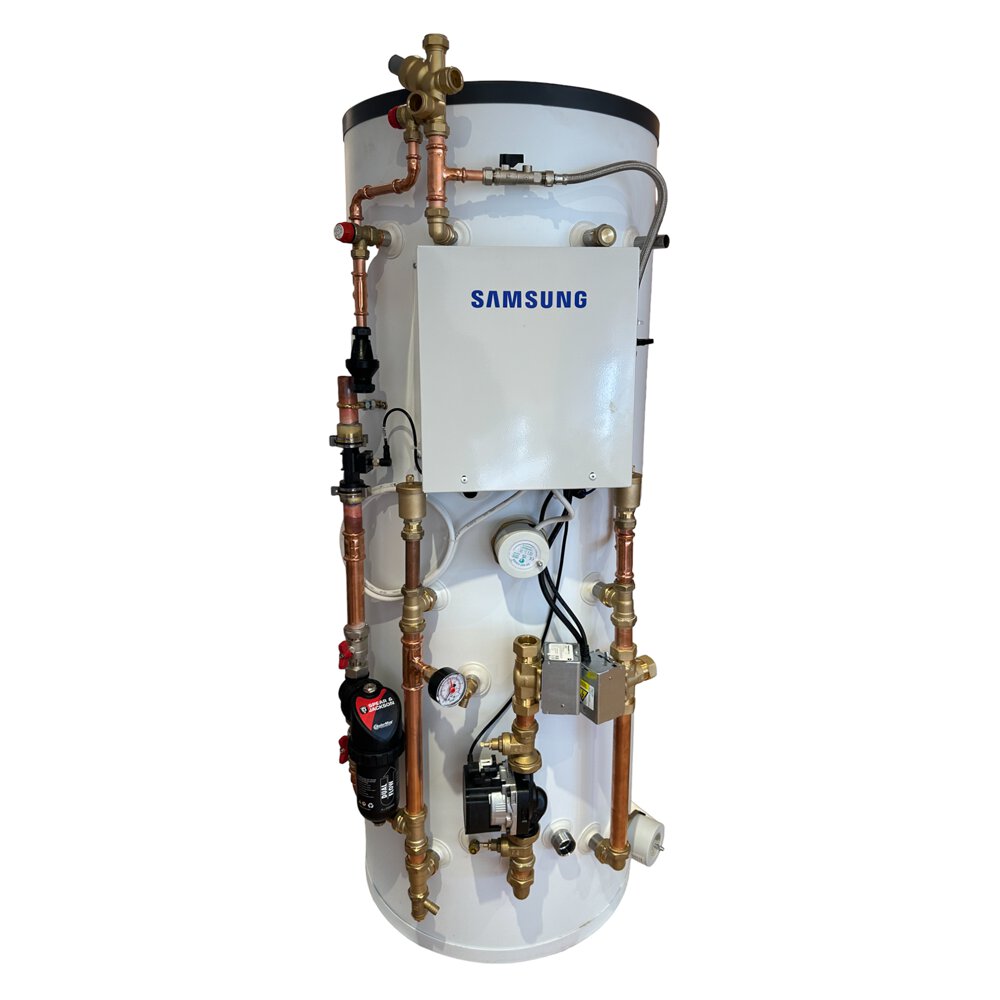

Samsung EHS 12.0kW Monoblock high temperature air source heat pump with 300L Pre plumbed air source heat pump cylinder with 50L buffer

Your price
£8,575.17
£10,290.20 inc VAT
Retail price
£10,290.20
Trade price
Log in or open a trade account for exclusive trade discounts and loyalty offers

Intuitive, colour screen touch controller. Energy monitoring through touch controller. PV and Smart Grid ready. 2-zone control suitable for under floor heating and radiators. SmartThings compatible with optional Wi-Fi kit.

Read more

system includes

Technical details

Classification

Brand

Samsung

Clasification

EHS

Category

Monoblock

Accessories

Space Heating Pump Included

Yes

Magnetic Filter

Yes

Efficiency

SEER

0.0

SCOP

4.9

ERP Rating

B

Noise rating

Outdoor Unit Sound (Power) (dB(A))

59dB(A)

Outdoor Unit Sound (Pressure) (dB(A))

46dB(A)

Output power

Cooling kW

0.0kW

Heating kW

12.0kW

UK Cooling kW

0.0kW

UK Heating kW

0.0kW

Sensible UK Cooling kW

0.0kW

Immersion heater Duty (kW)

3kW

Buffer Immersion Heater Duty (kW)

3kW

Maximum Flow Temperature (°c)

70°c

Maximum Hot Water Temperature (°c)

70°c

Power supply

Indoor Unit Power Source

Single Phase

Outdoor Unit Power Source

Three Phase

Indoor Unit Fuse Rating

3

Outdoor Unit Fuse Rating

17.7

Indoor Unit Max Running Current

1

Outdoor Unit Max Running Current

4.71

Product features

Refrigerant

R32

Re-Heat Time (min)

45min

Weights & dimensions

Pipe size (Liquid (mm))

0.0mm

Pipe size (Gas(mm))

0.0mm

Net Weight (kg)

0.0kg

Water Volume (L)

300l

Weight Empty (kg)

88.0kg

Weight Full (kg)

388.0kg

Unvented Expansion Vessel Volume (L)

24l

Buffer Vessel (L)

50l

Pipe Size (Water(mm))

28mm

Indoor Unit Width (mm)

550mm

Indoor Unit Depth (mm)

600mm

Indoor Unit Height (mm)

2020mm

Indoor Unit Weight (kg)

88.0kg

Outdoor Unit Width (mm)

1270mm

Outdoor Unit Depth (mm)

530mm

Outdoor Unit Height (mm)

1018mm

Outdoor Unit Weight (kg)

137.0kg
